6ES7972-0AA02-0XA0 SIMATIC DP RS485 Repeater Product Details

Part number

6ES7972-0AA02-0XA0

Brand

Siemens

Category

Communication & Networking

Product type

SIMATIC DP, RS485 repeater For connection of PROFIBUS/MPI bus systems with max

Lifecycle

Phase Out Announce

Dimensions

13.4 x 7.3 x 6.5 cm

Net weight

0.244 Kg

• Device type is classified as a SIMATIC DP RS485 repeater for industrial communication. Keep dimensions 13.4 x 7.3 x 6.5 cm and net weight 0.244 Kg unchanged while comparing project documents and product image evidence.
• Maximum supported baud rate is recorded as 12 Mbit/s for data transmission.
• Network capacity allows for a maximum of 31 nodes per connected segment.
• Physical dimensions are listed as 13.4 x 7.3 x 6.5 centimeters for space planning.
• Net weight is documented at 0.244 Kg for logistics and mounting considerations.
• Degree of protection rating is specified as IP20 for indoor environmental standards.

• Brand identifier is confirmed as Siemens for the SIMATIC product line. Use the source path communication-networking to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Part number 6ES7972-0AA02-0XA0 uniquely identifies this specific RS485 repeater model.
• Normalized part number format is 6ES79720AA020XA0 for database indexing purposes.
• Product classification falls under communication networking hardware components for industrial use.

Parameters are factual source fields retained for model review.

• Bus system application context includes PROFIBUS and MPI protocols for standard automation. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7972-0AA02-0XA0 record before publication.
• Node limit is strictly defined as a maximum of 31 devices per segment.
• Speed capability is capped at a maximum baud rate of 12 Mbit/s.
• Protection class IP20 indicates protection against solid objects larger than 12.5mm.
• Form factor dimensions allow for compact DIN rail or panel mounting solutions.

• Front view typically displays terminal blocks for RS485 cable connections. Review Siemens 6ES7972-0AA02-0XA0 as communication networking with source category communication-networking, recorded lifecycle Phase Out Announce, and submitted model identity.
• Side profile shows the compact rectangular housing with ventilation slots.

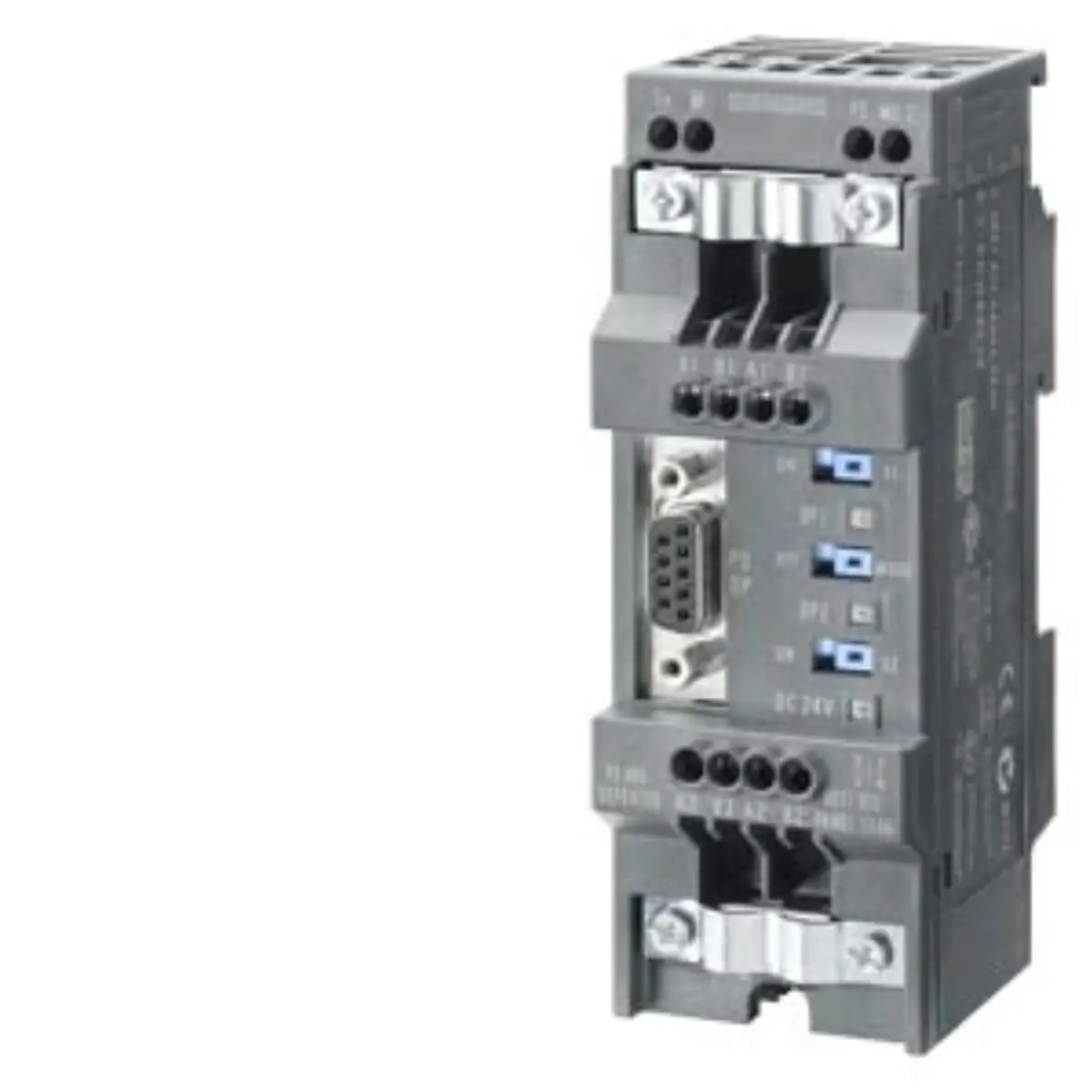

• Label area contains the full part number and Siemens branding clearly.
• Rear perspective may reveal mounting clips or screw holes for installation.

• Verify the exact part number matches your existing system documentation records. Keep dimensions 13.4 x 7.3 x 6.5 cm and net weight 0.244 Kg unchanged while comparing project documents and product image evidence.
• Confirm the required baud rate aligns with your current network specifications.
• Check node count requirements to ensure the 31-node limit is sufficient.
• Review physical space constraints against the 13.4cm length dimension provided.

• Lifecycle status is currently noted as Phase Out Announce for planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7972-0AA02-0XA0 record before publication.
• Source parameter review should confirm all technical values match project needs.
• Project document review is recommended before submitting detailed inquiry requests.
• Technical summary points provide a baseline for initial engineering assessment steps.
