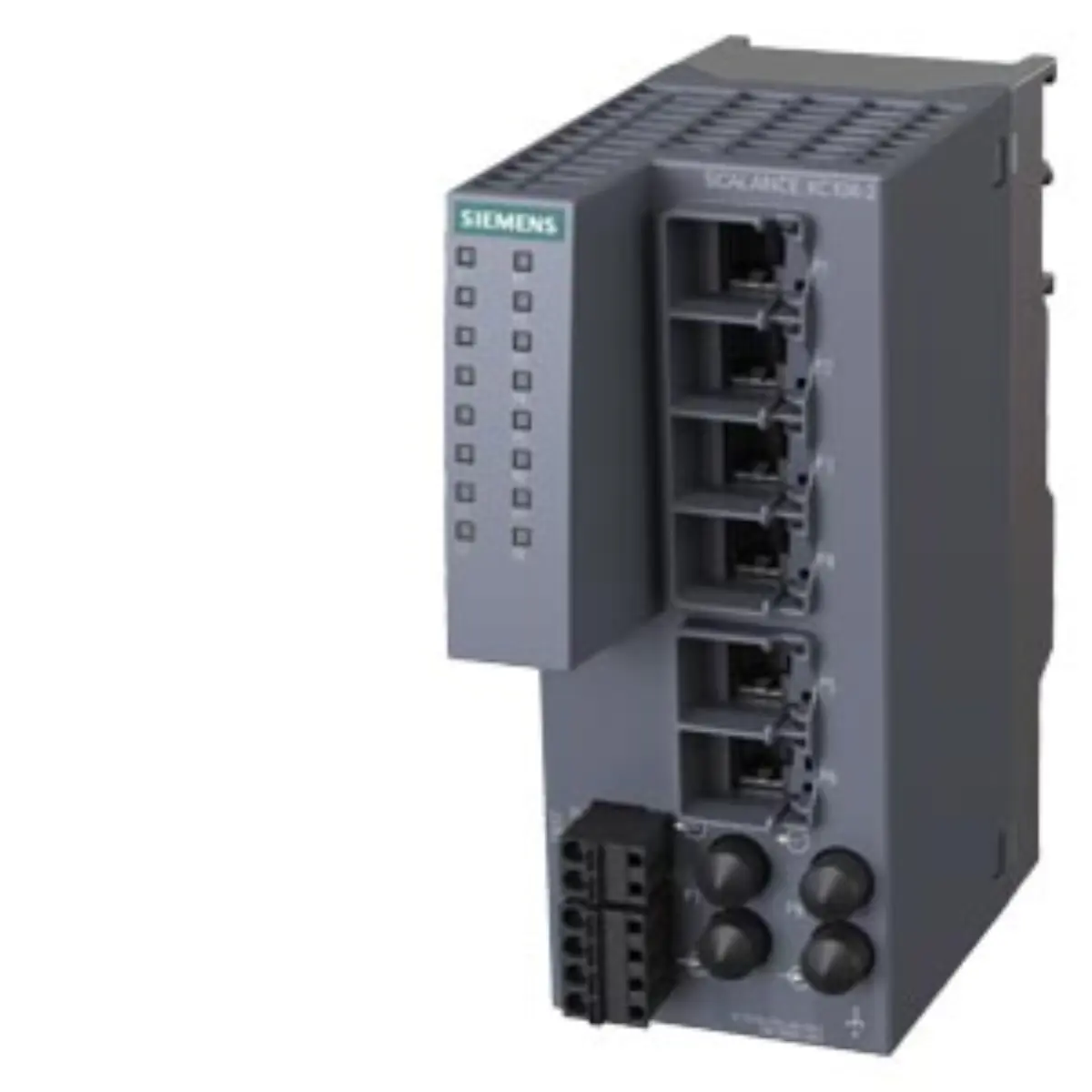

Siemens 6AG1106-2BB00-7AC2 Industrial Communication Unit

Part number

6AG1106-2BB00-7AC2

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Active Product

Dimensions

20.5 x 20.5 x 13.7 cm

Net weight

0.815 Kg

Source category

SIPLUS SCALANCE XC-100 unmanaged

• The device includes six 10/100 Mbps RJ45 ports for standard copper-based network connections. These ports facilitate straightforward integration into existing industrial Ethernet infrastructures.
• Two additional 100 Mbps multimode BFOC fiber optic ports offer extended reach capabilities. This hybrid port configuration supports diverse networking topologies effectively.
• Integrated LED diagnostics provide visual status updates for each active port connection. Operators can quickly identify link states and potential signal issues through these indicators.
• An error-signaling contact with a set pushbutton allows for immediate fault notification. This feature enables rapid response to critical network disruptions or hardware anomalies.
• The unit is classified as an Active Product within the manufacturer's current portfolio. This status indicates ongoing production and support for the specified hardware model.
• Physical dimensions are recorded at 20.5 x 20.5 x 13.7 centimeters for spatial planning. The net weight of 0.815 kilograms assists in load calculations for mounting structures.

• The base model originates from the 6GK5106-2BB00-2AC2 platform with enhanced environmental ratings. This lineage ensures application context with established SCALANCE XC106-2 functionalities.
• SIPLUS branding denotes specialized industrial-grade modifications beyond standard commercial equipment limits. The suffix 7AC2 identifies the specific regional or regulatory variant.
• Unmanaged switch classification implies automatic packet forwarding without complex configuration requirements. This simplifies deployment in straightforward network segments needing basic connectivity.
• Conformal coating application is a key differentiator for this particular part number iteration. It protects internal circuitry against moisture, dust, and corrosive agents.

Parameters are factual source fields retained for model review.

• Operating temperature range spans from -40 °C to +70 °C continuously. This wide thermal tolerance supports operation in unconditioned industrial enclosures or outdoor installations.
• Port speed specifications are fixed at 10 or 100 Mbps for all interfaces. Auto-negotiation handles link speed selection between connected devices automatically during initialization.
• Fiber optic connectivity utilizes multimode BFOC connectors for the two dedicated ports. This connector type is common in legacy and robust industrial fiber networks.
• Diagnostic feedback relies on physical LED indicators located on the front panel face. Each port has associated lights showing activity and link status clearly.
• Error signaling mechanism uses a dedicated contact output triggered by specific fault conditions. The set pushbutton allows manual acknowledgment or reset of the alarm state.

• Visual inspection should confirm the presence of six RJ45 ports on the primary interface side. These ports are typically arranged in a linear or grid pattern.
• Check for two BFOC fiber ports distinct from the copper connections on the unit. Their placement often differs to accommodate fiber cable bending radii.
• Verify LED positions correspond to each port for individual status monitoring accuracy. Clear labeling near these indicators aids in quick troubleshooting procedures.
• Ensure the error signaling contact terminals are accessible for wiring to control systems. Proper terminal identification prevents incorrect electrical connections during installation.

• Review project documentation to confirm environmental temperature extremes match the -40 to +70 °C rating. Mismatched conditions may require alternative housing or cooling solutions.
• Assess network topology requirements to determine if six copper and two fiber ports suffice. Additional ports might be needed for larger segment expansions.
• Examine mounting space constraints against the 20.5 x 20.5 x 13.7 cm dimensions. Ensure adequate clearance for cable routing and heat dissipation around the unit.
• Prepare technical specifications sheets highlighting the conformal coating benefits for harsh environment justification. This supports the selection rationale during internal approval processes.

• Confirm the product class B designation requires contacting the designated Siemens review contacts. This step ensures proper handling of review restrictions and logistical compliance.
• Validate that the normalized part number 6AG11062BB007AC2 matches the source documentation exactly. Discrepancies in numbering can lead to incorrect inquiry preparation or specification errors.
• Note that this is an unmanaged switch, meaning no software configuration interface exists. Network management must rely on higher-layer devices or physical diagnostics.
• Source parameter review should verify all physical and electrical characteristics against site requirements. Final approval depends on matching these technical details precisely.
