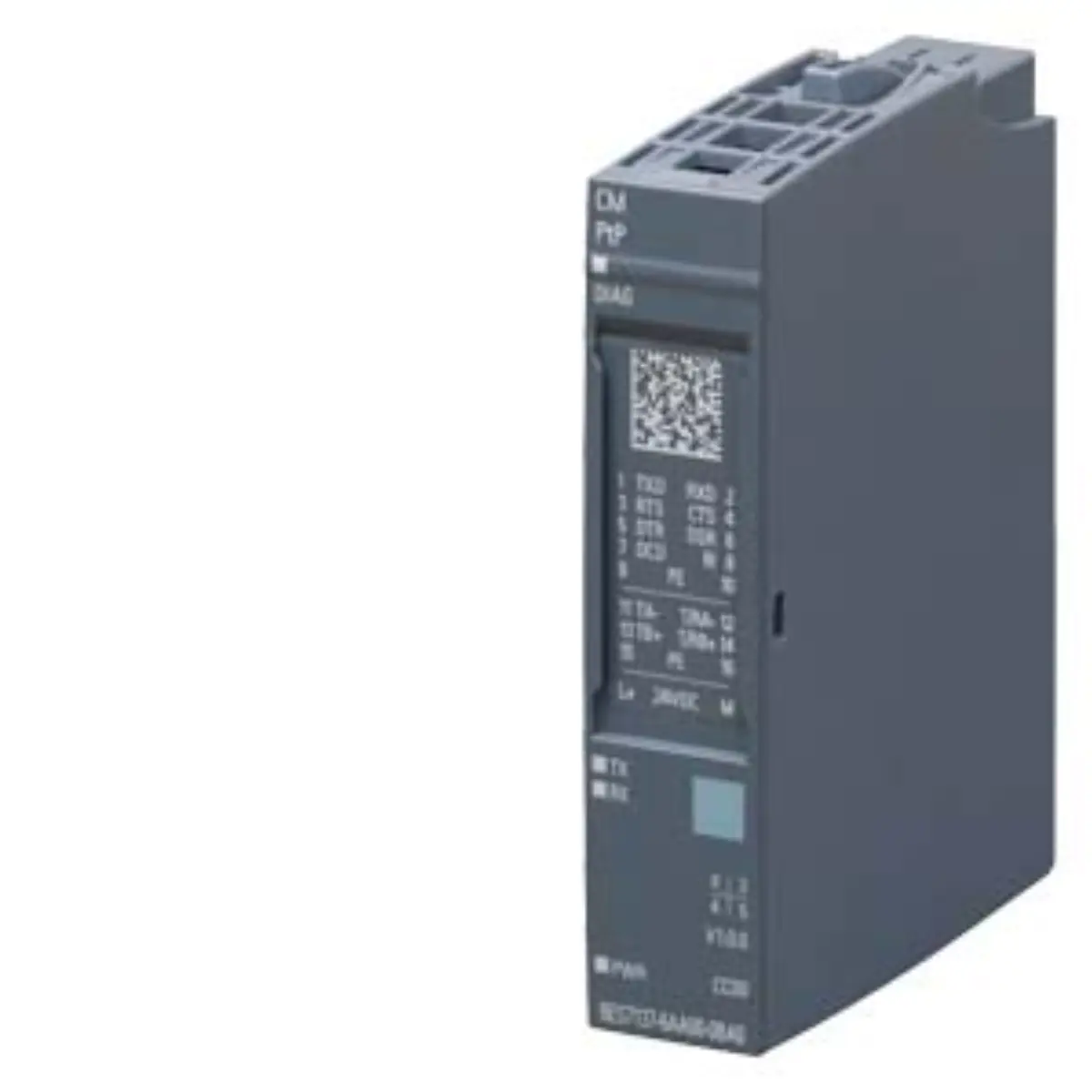

Siemens 6AG1137-6AA01-7BA0 Serial Interface Module Details

Part number

6AG1137-6AA01-7BA0

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Active Product

Dimensions

7.8 x 6.4 x 2.3 cm

Net weight

0.04 Kg

Source category

SIPLUS CM PtP serial interface

• Operates within a temperature range of -40°C to +70°C for extended environmental resilience. Keep dimensions 7.8 x 6.4 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• Supports RS-422, RS-485, and RS-232 serial connection standards for diverse hardware integration.
• Enables Freeport, 3964(R), USS, and MODBUS RTU master and slave protocol implementations.
• Achieves maximum transmission speeds up to 250 Kbit/s for efficient data throughput.
• Physical dimensions measure 7.8 x 6.4 x 2.3 cm for compact panel mounting.
• Net weight is recorded at 0.04 Kg, facilitating easy handling during installation procedures.

• Part number 6AG1137-6AA01-7BA0 identifies the specific SIPLUS variant with enhanced durability. Use the source path Automation technology / SIPLUS communication / SIPLUS CM PtP serial interface to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Normalized identifier 6AG11376AA017BA0 is used for database indexing and reference tracking.
• Brand designation Siemens confirms the manufacturer origin and quality standard compliance.
• Product class B indicates restricted review notes requiring direct review contacts contact for handling.

Parameters are factual source fields retained for model review.

• Verify the required serial protocol matches the connected device specifications before submission. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1137-6AA01-7BA0 record before publication.
• Confirm ambient temperature ranges align with the -40°C to +70°C operational limits.
• Check physical space constraints against the 7.8 x 6.4 x 2.3 cm footprint.
• Ensure power supply characteristics meet the module electrical requirements for stable operation.
• Review cable length limitations for RS-485 connections to maintain signal integrity.

• Inspect the module label for clarity and correct part number printing accuracy. Review Siemens 6AG1137-6AA01-7BA0 as Communication & Networking with source category SIPLUS CM PtP serial interface, recorded lifecycle Active Product, and submitted model identity.
• Examine the connector pins for any visible damage or manufacturing defects.
• Check the conformal coating coverage for uniform application across the circuit board.
• Verify the housing integrity for cracks or signs of previous environmental exposure.

• Gather all relevant project documentation specifying the communication protocol requirements clearly. Keep dimensions 7.8 x 6.4 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• Prepare technical drawings showing the intended mounting location and spatial constraints.
• List the connected devices and their respective serial interface specifications for review.
• Define the environmental conditions where the module will operate to confirm suitability.

• Cross-reference the lifecycle status to ensure continued production support for the item.
• Validate the product class restrictions to understand the review process limitations fully.
• Compare the technical parameters against existing system infrastructure for integration feasibility.
• Document any specific customer requirements that may influence the final selection decision.
