Siemens 6ES7648-2CF10-1BA0 PROFINET Driver Specification

Part number

6ES7648-2CF10-1BA0

Brand

Siemens

Category

Communication & Networking

Product type

PROFINET driver

Lifecycle

Active Product

Dimensions

20.1 x 14.4 x 5.5 cm

Net weight

0.287 Kg

Source category

PROFINET driver

• This unit operates as a PCIe card, integrating directly into host computer systems via standard expansion slots. Keep dimensions 20.1 x 14.4 x 5.5 cm and net weight 0.287 Kg unchanged while comparing project documents and product image evidence.
• It supports PROFINET IRT, ensuring deterministic data transmission for time-critical industrial automation tasks and processes.
• The device is classified as a development board, indicating its role in testing and configuration phases of deployment.
• External power supply connections are required, as the unit does not draw power solely from the PCIe slot.
• COM2 port accessibility is provided on the board, allowing for additional serial communication or diagnostic interfaces.
• LED indicators are present on the external housing to display operational status and network activity levels clearly.

• The brand identifier for this component is Siemens, a recognized name in industrial automation hardware manufacturing.
• The specific product type is designated as a PROFINET driver, defining its primary network communication function.
• Lifecycle status is recorded as Active Product, meaning it remains in current production or support cycles.
• The product class indicates items made to request based on customer specifications, involving dedicated engineering services.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 20.1 x 14.4 x 5.5 cm, providing spatial requirements for installation planning.
• Net weight is recorded at 0.287 Kg, which assists in logistics calculations and handling procedures for the unit.
• Source categorization places this item under I/O systems and specifically within the PROFINET components sub-group.
• The part number 6ES7648-2CF10-1BA0 serves as the unique identifier for tracking and specification reference purposes.
• Normalized part number format 6ES76482CF101BA0 may be used for database indexing or automated system searches.

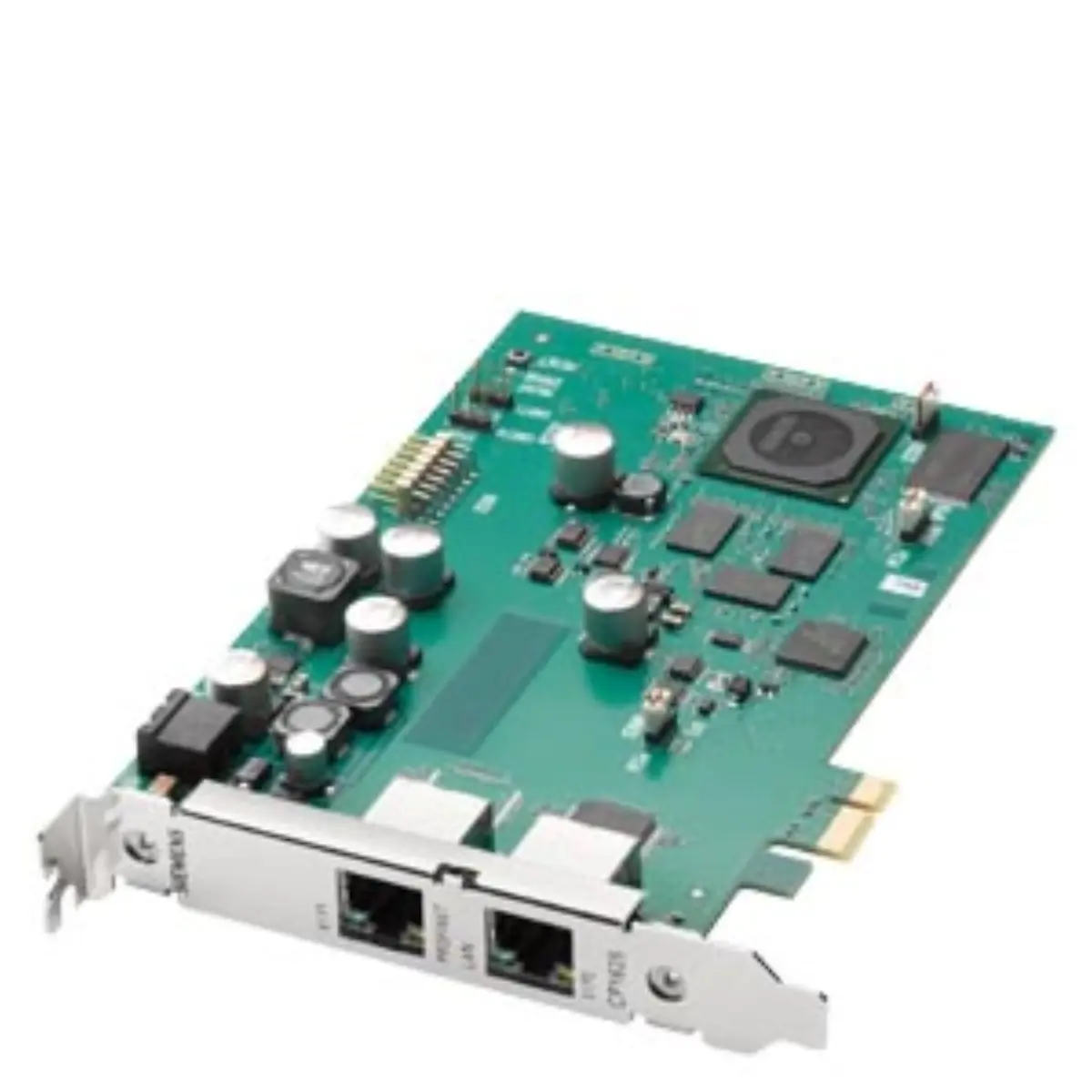

• Visual documentation should highlight the PCIe connector edge to confirm physical interface application context with host systems.
• External power input terminals must be visible to verify the requirement for separate power supply connections.
• LED indicator locations should be clearly shown to assist in understanding status monitoring during operation phases.
• COM2 port positioning needs to be identifiable for cable management and peripheral connection planning considerations.

• Review project documents to confirm that the host system possesses an recorded PCIe expansion slot.
• Verify that external power supply units meet the voltage and current requirements specified for this board.
• Assess engineering service needs, as the product class suggests customization or specific configuration may be involved.
• Ensure PROFINET IRT network infrastructure is in place to fully utilize the deterministic capabilities of this driver.

• Confirm that the engineering services required for this make-to-request item align with project timelines.
• Check that the physical dimensions fit within the designated enclosure or rack space for the installation.
• Validate that the external power and COM2 requirements are integrated into the overall system design plan.
• Ensure the PROFINET IRT protocol support matches the specific real-time communication needs of the application.
