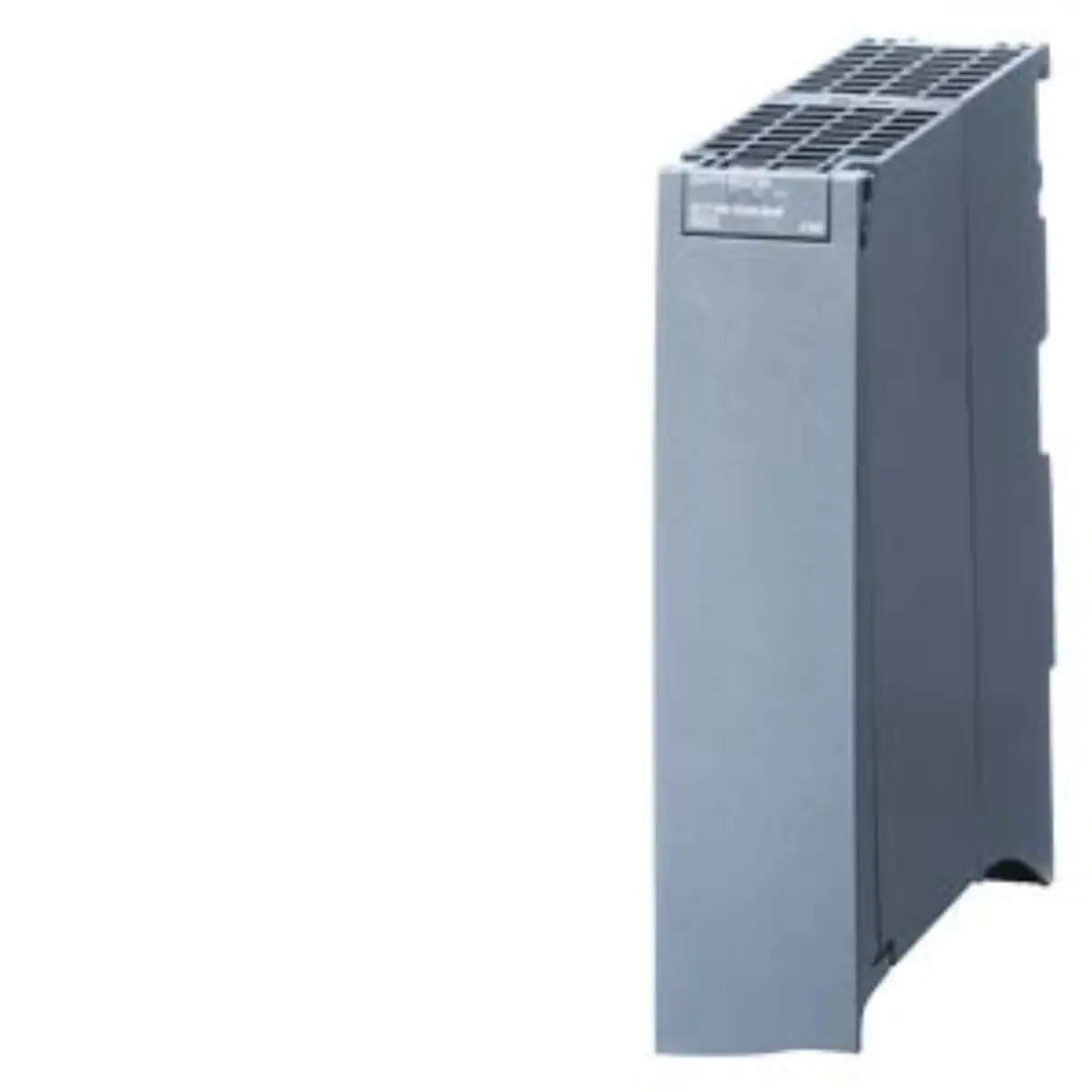

Siemens 6AG2541-1AB00-4AB0 Communication Module Details

Part number

6AG2541-1AB00-4AB0

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Phase Out Announce

Dimensions

15.6 x 14.6 x 4.6 cm

Net weight

0.272 Kg

Source category

SIPLUS extreme RAIL CM PtP

• Supports Freeport, 3964 (R), USS, and MODBUS RTU master and slave protocols for flexible integration. Keep dimensions 15.6 x 14.6 x 4.6 cm and net weight 0.272 Kg unchanged while comparing project documents and product image evidence.
• Features a 115200 Kbit/s baud rate capability for efficient serial data communication across networks.
• Utilizes a 15-Pin D-sub socket connector for secure physical interface attachment to external devices.
• Operates within a wide temperature range of -40°C to +70°C for extreme environmental conditions.
• Includes Overtemperature Class OT4 protection with ST1/2 rating allowing 85°C for ten minutes.
• Physical dimensions measure 15.6 x 14.6 x 4.6 cm with a net weight of 0.272 Kg.

• Identified as part of the SIPLUS extreme RAIL communication product family line. Use the source path SIPLUS extreme RAIL communication / SIPLUS extreme RAIL CM PtP to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Specifically categorized under SIPLUS extreme RAIL CM PtP series modules for point-to-point links.
• Represents the TX variant of the S7-1500 series communication module hardware configuration.
• Distinguished by its extended temperature rating and protective conformal coating application layer.

Parameters are factual source fields retained for model review.

• Verify the required protocol support matches your system needs for MODBUS RTU or USS. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2541-1AB00-4AB0 record before publication.
• Confirm the 15-Pin D-sub socket alignment with your existing cable assembly specifications.
• Check that the operating temperature range meets the environmental conditions of your installation site.
• Review the baud rate limitations to ensure application context with your connected peripheral devices.
• Assess the physical footprint constraints against your rack mounting space requirements accurately.

• Inspect the front panel labeling to confirm the exact part number printed clearly. Review Siemens 6AG2541-1AB00-4AB0 as Communication & Networking with source category SIPLUS extreme RAIL CM PtP, recorded lifecycle Phase Out Announce, and submitted model identity.
• Examine the 15-Pin D-sub socket for any visible signs of physical damage or wear.
• Check the conformal coating coverage on the circuit board edges for uniform application quality.
• Verify the rail mounting clips are intact and undamaged for secure rack installation procedures.

• Prepare your project documentation specifying the required communication protocols and baud rates needed.
• Gather details regarding the environmental conditions where the module will be installed permanently.
• List any specific cable assemblies or adapters required for the 15-Pin D-sub interface.
• Note the current lifecycle status as Phase Out Announce for your inquiry preparation planning records.

• The product class indicates review restrictions; contact your designated Siemens review contacts for handling.
• Lifecycle status shows Phase Out Announce, so review long-term supply chain implications carefully.
• Ensure all technical parameters align with your system design before submitting the inquiry form.
• Reference the normalized part number 6AG25411AB004AB0 when discussing this item with inquiry team.
