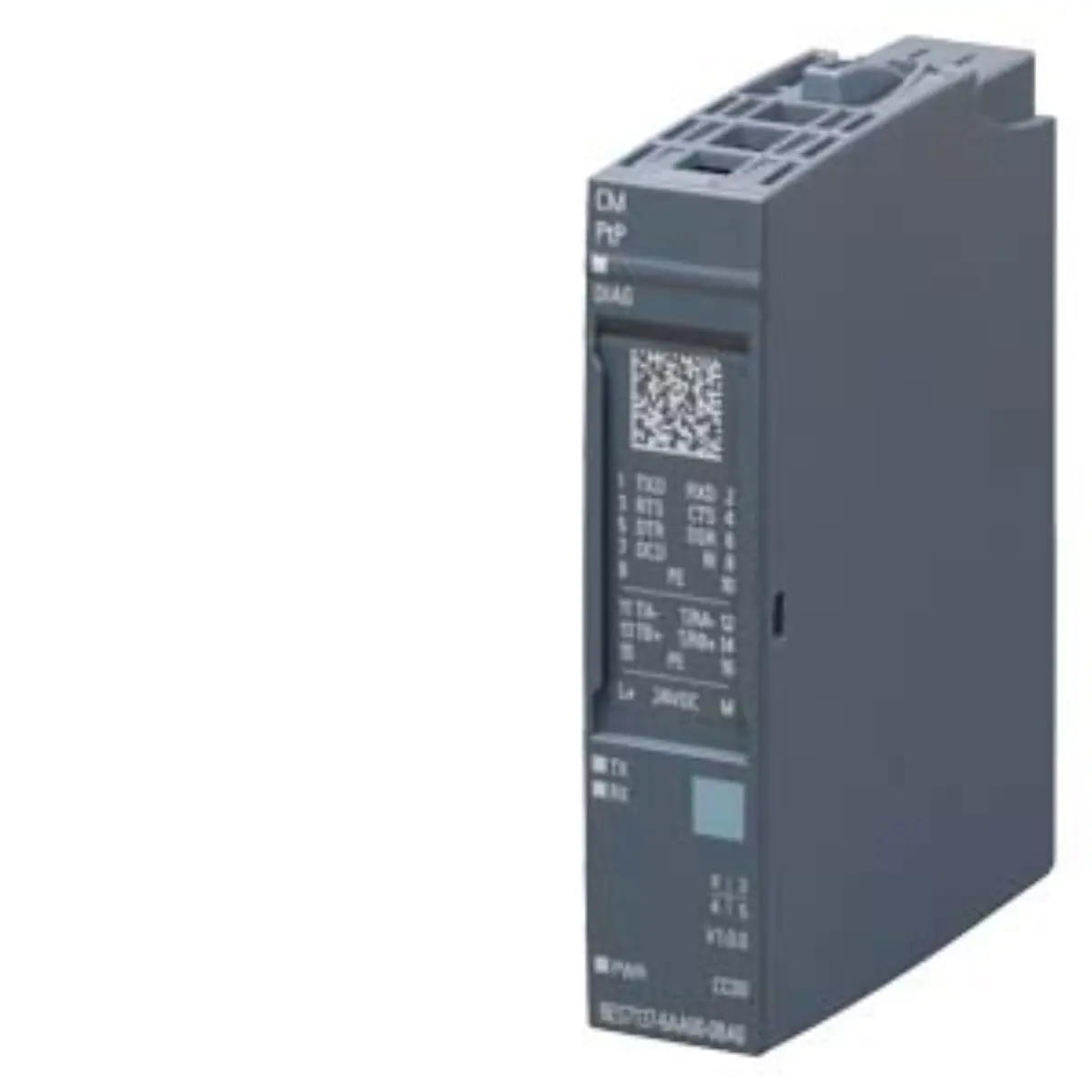

Siemens 6AG2137-6AA01-4BA0 Communication Module Details

Part number

6AG2137-6AA01-4BA0

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Active Product

Dimensions

7.8 x 6.4 x 2.3 cm

Net weight

0.04 Kg

Source category

SIPLUS extreme RAIL CM PtP serial interface

• Supports serial connections via RS-422, RS-485, and RS-232 interfaces for versatile communication needs. Keep dimensions 7.8 x 6.4 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• Enables Freeport, 3964(R), USS, and MODBUS RTU master and slave protocols for flexible integration.
• Operates reliably within an extended temperature range of -40°C to +70°C for extreme environments.
• Features overload tolerance OT4 with ST1/2 capability, allowing temperatures up to +85°C for ten minutes.
• Maximum transmission speed reaches 250 Kbit/s ensuring efficient data transfer for serial communication tasks.
• Physical dimensions measure 7.8 x 6.4 x 2.3 cm with a net weight of 0.04 Kg.

• Based on the SIPLUS extreme RAIL CM PtP serial interface platform for enhanced reliability. Use the source path SIPLUS extreme RAIL communication / SIPLUS extreme RAIL CM PtP serial interface to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Derived from the base model 6ES7137-6AA01-0BA0 with added protective conformal coating layers.
• Categorized under Active Product lifecycle status indicating current manufacturing and specification review details.
• Classified as Product Class B requiring direct contact with Siemens review contacts for handling.

Parameters are factual source fields retained for model review.

• Verify the required serial protocol support matches your specific application needs before proceeding. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2137-6AA01-4BA0 record before publication.
• Confirm that the operating environment temperature falls within the specified -40 to +70 degree range.
• Check if the maximum baud rate of 250 Kbit/s meets your data transmission requirements.
• Ensure physical space constraints accommodate the compact dimensions of the communication module unit.
• Review the net weight specification for logistics planning and mounting hardware selection considerations.

• Inspect the product label for the exact part number 6AG2137-6AA01-4BA0 verification.
• Check the connector types visible in the image for RS-422/485/232 interface alignment.
• Observe the housing construction to confirm the presence of conformal coating protection features.
• Review the overall form factor to ensure it fits within standard ET 200SP racks.

• Gather all relevant project documents specifying the required serial communication protocols and speeds.
• Prepare details regarding the environmental conditions where the module will be installed.
• Document any specific mounting or integration requirements for the ET 200SP system.
• Have the exact part number 6AG2137-6AA01-4BA0 ready for reference in your submission.

• Source parameter review indicates this is a specialized variant of the standard CM PtP.
• Project document review should confirm the necessity of the extended temperature rating features.
• Technical specifications align with SIPLUS extreme standards for harsh environment industrial applications.
• Contact your designated Siemens review contacts for further assistance with this specific product class.
