Siemens 6AG1542-5DX10-7XE0 SIPLUS NET CM 1542-5 Communications Module

Part number

6AG1542-5DX10-7XE0

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Active Product

Dimensions

15.00 x 15.00 x 4.00 cm

Net weight

0.382 Kg

Source category

SIPLUS NET CM 1542-5

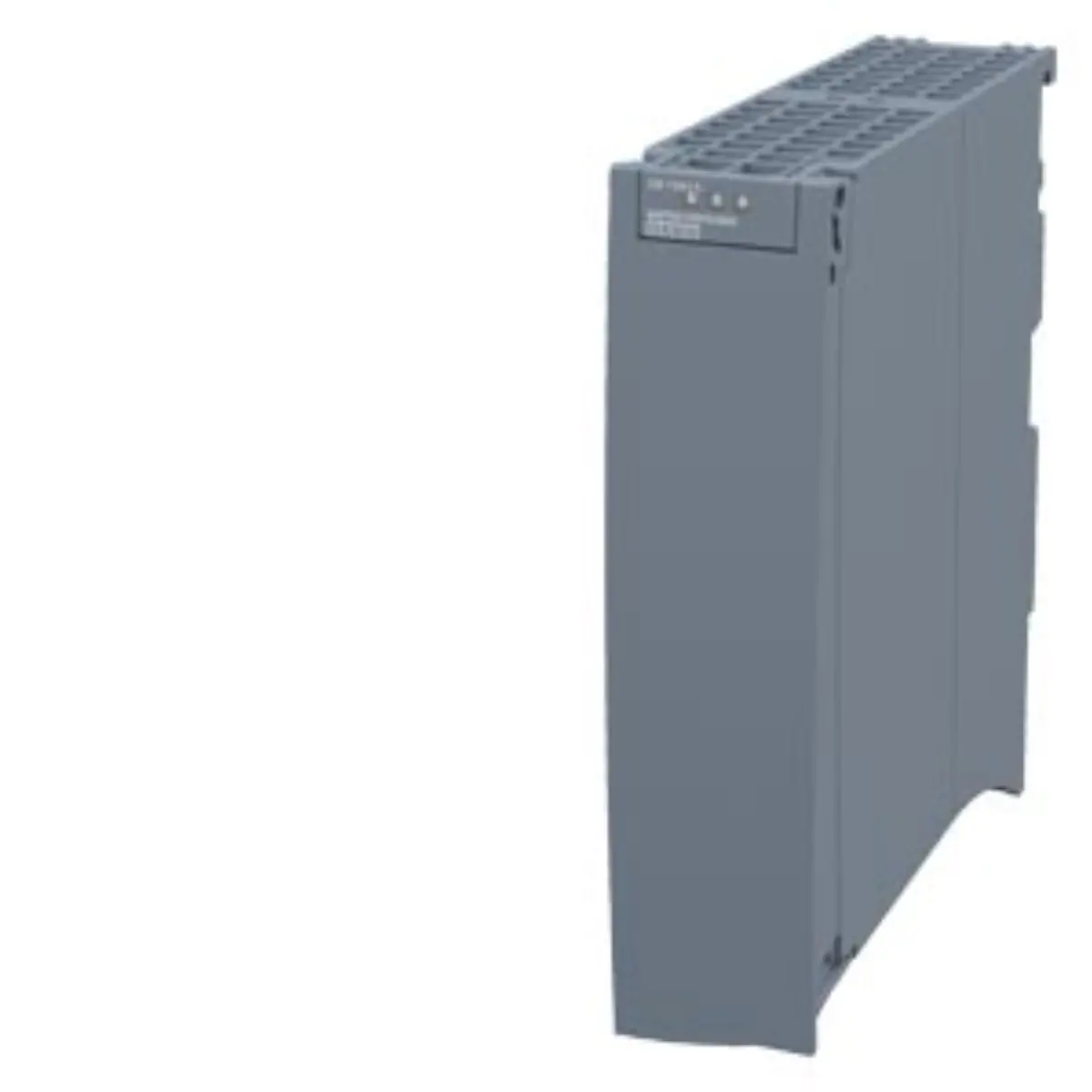

• This module enables connection of S7-1500 controllers to PROFIBUS DP networks as both master and device. Keep dimensions 15.00 x 15.00 x 4.00 cm and net weight 0.382 Kg unchanged while comparing project documents and product image evidence.
• It supports S7 and PG/OP communication protocols for efficient programming and operator interface interactions.
• Time-of-day synchronization capabilities are integrated to ensure precise timing across distributed automation systems.
• Advanced diagnostics functions allow for continuous monitoring and rapid identification of network communication issues.
• The unit operates within a wide ambient temperature range of -40°C to +70°C for extreme environments.
• Startup functionality is maintained at temperatures as low as -25°C ensuring reliable initialization procedures.

• The part number 6AG1542-5DX10-7XE0 identifies the specific SIPLUS variant with enhanced environmental protection. Use the source path Automation technology / SIPLUS communication / SIPLUS NET CM 1542-5 to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model belongs to the SIPLUS NET CM 1542-5 series within the broader automation portfolio.
• The designation indicates active product status with specific review restrictions noted in classification B.
• Source categorization places this item under Automation technology and SIPLUS communication sub-segments.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.00 x 15.00 x 4.00 cm for spatial planning purposes. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1542-5DX10-7XE0 record before publication.
• Net weight is listed at 0.382 Kg, aiding in logistics and handling assessments for projects.
• The lifecycle status is confirmed as Active Product, indicating current production and support review details.
• Product class B notes require contacting designated Siemens review contacts for specific handling and review queries.
• Conformal coating specification provides additional protection against moisture, dust, and corrosive industrial atmosphere elements.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components.
• Check labeling for the exact part number 6AG1542-5DX10-7XE0 to verify model identity accurately.
• Examine connector ports for PROFIBUS DP interface integrity before initiating any network configuration steps.
• Review physical condition for any signs of damage that might affect operational performance standards.

• Prepare project documentation specifying required PROFIBUS DP master and device roles for system integration.
• Document environmental conditions including maximum and minimum temperatures to validate operational suitability criteria.
• List connected S7-1500 CPU models to ensure application context with the communications module interface.
• Include time-of-day synchronization requirements in the inquiry to address precision timing needs.

• Verify that the inquiry includes all necessary technical parameters for accurate inquiry team assessment.
• Ensure project requirements align with the specified -40...+70 °C operating temperature range limits.
• Confirm understanding of review restriction class B when preparing documentation for submission processes.
• Cross-reference the base model 6GK7542-5DX10-0XE0 to understand foundational features of this SIPLUS variant.
