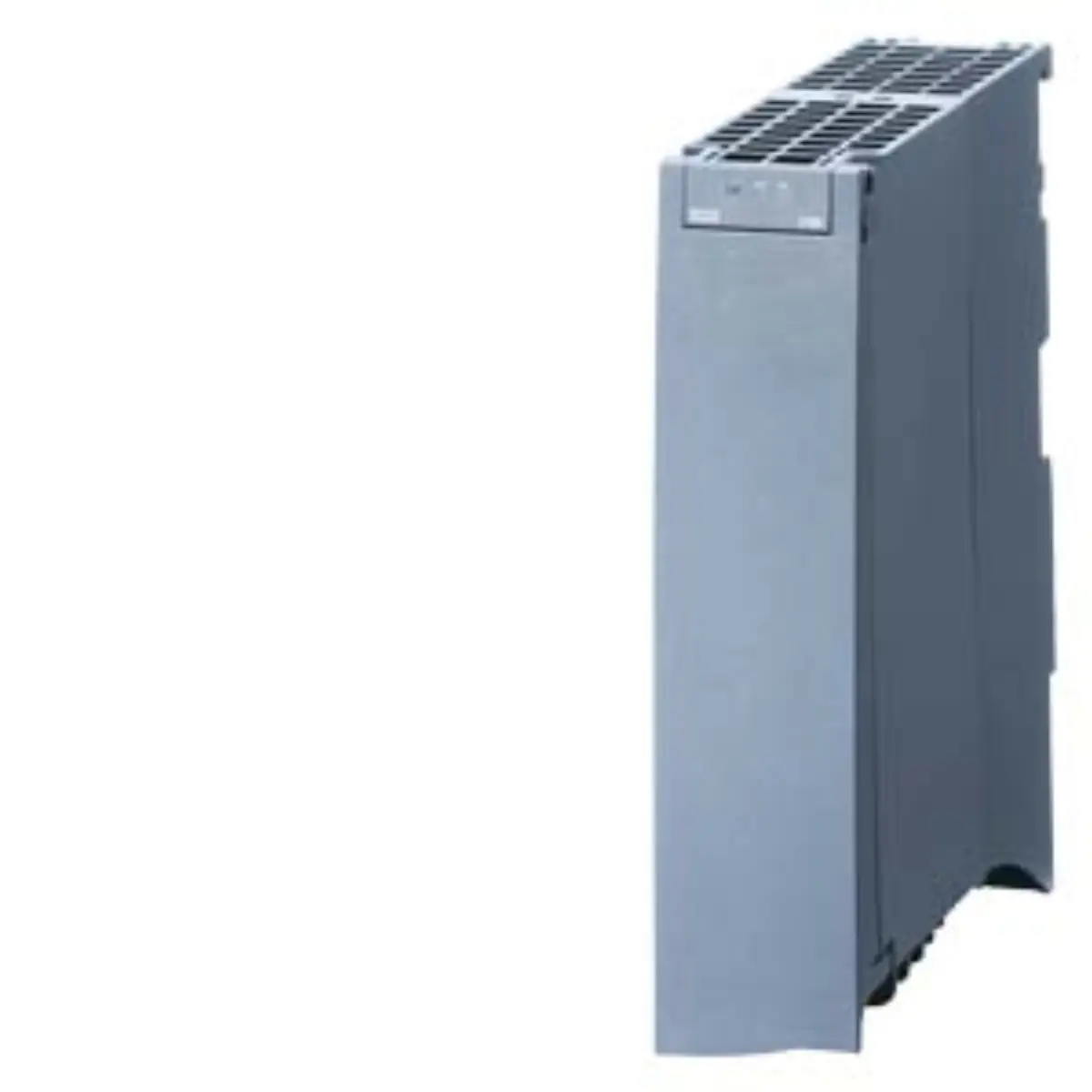

6AG1505-0RA00-7AB0 SIPLUS System Power Supply

Part number

6AG1505-0RA00-7AB0

Brand

Siemens

Category

Power Supplies

Product type

Power Supplies

Lifecycle

Active Product

Dimensions

15.8 x 15.6 x 8.00 cm

Net weight

0.5 Kg

Source category

SIPLUS system power supplies

• Input voltage ranges include 24, 48, and 60 volts direct current. Keep dimensions 15.8 x 15.6 x 8.00 cm and net weight 0.5 Kg unchanged while comparing project documents and product image evidence. Keep dimensions 15.8 x 15.6 x 8.00 cm and net weight 0.5 Kg unchanged while comparing project documents and product image evidence.
• Output power capacity is rated at sixty watts for system loads.
• Operating temperature spans from minus forty to plus seventy degrees Celsius.
• Startup capability is maintained at temperatures down to minus twenty-five degrees.
• Physical dimensions measure approximately fifteen point eight by fifteen point six centimeters.
• Net weight is recorded at zero point five kilograms for handling purposes.

• Part number 6AG1505-0RA00-7AB0 identifies the specific SIPLUS variant. Use the source path Automation technology / SIPLUS power supplies / SIPLUS system power supplies to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is based on the reference design 6ES7505-0RA00-0AB0.
• Lifecycle status is listed as an active product for current projects.
• Product class indicates review restrictions requiring contact with Siemens review contacts.

Parameters are factual source fields retained for model review.

• Voltage input specifications support multiple DC levels for flexibility. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1505-0RA00-7AB0 record before publication.
• Thermal management allows operation in extreme cold and heat zones.
• Coating application meets standards for enhanced environmental protection requirements.
• Backplane bus supply ensures stable power distribution within the rack.
• Compact form factor fits standard DIN rail mounting configurations easily.

• Front view displays terminal blocks for electrical connection points. Review Siemens 6AG1505-0RA00-7AB0 as Power Supplies with source category SIPLUS system power supplies, recorded lifecycle Active Product, and submitted model identity.
• Side profile shows the compact housing dimensions for space planning.
• Label area contains the full part number for verification steps.
• Rear section highlights mounting clips for secure installation procedures.

• Verify the required input voltage range for your specific application. Keep dimensions 15.8 x 15.6 x 8.00 cm and net weight 0.5 Kg unchanged while comparing project documents and product image evidence.
• Confirm ambient temperature conditions match the extended rating specifications.
• Check if conformal coating is necessary for your environment.
• Prepare project documents detailing the S7-1500 system configuration needs.

• Ensure all technical parameters align with project design requirements. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1505-0RA00-7AB0 record before publication.
• Review the review note details before finalizing inquiry preparation decisions.
• Cross-reference the base model for additional technical documentation access.
• Submit inquiry with complete system context for accurate processing.
