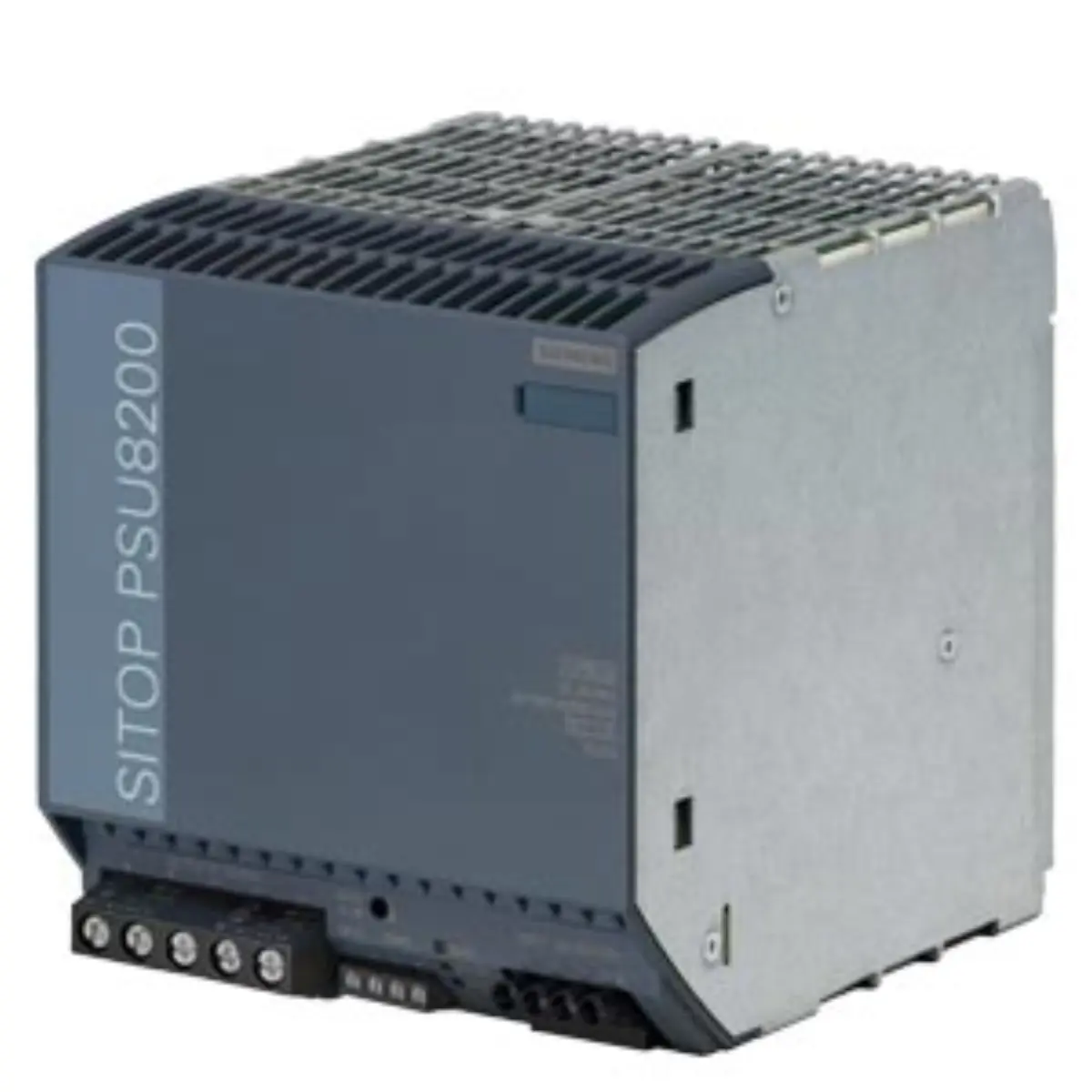

Siemens 6AG1437-8SB00-7AY0 Industrial Power Supply Details

Part number

6AG1437-8SB00-7AY0

Brand

Siemens

Category

Power Supplies

Product type

3-phase, 24 V DC

Lifecycle

Active Product

Dimensions

22.00 x 22.5 x 18.5 cm

Net weight

3.3 Kg

Source category

3-phase, 24 V DC

• Input voltage specification requires a three-phase alternating current between 400 and 500 volts. Keep dimensions 22.00 x 22.5 x 18.5 cm and net weight 3.3 Kg unchanged while comparing project documents and product image evidence.
• Output provides a stabilized direct current at 24 volts with a maximum current capacity of 40 amperes.
• Physical dimensions are recorded as 22.00 cm by 22.5 cm by 18.5 cm for mounting considerations.
• Net weight is listed at 3.3 kilograms, influencing handling and structural support requirements during installation.
• Conformal coating application ensures enhanced resistance against moisture, dust, and corrosive industrial atmospheres.
• Operating temperature range extends from -25°C to +70°C, accommodating extreme environmental fluctuations effectively.

• Base model reference links to the standard 6EP3437-8SB00-0AY0 configuration before specialized modifications. Use the source path Automation technology / SIPLUS PSU8200 / 3-phase, 24 V DC to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates enhanced environmental protection ratings beyond standard industrial power supply classifications.
• Three-phase input architecture distinguishes this unit from single-phase alternatives in the same series.
• Active product lifecycle status confirms current manufacturing and technical documentation review details for review.

Parameters are factual source fields retained for model review.

• Verify input voltage range matches site infrastructure capabilities before initiating detailed engineering assessments. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1437-8SB00-7AY0 record before publication.
• Confirm output current demand does not exceed 40 A to prevent overload conditions.
• Assess ambient temperature extremes to ensure compliance with the -25 to +70 C rating.
• Check physical space constraints against the 22x22.5x18.5 cm footprint for panel integration.
• Review weight distribution requirements for mounting structures supporting the 3.3 kg unit mass.

• Inspect terminal block markings for correct phase identification and grounding connection points. Review Siemens 6AG1437-8SB00-7AY0 as 3-phase, 24 V DC with source category 3-phase, 24 V DC, recorded lifecycle Active Product, and submitted model identity.
• Examine label details for serial numbers and manufacturing dates relevant to traceability records.
• Note conformal coating coverage areas to verify protection integrity against specified environmental factors.
• Check physical condition of connectors and housing for any signs of transport damage.

• Gather site electrical schematics showing three-phase 400-500 V AC supply characteristics.
• Document load requirements specifying total 24 V DC current consumption across all connected devices.
• Record environmental data including minimum and maximum expected operating temperatures for the installation zone.
• Prepare mechanical drawings indicating recorded mounting space and structural load-bearing capacity limits.

• Cross-reference technical data sheets with project specifications to ensure full alignment of parameters.
• Validate that the conformal coating meets industry standards for the specific chemical exposure risks.
• Confirm that the three-phase input requirement aligns with existing facility power distribution networks.
• Ensure all safety and regulatory documentation is reviewed prior to final inquiry preparation decisions.
