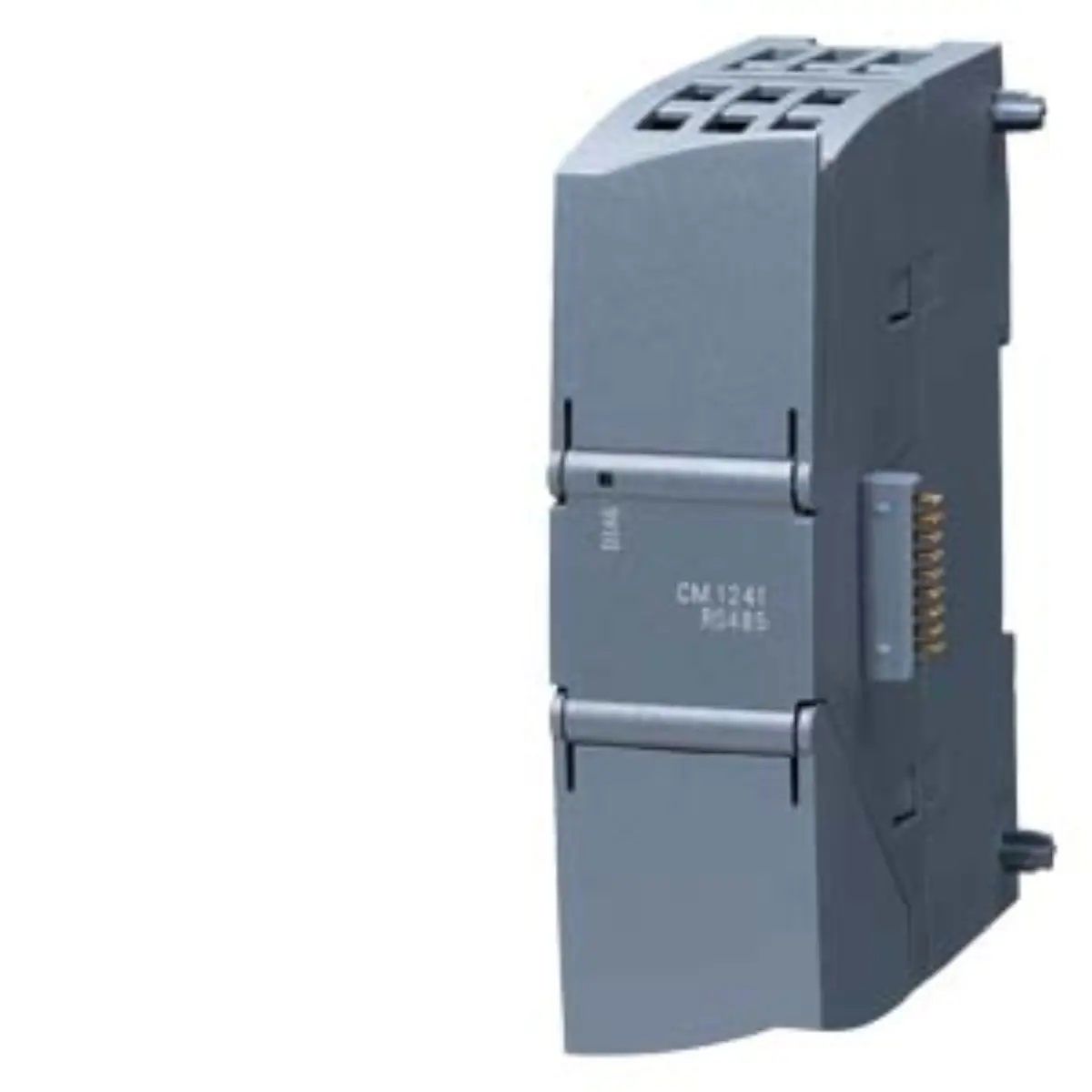

Siemens 6AG1241-1CH32-2XB0 SIPLUS CM 1241 Communications Module

Part number

6AG1241-1CH32-2XB0

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Active Product

Dimensions

11.00 x 8.8 x 6.00 cm

Net weight

0.155 Kg

Source category

SIPLUS CM 1241 communications modules

• The module operates within an extended temperature range of -40°C to +70°C, ensuring stability in extreme environmental conditions. Keep dimensions 11.00 x 8.8 x 6.00 cm and net weight 0.155 Kg unchanged while comparing project documents and product image evidence.
• Startup functionality is supported at temperatures as low as -25°C, allowing for reliable initialization during cold starts.
• Conformal coating is applied to the internal components, providing protection against moisture, dust, and corrosive agents.
• Serial communication interfaces include RS-422 and RS-485 standards, enabling versatile data transmission across industrial networks.
• The physical interface utilizes a 9-pin D-sub connector, offering a secure and standardized connection method for cabling.
• Freeport mode support allows for customized protocol implementation, giving engineers flexibility in defining communication parameters.

• The part number 6AG1241-1CH32-2XB0 identifies the specific SIPLUS variant of the standard CM 1241 module.
• This model is derived from the base part number 6ES7241-1CH32-0XB0, indicating its foundational hardware architecture.
• The SIPLUS designation signifies that the component meets extended environmental ratings beyond standard industrial specifications.
• Review the submitted model number to confirm alignment with project requirements for harsh environment communication needs.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 11.00 x 8.8 x 6.00 cm, fitting standard DIN rail mounting configurations.
• The net weight is listed as 0.155 Kg, contributing to minimal load impact on mounting structures.
• Lifecycle status is documented as Active Product, indicating ongoing manufacturing and technical support review details.
• Source parameter review confirms the module belongs to the SIPLUS communication category within automation technology.
• Category classification places this item under Communication & Networking, specifically within SIPLUS CM 1241 modules.

• Visual inspection should verify the presence of the 9-pin D-sub connector on the front panel.
• Check for labeling consistency with the part number 6AG1241-1CH32-2XB0 on the module housing surface.
• Examine the conformal coating integrity if visible, ensuring no cracks or peeling on internal circuitry.
• Confirm the physical form factor matches the recorded dimensions of 11.00 x 8.8 x 6.00 cm.

• Prepare project documentation specifying the required temperature range and environmental exposure levels for the installation site.
• Verify cable specifications to ensure they meet RS-422/485 standards and fit the 9-pin D-sub interface.
• Document any specific Freeport protocol requirements needed for custom communication implementations within the control system.
• Review system integration plans to confirm application context with existing S7-1200 PLC hardware and software versions.

• Ensure all technical specifications align with the operational demands of the intended industrial application environment.
• Cross-reference the part number with internal databases to confirm current technical documentation and revision levels.
• Assess the need for additional protective measures beyond the conformal coating based on specific site hazards.
• Validate that the Freeport mode capabilities meet the unique data exchange requirements of the control system.
