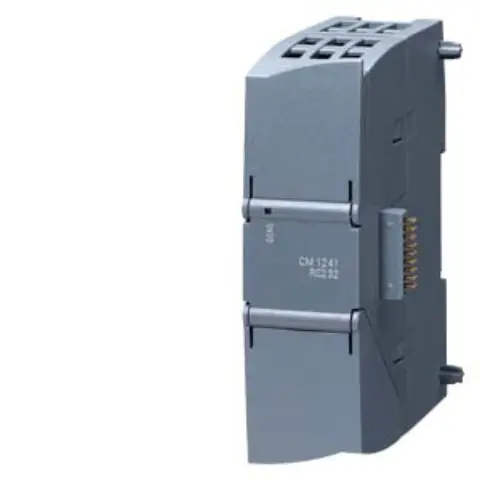

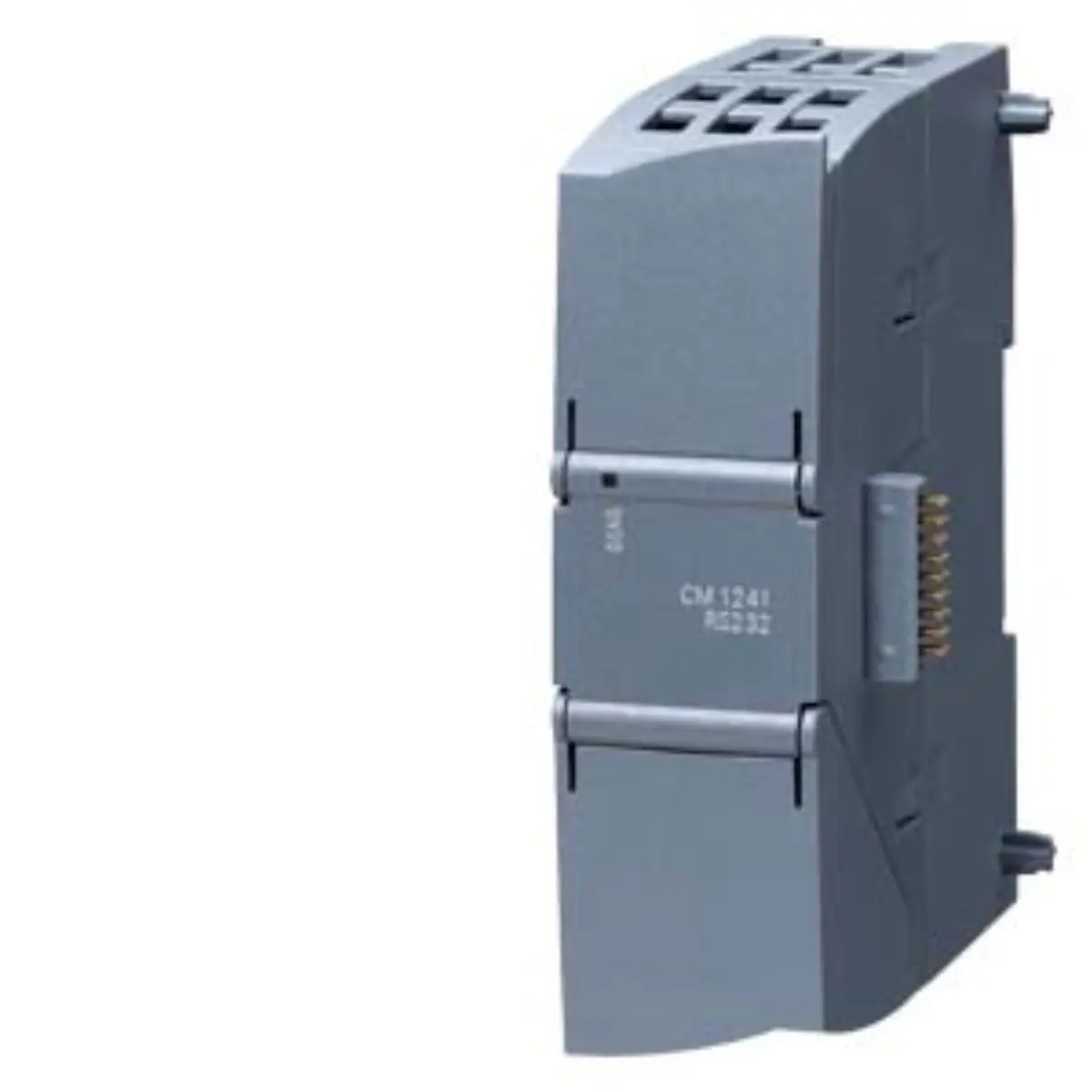

Siemens 6AG1241-1AH32-2XB0 SIPLUS CM 1241 RS-232 Communications Module

Part number

6AG1241-1AH32-2XB0

Brand

Siemens

Category

Communication & Networking

Product type

Communication & Networking

Lifecycle

Active Product

Dimensions

10.4 x 9.1 x 5.8 cm

Net weight

0.156 Kg

Source category

SIPLUS CM 1241 communications modules

• Interface type is RS-232 utilizing a 9-pin D-sub connector for physical connection to peripheral devices. Keep dimensions 10.4 x 9.1 x 5.8 cm and net weight 0.156 Kg unchanged while comparing project documents and product image evidence.
• Operational temperature range spans from -40 degrees Celsius up to +70 degrees Celsius for continuous use.
• Startup temperature threshold allows initialization of the module at temperatures as low as minus twenty-five degrees Celsius.
• Physical dimensions are recorded as 10.4 cm width, 9.1 cm height, and 5.8 cm depth for mounting planning.
• Net weight is listed at 0.156 kilograms, indicating a lightweight design listed for dense control cabinet installations.
• Supports Freeport mode operation, enabling custom protocol implementation beyond standard PPI or MPI communication methods.

• Base model reference is derived from the 6ES7241-1AH32-0XB0 component with added environmental protection features.
• SIPLUS designation indicates enhanced industrial grade specifications compared to standard commercial automation hardware components.
• CM 1241 classification identifies this unit specifically as a communications module for the SIMATIC S7-1200 series.
• Product lifecycle status is currently active, meaning the component remains in production and specification support.

Parameters are factual source fields retained for model review.

• Conformal coating application provides additional protection against moisture, dust, and corrosive agents in industrial settings.
• RS-232 standard ensures broad application context with legacy serial devices requiring asynchronous serial communication protocols.
• 9-pole D-sub connector offers a standardized mechanical interface for secure cable attachment and signal integrity.
• Freeport support allows users to define custom communication protocols for specialized equipment integration requirements.
• Extended thermal rating enables deployment in uncontrolled environments where standard electronic components might fail prematurely.

• Visual inspection should confirm the presence of the 9-pin D-sub female connector on the front panel.
• Check labeling for the full part number 6AG1241-1AH32-2XB0 to verify specific SIPLUS variant identification.
• Examine housing for signs of conformal coating coverage on visible circuit board areas if accessible.
• Verify physical dimensions match the 10.4 x 9.1 x 5.8 cm specification for DIN rail mounting fit.

• Review project documentation to confirm RS-232 baud rate and parity settings required for connected devices.
• Assess environmental conditions to ensure the -40 to +70°C range meets site operational temperature needs.
• Prepare cable specifications including length and connector type to ensure proper signal transmission over distance.
• Document Freeport protocol requirements if custom communication logic is needed for specific industrial machinery integration.

• Confirm that the review restriction class B applies to your specific inquiry preparation and disposal procedures.
• Verify that the extended temperature range aligns with the specific environmental challenges of the installation site.
• Ensure that the Freeport mode capabilities are sufficient for any non-standard communication protocols in use.
• Cross-reference the base model 6ES7241-1AH32-0XB0 specifications to understand the core functionality before adding SIPLUS features.
