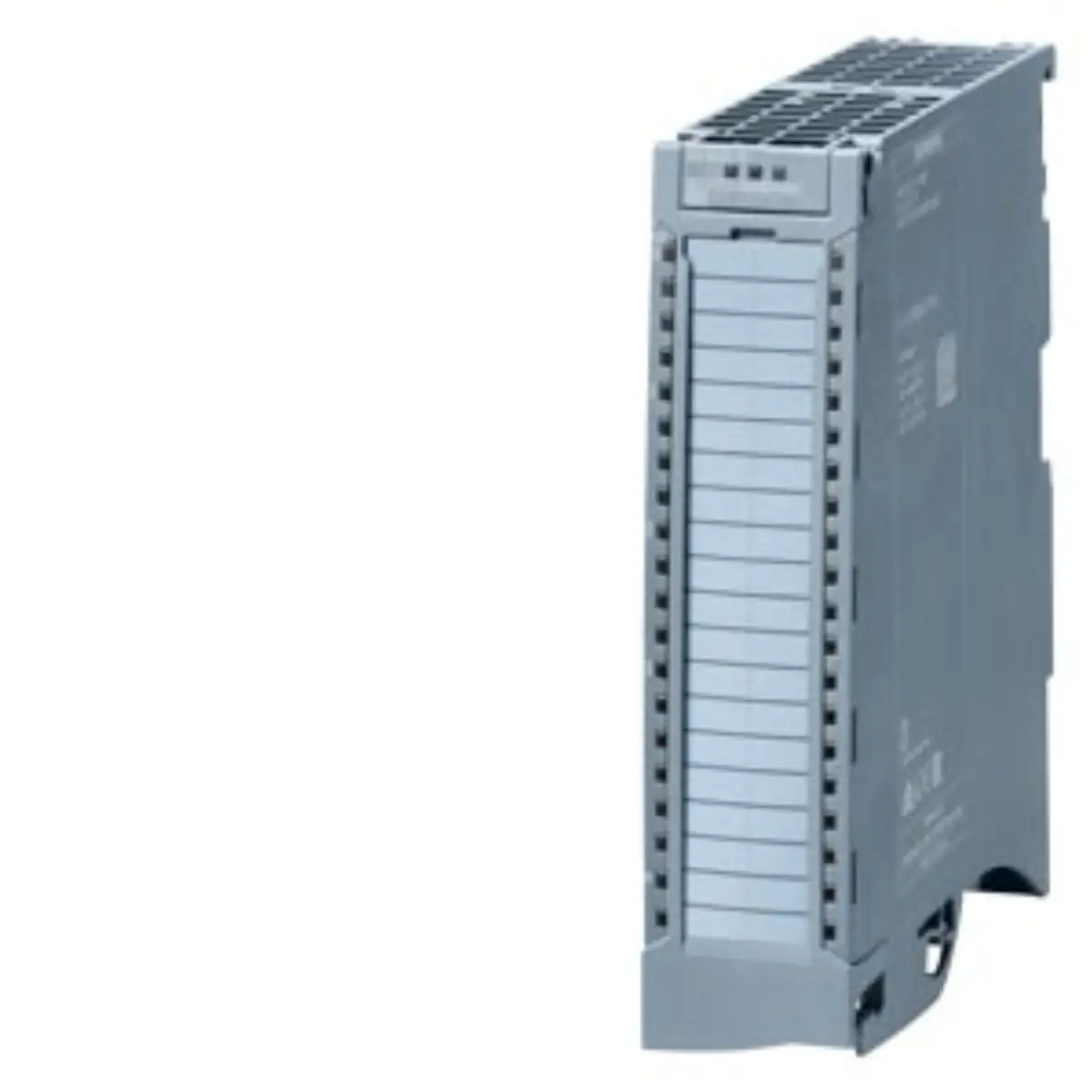

6ES7532-5ND00-0AB0 SIMATIC S7-1500 Analog Output Module

Part number

6ES7532-5ND00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 532 analog output modules

Lifecycle

Active Product

Dimensions

19.3 x 16.1 x 5.00 cm

Net weight

0.412 Kg

Source category

SM 532 analog output modules

• The device operates as an active product within the Siemens SIMATIC S7-1500 ecosystem. Keep dimensions 19.3 x 16.1 x 5.00 cm and net weight 0.412 Kg unchanged while comparing project documents and product image evidence.
• It delivers analog output signals with a resolution of 16 bits per channel.
• Accuracy is maintained at 0.1% for reliable signal transmission in critical processes.
• Four output channels are grouped individually to allow independent configuration and control.
• The module supports isochronous mode for synchronized data processing across the network.
• Safety-oriented shutdown capabilities are included, supporting SIL2 and Category 3 standards.

• The part number 6ES7532-5ND00-0AB0 identifies this specific SM 532 analog output variant. Use the source path Automation technology / Analog modules / SM 532 analog output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The normalized identifier 6ES75325ND000AB0 is used for consistent database indexing and retrieval.
• This model belongs to the broader category of analog modules for S7-1500 systems.
• The product class designation remains unspecified in the current source parameter records.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 19.3 cm in width, 16.1 cm in height, and 5.00 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7532-5ND00-0AB0 record before publication.
• The net weight of the unit is listed as 0.412 kilograms for logistics planning.
• Diagnostics features enable monitoring of module status and potential fault conditions during operation.
• Substitute value functionality allows for defined output states during specific operational scenarios.
• The module supports safety functions according to EN IEC 62061:2021 and EN ISO 13849-1:2015.

• Visual inspection should confirm the presence of the front connector interface area. Review Siemens 6ES7532-5ND00-0AB0 as SM 532 analog output modules with source category SM 532 analog output modules, recorded lifecycle Active Product, and submitted model identity.
• Check for the inclusion of the infeed element within the packaging documentation.
• Verify that the shielding bracket and shield terminal are present as standard accessories.
• Note that the front connector itself must be request separately from the main unit.

• Review the submitted model number to ensure alignment with existing S7-1500 rack configurations.
• Confirm the required output type matches the module's capability for voltage or current signals.
• Assess whether the safety integrity level requirements meet the specified SIL2 classification.
• Prepare project documents detailing the necessary front connector type for final assembly.

• Source parameter review indicates the module is currently listed as an Active Product.
• Project document review should verify the common mode voltage limits for the application.
• Technical specification analysis confirms the 16-bit resolution meets high-precision control requirements.
• Logistics planning must account for the net weight and physical dimensions provided.
