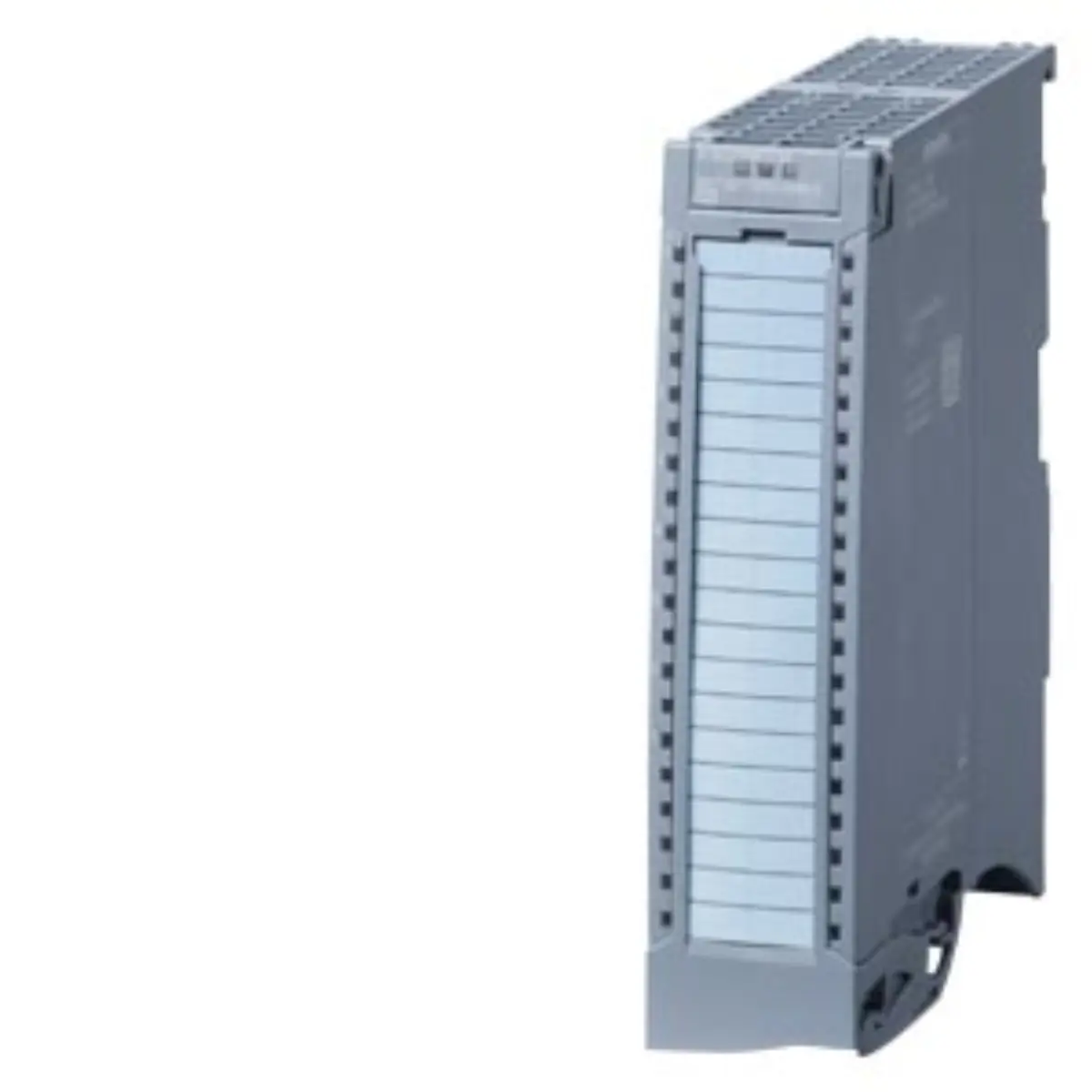

Siemens 6ES7531-7QF00-0AB0 SM 531 Analog Input Module

Part number

6ES7531-7QF00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 531 analog input modules

Lifecycle

Active Product

Dimensions

19.3 x 16.1 x 5.00 cm

Net weight

0.37 Kg

Source category

SM 531 analog input modules

• The device operates as an AI 8xU/I/R/RTD BA unit within the SIMATIC S7-1500 ecosystem. Keep dimensions 19.3 x 16.1 x 5.00 cm and net weight 0.37 Kg unchanged while comparing project documents and product image evidence.
• It provides eight input channels grouped together for efficient signal processing and management.
• Resolution is maintained at 16 bits to ensure precise data acquisition for critical processes.
• Accuracy is specified at 0.5 percent to meet stringent measurement requirements in industrial settings.
• Common mode voltage is recorded at 4 V DC for stable operation under varying conditions.
• Hardware interrupts and diagnostic functions are integrated to enhance system monitoring and response.

• The brand name associated with this component is Siemens, a recognized leader in automation. Use the source path Automation technology / Analog modules / SM 531 analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The product type is classified as an SM 531 analog input module for S7-1500.
• Lifecycle status is listed as Active Product, indicating current production and support review details.
• The normalized part number is 6ES75317QF000AB0 for consistent identification across documentation systems.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 19.3 x 16.1 x 5.00 cm for space planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7531-7QF00-0AB0 record before publication.
• Net weight is specified at 0.37 Kg for logistical and mounting considerations.
• Source category path includes Automation technology, Analog modules, and SM 531 analog input modules.
• Delivery includes an infeed element, shield bracket, and shield terminal for installation support.
• Front connectors with screw terminals or push-in options must be request separately for use.

• Visual representations should show the front panel and connection points of the module.
• Images must clearly display the part number label for accurate model verification purposes.
• Side views can help illustrate the compact form factor and mounting rail interface.
• Close-ups of the shield bracket and infeed element highlight included accessory components.

• Verify the required signal types match the U/I/R/RTD capabilities of this module.
• Confirm that the 16-bit resolution meets the precision needs of your application.
• Check if additional front connectors are needed since they are not included in delivery.
• Review project documents to ensure the common mode voltage specification aligns with your setup.

• Ensure all technical parameters are reviewed against your specific engineering requirements carefully.
• Cross-reference the dimensions and weight with your cabinet layout and load limits.
• Confirm that the active lifecycle status supports your long-term maintenance strategy needs.
• Submit detailed inquiry information to facilitate accurate technical assessment and response processing.
