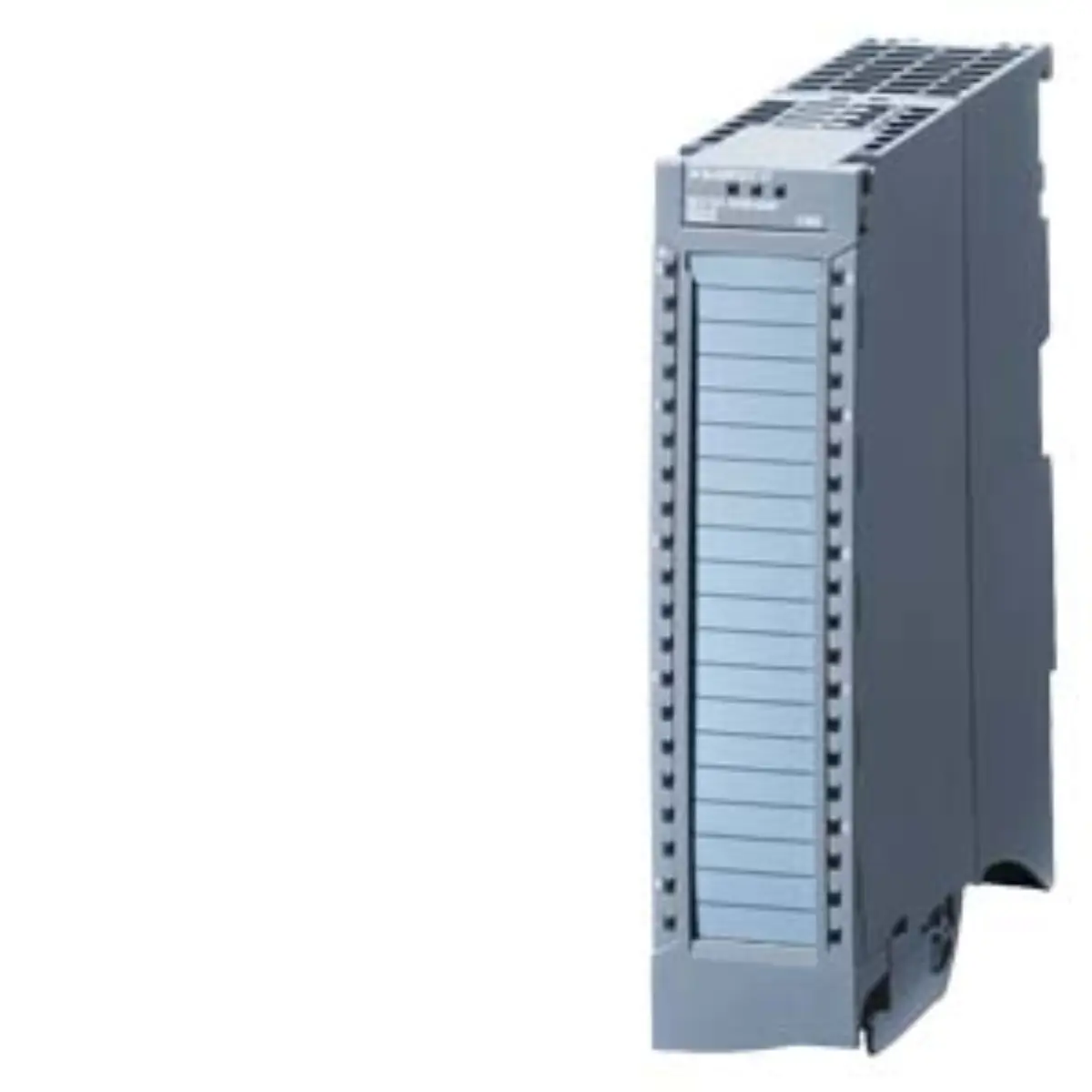

6ES7531-7NF10-0AB0 SIMATIC S7-1500 Analog Input Module

Part number

6ES7531-7NF10-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 531 analog input modules

Lifecycle

Active Product

Dimensions

19.3 x 16.1 x 4.7 cm

Net weight

0.42 Kg

Source category

SM 531 analog input modules

• Eight input channels operate in groups of eight for efficient signal processing and management. Keep dimensions 19.3 x 16.1 x 4.7 cm and net weight 0.42 Kg unchanged while comparing project documents and product image evidence.
• Sixteen-bit resolution ensures detailed data capture for sensitive analog measurements and control loops.
• Accuracy is specified at 0.3 percent, supporting precise industrial instrumentation and feedback systems.
• Common mode voltage tolerance reaches ten volts, enhancing noise immunity in electrically noisy settings.
• Hardware interrupts trigger within 0.0625 milliseconds, allowing rapid response to critical process changes.
• Oversampling techniques improve signal quality by reducing noise and increasing measurement stability over time.

• The part number 6ES7531-7NF10-0AB0 identifies this specific variant within the Siemens product portfolio. Use the source path Automation technology / Analog modules / SM 531 analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This unit belongs to the SM 531 family of analog input modules for S7-1500 systems.
• The lifecycle status is recorded as Active Product, indicating ongoing manufacturing and support review details.
• Brand attribution links this hardware directly to Siemens industrial automation technology and engineering standards.

Parameters are factual source fields retained for model review.

• Physical dimensions measure 19.3 by 16.1 by 4.7 centimeters for rack mounting considerations. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7531-7NF10-0AB0 record before publication.
• Net weight is listed at 0.42 kilograms, aiding in logistics and installation planning calculations.
• Diagnostics features are integrated to assist in troubleshooting and maintaining system operational integrity.
• Front connectors require separate request, utilizing either screw terminals or push-in connection methods.
• Delivery includes an infeed element, shield bracket, and shield terminal for proper grounding setup.

• Visual inspection should confirm the presence of the shield bracket and infeed element components.
• Check terminal block orientation to ensure correct wiring configuration during physical installation procedures.
• Verify labeling on the module housing matches the part number 6ES7531-7NF10-0AB0 exactly.
• Examine connector types to determine if screw or push-in front connectors are required.

• Review project documentation to confirm channel count requirements match the eight-channel module specification.
• Assess signal types to ensure voltage and current inputs align with module acceptance criteria.
• Evaluate mounting space constraints against the recorded dimensions of 19.3 by 16.1 by 4.7 cm.
• Prepare technical questions regarding integration with existing SIMATIC S7-1500 controllers and software versions.

• Confirm that the submitted model meets all technical specifications required for the target application.
• Verify that necessary accessories like front connectors are included in the inquiry preparation scope.
• Ensure application context with the existing SIMATIC S7-1500 rack infrastructure before finalizing inquiries.
• Document any specific diagnostic or interrupt requirements to validate the module's suitability for use.
