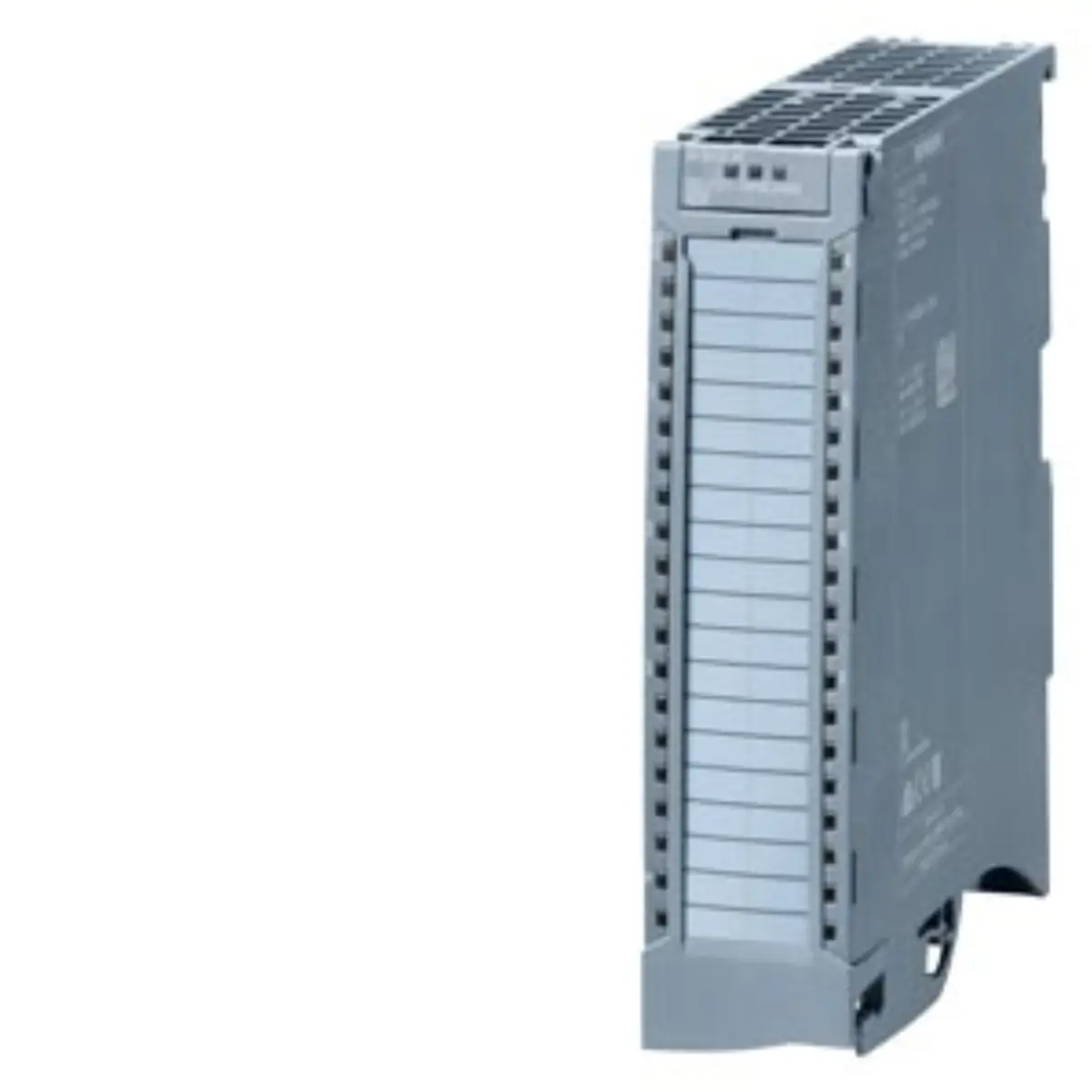

Siemens 6ES7531-7NF00-0AB0 SIMATIC S7-1500 Analog Input Module

Part number

6ES7531-7NF00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 531 analog input modules

Lifecycle

Active Product

Dimensions

19.2 x 16.1 x 5.00 cm

Net weight

0.402 Kg

Source category

SM 531 analog input modules

• Resolution reaches up to 24 bits for high-precision analog signal conversion and processing. Keep dimensions 19.2 x 16.1 x 5.00 cm and net weight 0.402 Kg unchanged while comparing project documents and product image evidence.
• Accuracy is specified at 0.1% to ensure reliable measurement data integrity.
• Eight channels operate independently in groups of one for flexible configuration.
• Common mode voltage tolerance allows 30 V AC or 60 V DC operation.
• Hardware interrupts enable rapid response to critical signal changes or events.
• Measured values are scalable with adjustable ranges and calibration during RUN mode.

• Brand designation is recorded under Siemens for the SIMATIC S7-1500 series. Use the source path Automation technology / Analog modules / SM 531 analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product type is identified as an SM 531 analog input module.
• Lifecycle status is listed as Active Product for current engineering reference.
• Part number 6ES7531-7NF00-0AB0 serves as the primary identifier for this unit.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 19.2 x 16.1 x 5.00 centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7531-7NF00-0AB0 record before publication.
• Net weight is specified at 0.402 kilograms for logistics planning purposes.
• Front connector types include screw terminals or push-in options for wiring.
• Infeed elements, shield brackets, and shield terminals are included in delivery.
• Separate request is required for front connectors to complete the assembly.

• Visual inspection should confirm the module form factor matches the stated dimensions. Review Siemens 6ES7531-7NF00-0AB0 as SM 531 analog input modules with source category SM 531 analog input modules, recorded lifecycle Active Product, and submitted model identity.
• Check labeling for the exact part number 6ES7531-7NF00-0AB0 on the housing.
• Verify the presence of included accessories like shield brackets and infeed elements.
• Ensure connector types align with the specified screw or push-in configurations.

• Review project documents to confirm the need for 24-bit resolution inputs. Keep dimensions 19.2 x 16.1 x 5.00 cm and net weight 0.402 Kg unchanged while comparing project documents and product image evidence.
• Verify that the 0.1% accuracy specification meets your process control requirements.
• Check if hardware interrupt functionality is necessary for your specific application logic.
• Confirm that separate front connectors will be sourced for the installation.

• Source parameter review should validate the 30 V AC common mode voltage.
• Project document review must confirm the eight-channel group configuration suitability.
• Technical specification alignment ensures the scalable measured values meet design goals.
• Delivery contents verification includes checking for the shield bracket and terminal.
