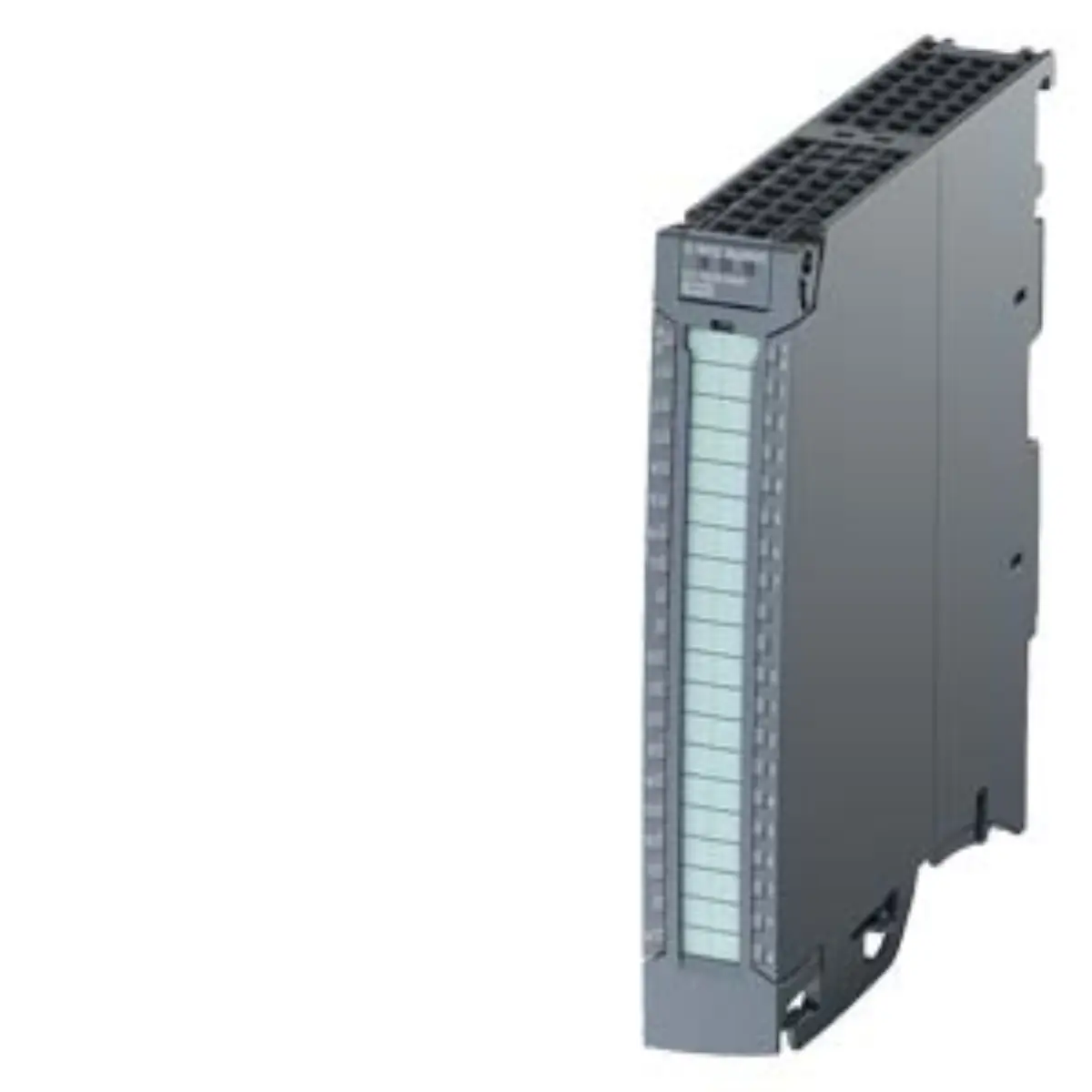

6ES7523-1BL00-0AA0 SIMATIC S7-1500 Digital Input/Output Module

Part number

6ES7523-1BL00-0AA0

Brand

Siemens

Category

I/O Modules

Product type

SM 523 digital input/output modules

Lifecycle

Active Product

Dimensions

20.3 x 15.1 x 3.7 cm

Net weight

0.356 Kg

Source category

SM 523 digital input/output modules

• Input configuration includes sixteen channels grouped together, featuring a typical input delay of approximately 3.2 milliseconds for signal detection.
• Output configuration consists of sixteen channels arranged in groups of eight, delivering 24V DC at 0.5A per channel with a total group capacity of 4A.
• The module supports safety-oriented shutdown of load groups, meeting SIL2 standards per EN IEC 62061:2021 and Category 2/PL c per EN ISO 13849-1:2015.
• Physical dimensions are recorded as 20.3 cm by 15.1 cm by 3.7 cm, with a net weight of 0.356 kilograms for handling considerations.
• The product lifecycle status is listed as Active Product, indicating ongoing support and documentation review details for current engineering projects.
• Delivery includes a front connector with push-in technology, facilitating straightforward wiring connections during installation procedures on DIN rails.

• Identify the unit by the full part number 6ES7523-1BL00-0AA0 to ensure correct specification matching in technical documentation.
• Recognize the normalized identifier 6ES75231BL000AA0 for database indexing and cross-referencing within inventory management systems.
• Classify the item under the brand Siemens and the product class of SM 523 digital input/output modules.
• Locate the component within the Automation technology category, specifically under Digital modules and IO modules sub-sections.

Parameters are factual source fields retained for model review.

• Verify the input voltage rating of 24V DC matches the power supply characteristics of the target control cabinet environment.
• Confirm the output current limit of 0.5A per channel aligns with the load requirements of connected actuators or indicators.
• Check that the safety integrity level SIL2 meets the functional safety requirements defined in the plant design documentation.
• Ensure the physical footprint of 20.3 x 15.1 x 3.7 cm fits within the recorded rack space constraints.
• Review the typical input delay of 3.2 ms to assess suitability for high-speed signal processing applications.

• Inspect the front panel labeling to confirm the part number 6ES7523-1BL00-0AA0 is clearly visible and legible.
• Examine the terminal block area to verify the presence of push-in connectors for wire termination points.
• Check the status LED indicators on the module face to understand the visual feedback mechanism for operation.
• Observe the mounting rail interface to ensure the clip mechanism is intact for secure DIN rail attachment.

• Prepare project documents specifying the required quantity of modules needed for the expansion rack configuration.
• Gather technical drawings showing the rack layout to confirm spatial application context with the 20.3 cm width dimension.
• Compile electrical schematics highlighting the 24V DC input and output circuits to validate voltage and current ratings.
• List safety certification requirements to ensure the SIL2 and PL c ratings meet regulatory compliance standards.

• Cross-reference the source category path to ensure accurate classification within the digital input/output product family.
• Validate the lifecycle status as Active Product to confirm long-term review details for future maintenance needs.
• Compare the net weight of 0.356 kg against shipping and handling estimates for logistical planning purposes.
• Review the inclusion of the front connector push-in to determine if additional wiring accessories are necessary.
