6ES7522-5HH00-0AB0 SIMATIC S7-1500 Digital Output Module

Part number

6ES7522-5HH00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 522 digital output modules

Lifecycle

Active Product

Dimensions

15.1 x 15.1 x 4.7 cm

Net weight

0.369 Kg

Source category

SM 522 digital output modules

• The device supports sixteen digital output channels configured for 230V AC applications. Keep dimensions 15.1 x 15.1 x 4.7 cm and net weight 0.369 Kg unchanged while comparing project documents and product image evidence.
• Each individual channel handles a maximum current of two amperes during operation.
• Outputs are organized into eight groups, allowing four amperes per group total.
• Relay technology provides electrical isolation between the control circuit and load side.
• A built-in switching cycle counter tracks relay operations for predictive maintenance insights.
• Integrated diagnostics offer detailed status information regarding channel faults and module health.

• Identify this unit as part of the SIMATIC S7-1500 product family. Use the source path Automation technology / Digital modules / SM 522 digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The model designation SM 522 indicates a specific digital output module type.
• Verify the full part number includes the suffix 5HH00-0AB0 for accuracy.
• Confirm the lifecycle status is listed as Active Product for current projects.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.1 cm by 15.1 cm by 4.7 cm. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7522-5HH00-0AB0 record before publication.
• The net weight of the module is specified as 0.369 kilograms for logistics.
• Front connector options include screw terminals or push-in types, request separately.
• Safety functions support shutdown of load groups up to SIL1 per EN IEC 62061.
• Performance Level c is achieved according to EN ISO 13849-1:2015 standards.

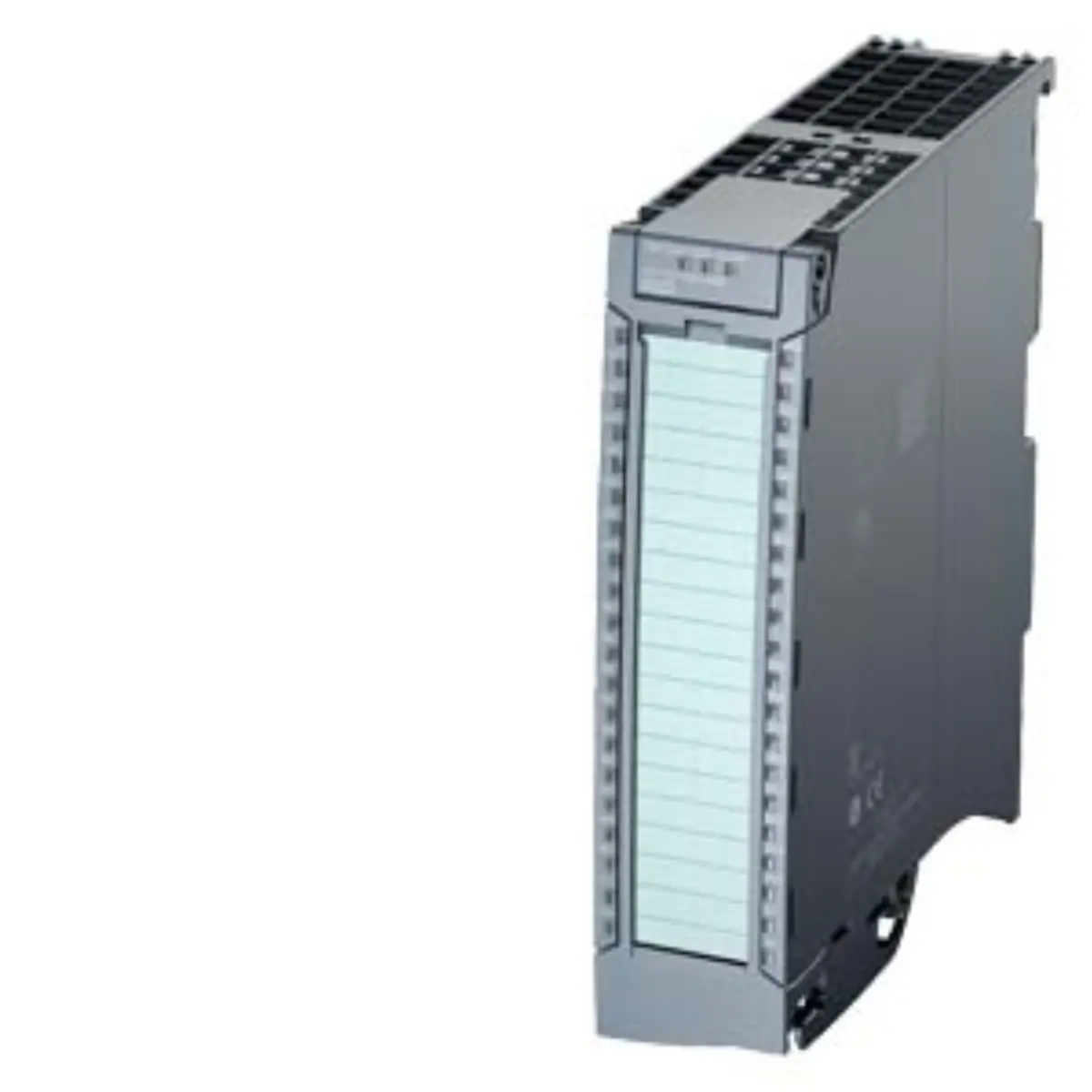

• Images typically show the front panel with channel indicator LEDs for status. Review Siemens 6ES7522-5HH00-0AB0 as SM 522 digital output modules with source category SM 522 digital output modules, recorded lifecycle Active Product, and submitted model identity.
• The module housing displays the Siemens branding and the specific part number clearly.
• Rear views may illustrate the connection interface for the separate front connector.
• Dimensional diagrams often accompany product images to assist in rack space planning.

• Specify the required quantity of modules needed for your automation project scope. Keep dimensions 15.1 x 15.1 x 4.7 cm and net weight 0.369 Kg unchanged while comparing project documents and product image evidence.
• Indicate whether screw terminal or push-in front connectors are required for installation.
• Provide details on the load voltage and current characteristics for each channel.
• Include any specific diagnostic or safety integration requirements for your system design.

• Ensure all technical parameters match your system's voltage and current requirements.
• Verify that the separate front connector type aligns with your wiring strategy.
• Check that the safety integrity level meets your application's regulatory standards.
• Confirm the physical dimensions fit within your existing rack or enclosure layout.
