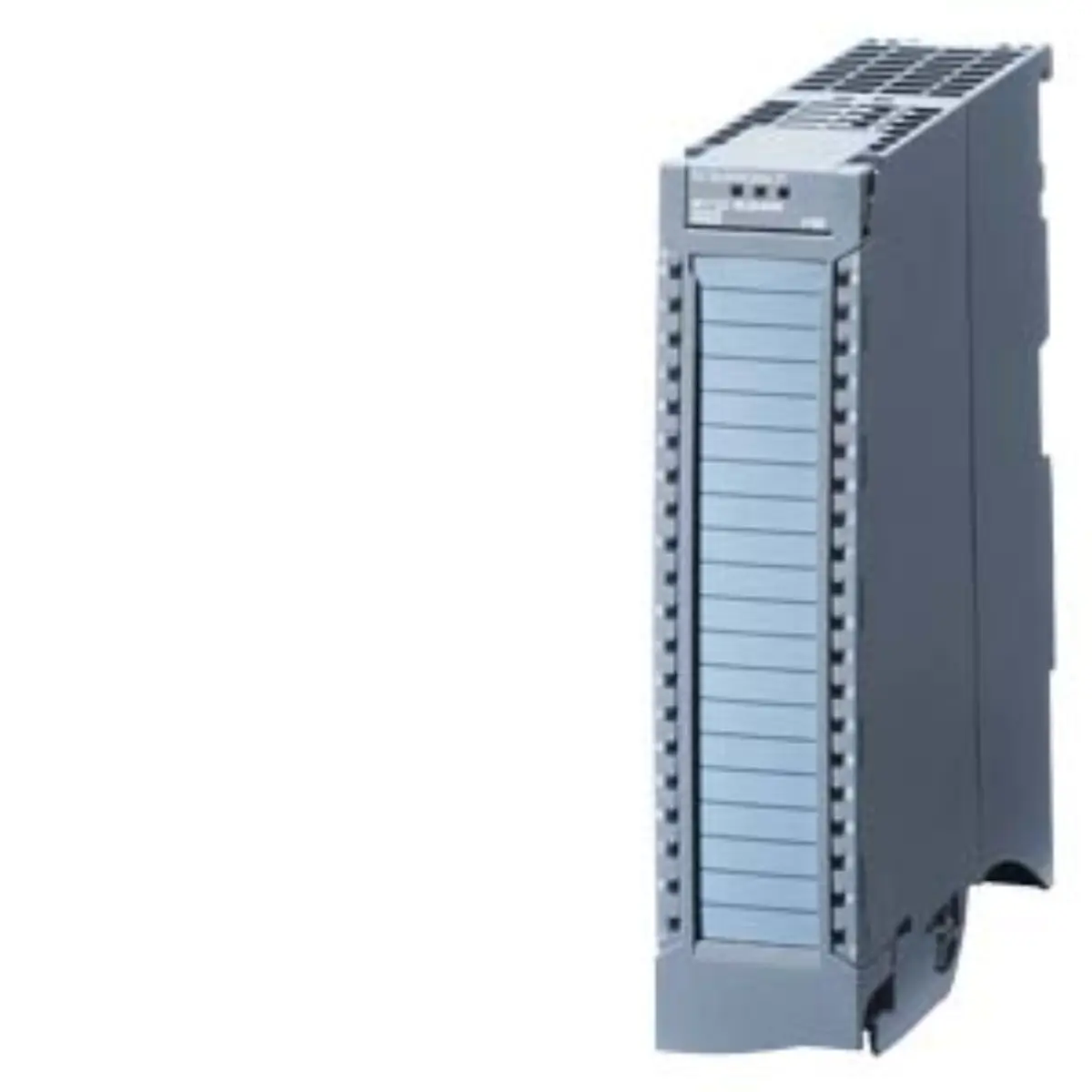

6ES7522-5HF00-0AB0 SIMATIC S7-1500 Digital Output Module

Part number

6ES7522-5HF00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 522 digital output modules

Lifecycle

Active Product

Dimensions

15.1 x 15.00 x 4.7 cm

Net weight

0.399 Kg

Source category

SM 522 digital output modules

• Module type is SM 522 digital output with eight channels grouped individually for independent control operations. Keep dimensions 15.1 x 15.00 x 4.7 cm and net weight 0.399 Kg unchanged while comparing project documents and product image evidence.
• Switching voltage is recorded as AC 230V with a maximum current capacity of 5A per output group.
• Technology employed is relay-based switching, offering galvanic isolation between the internal logic and external load circuits.
• Diagnostics functionality is included to monitor module status and detect potential faults within the output channels.
• Safety features support shutdown of load groups up to SIL1 according to EN IEC 62061 standards.
• Physical dimensions are listed as 15.1 x 15.00 x 4.7 cm with a net weight of 0.399 Kg.

• Brand name is identified as Siemens within the industrial automation component classification system.
• Product lifecycle status is recorded as Active Product indicating ongoing manufacturing and support review details.
• Category classification places this unit under IO modules specifically within the digital output segment.
• Source category path lists Automation technology leading to Digital modules and then SM 522 series.

Parameters are factual source fields retained for model review.

• Channel count is fixed at eight digital outputs arranged in groups for structured load management.
• Current rating per group is specified as 5A allowing connection of moderate power AC devices.
• Switching cycle counter serves as a substitute value for tracking integrated relay usage over time.
• Front connector interface requires separate request with options for screw terminals or push-in connection types.
• Safety integrity level allows for safety-oriented shutdown functions compliant with international industrial safety standards.

• Visual inspection should confirm the presence of eight distinct channel indicators on the module front face.
• Check for labeling clarity showing the full part number 6ES7522-5HF00-0AB0 printed on the housing.
• Verify terminal block area design to ensure application context with the separately request front connector units.
• Examine physical condition for any signs of damage that might affect installation in control cabinets.

• Confirm the required front connector type either screw terminal or push-in for proper module integration.
• Review load specifications to ensure AC 230V and 5A per group meet project electrical demands.
• Assess safety requirements to determine if SIL1 shutdown functionality aligns with plant safety protocols.
• Document diagnostic needs to verify if module status monitoring suffices for operational maintenance strategies.

• Ensure all technical parameters match the specific application requirements before submitting the inquiry request.
• Verify that the front connector is accounted for separately in the overall project component list.
• Cross-reference safety standards with local regulations to confirm compliance for the intended installation environment.
• Maintain accurate records of the part number 6ES7522-5HF00-0AB0 for precise identification during communication.
