6ES7522-1BL10-0AA0 SIMATIC S7-1500 Digital Output Module

Part number

6ES7522-1BL10-0AA0

Brand

Siemens

Category

I/O Modules

Product type

SM 522 digital output modules

Lifecycle

Active Product

Dimensions

20.4 x 15.4 x 4.00 cm

Net weight

0.36 Kg

Source category

SM 522 digital output modules

• The module features thirty-two DC output channels arranged in four groups of eight channels each. Keep dimensions 20.4 x 15.4 x 4.00 cm and net weight 0.36 Kg unchanged while comparing project documents and product image evidence.
• Each output channel operates at a nominal voltage of 24 V DC with a maximum current of 0.5 A.
• Current capacity per group reaches four amperes, allowing for higher load sharing within each eight-channel segment.
• Safety functions include oriented shutdown capabilities compliant with EN IEC 62061:2021 for SIL2 applications.
• The hardware meets performance level requirements defined in EN ISO 13849-1:2015 for Category 3 and PL d.
• Physical dimensions are recorded as 20.4 cm by 15.4 cm by 4.00 cm with a net weight of 0.36 kg.

• Identify the unit by the full part number 6ES7522-1BL10-0AA0 for accurate project documentation and reference.
• The normalized identifier 6ES75221BL100AA0 is used for internal database indexing and systematic component tracking.
• This component belongs to the SM 522 series of digital output modules within the Siemens portfolio.
• The lifecycle status is listed as Active Product, indicating ongoing support and current manufacturing status.

Parameters are factual source fields retained for model review.

• Review the channel configuration which divides thirty-two outputs into four distinct groups for load management.
• Verify the electrical specifications including the 24 V DC operating voltage and 0.5 A per channel limit.
• Check the group current rating of 4 A to ensure loads do not exceed per-group capacity.
• Confirm safety integrity levels required by your application against the stated SIL2 and PL d ratings.
• Examine physical constraints using the provided dimensions and weight for rack mounting and space planning.

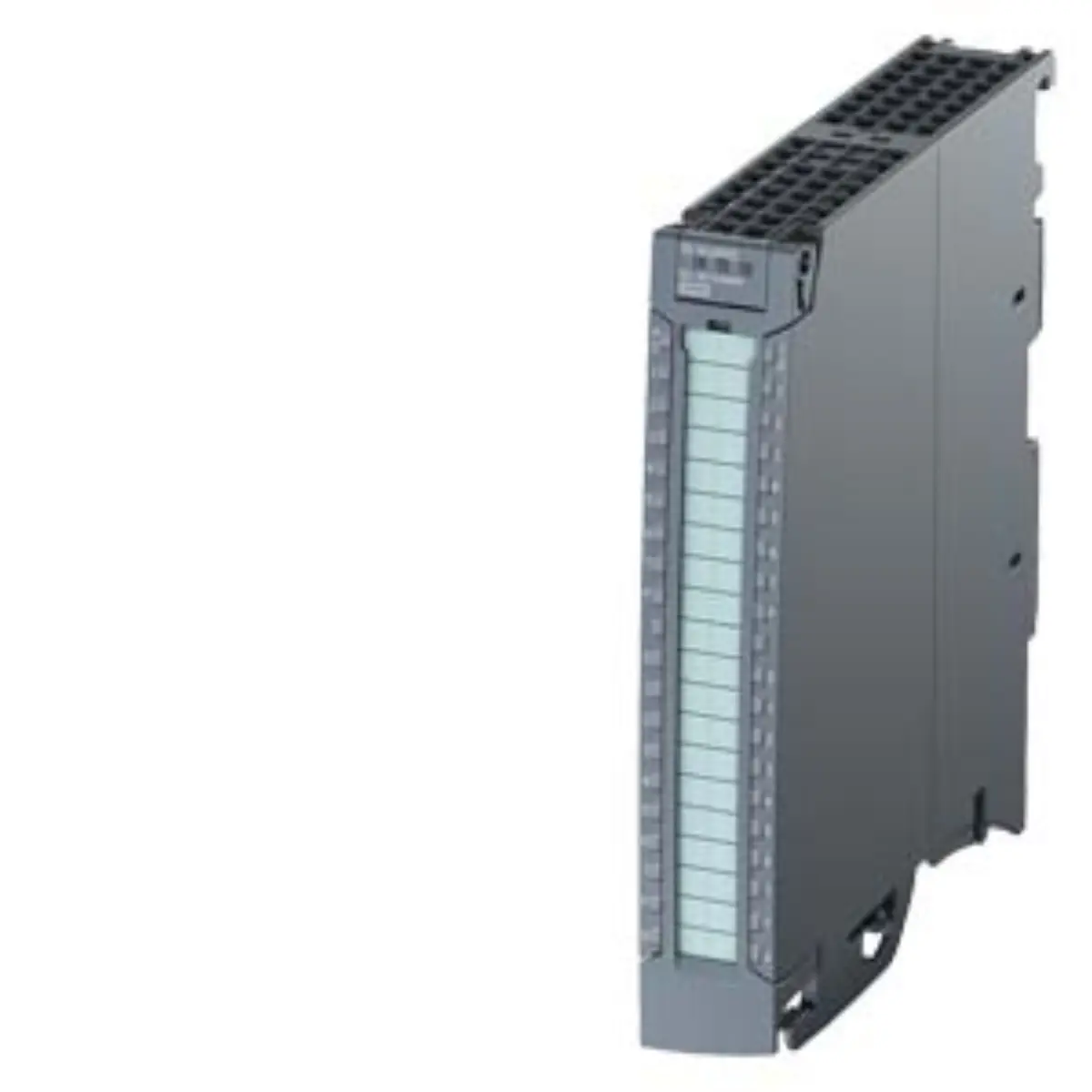

• Images typically display the front panel with LED indicators for channel status and group activity.
