Siemens 6ES7522-1BH10-0AA0 Digital Output Module Inquiry

Part number

6ES7522-1BH10-0AA0

Brand

Siemens

Category

I/O Modules

Product type

SM 522 digital output modules

Lifecycle

Active Product

Dimensions

20.4 x 15.1 x 3.7 cm

Net weight

0.312 Kg

Source category

SM 522 digital output modules

• The device operates as a DQ16xDC 24V/0.5A BA module within the SIMATIC S7-1500 series ecosystem. Keep dimensions 20.4 x 15.1 x 3.7 cm and net weight 0.312 Kg unchanged while comparing project documents and product image evidence.
• It provides sixteen discrete output channels organized into two distinct groups of eight channels each.
• Each group supports a maximum current capacity of four amperes for connected load circuits.
• The module enables safety-oriented shutdown capabilities up to Safety Integrity Level 2 per EN IEC 62061:2021.
• Performance Level d compliance is achieved according to EN ISO 13849-1:2015 Category 3 standards.
• Physical dimensions are recorded at twenty point four by fifteen point one by three point seven centimeters.

• The part number 6ES7522-1BH10-0AA0 uniquely identifies this specific digital output module configuration. Use the source path Automation technology / Digital modules / SM 522 digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The normalized identifier 6ES75221BH100AA0 is used for database indexing and technical reference purposes.
• This item belongs to the SM 522 digital output modules product class within the brand portfolio.
• The lifecycle status is listed as Active Product, indicating ongoing manufacturing and support review details.

Parameters are factual source fields retained for model review.

• Net weight is recorded at zero point three one two kilograms for logistics and handling calculations.
• The module supports DC 24V operation with a current rating of zero point five amperes per channel.
• Safety functions are integrated to allow controlled shutdown of load groups based on project requirements.
• The included front connector utilizes push-in technology to simplify wiring connections during assembly processes.
• Grouping of channels allows for independent control logic application across different output sections.

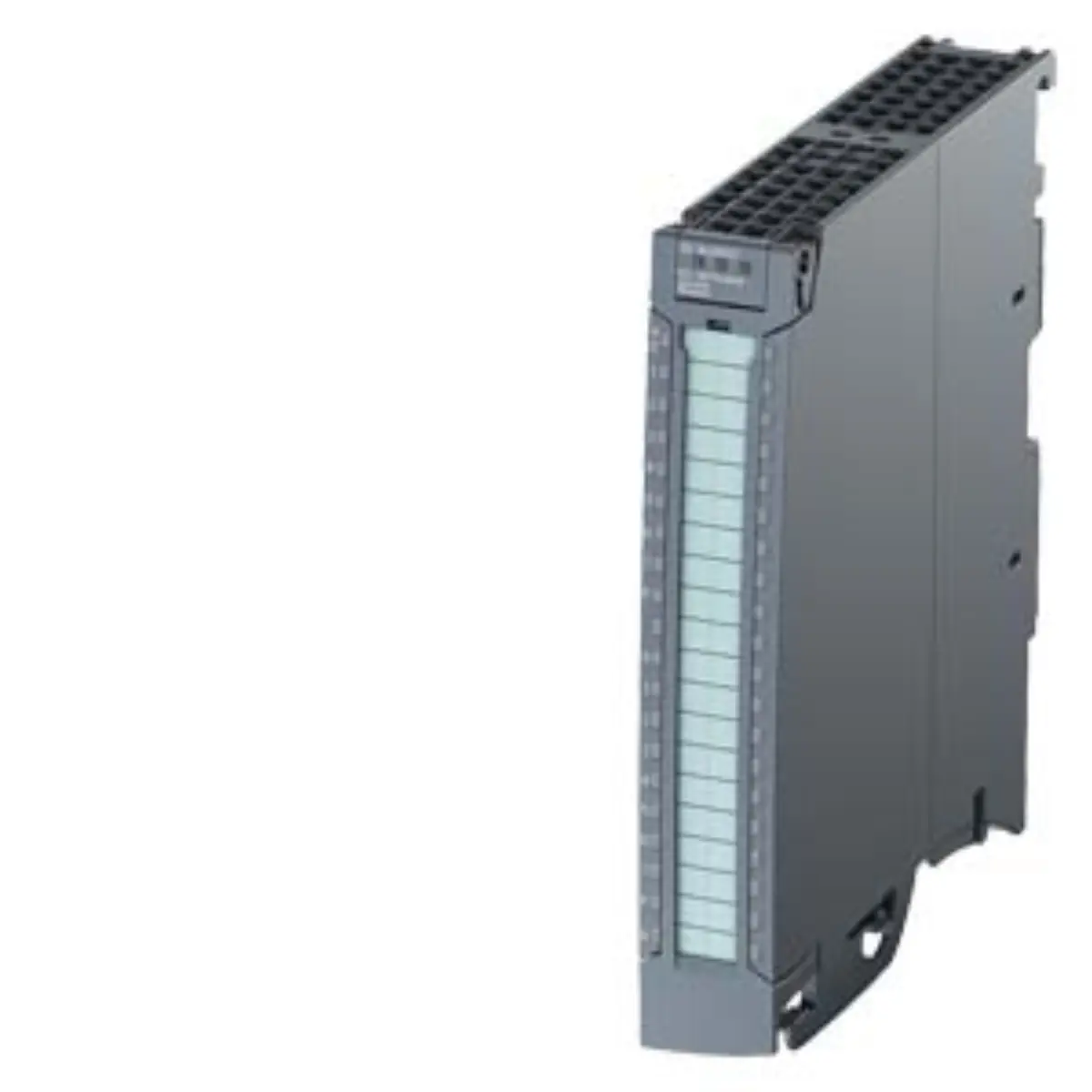

• Images typically display the front panel with LED indicators for channel status monitoring.
• The physical housing shows the compact form factor listed for standard DIN rail mounting.
• Connector terminals are visible on the front face for direct wire insertion without tools.
• Labeling on the module body confirms the part number and technical specification details clearly.

• Review the submitted model number to ensure it matches the required technical specifications for your project.
• Verify the safety integrity level requirements against the module's SIL2 and PLd certification capabilities.
• Check the current load requirements to confirm they fall within the four ampere per group limit.
• Confirm the need for push-in front connectors to align with your existing wiring infrastructure.

• Source parameter review should focus on the electrical ratings and safety function integration details.
• Project document review must verify that the SIL2 capability meets the specific safety standards.
• Physical dimension checks ensure the module fits within the designated rack space constraints.
• Lifecycle status confirmation helps assess long-term supply stability for the automation system design.
