Siemens 6ES7522-1BH01-0AB0 SM 522 Digital Output Module Inquiry

Part number

6ES7522-1BH01-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 522 digital output modules

Lifecycle

Active Product

Dimensions

15.4 x 15.00 x 4.7 cm

Net weight

0.277 Kg

Source category

SM 522 digital output modules

• Module type is SM 522 digital output with sixteen channels operating at 24 V DC. Keep dimensions 15.4 x 15.00 x 4.7 cm and net weight 0.277 Kg unchanged while comparing project documents and product image evidence.
• Current rating is 0.5 A per channel with a maximum of 4 A per group.
• Safety functions comply with EN IEC 62061:2021 and EN ISO 13849-1:2015 standards.
• Single-channel diagnostics allow for precise monitoring of individual output states and faults.
• Switching cycle counter provides substitute value tracking for connected actuator lifecycle management.
• High-frequency operation ensures rapid response times for demanding industrial automation applications.

• Brand name recorded as Siemens for the SIMATIC S7-1500 series hardware platform. Use the source path Automation technology / Digital modules / SM 522 digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Part number 6ES7522-1BH01-0AB0 identifies the specific hardware configuration and revision level.
• Normalized part number 6ES75221BH010AB0 is used for consistent database indexing and search.
• Lifecycle status is listed as Active Product indicating ongoing manufacturing and support.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.4 x 15.00 x 4.7 cm for rack mounting. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7522-1BH01-0AB0 record before publication.
• Net weight is specified as 0.277 Kg for logistics and handling calculations.
• Front connector types include screw terminals or push-in options request separately.
• Group configuration divides sixteen channels into two groups of eight outputs each.
• Voltage specification is 24 V DC for standard industrial control circuit operations.

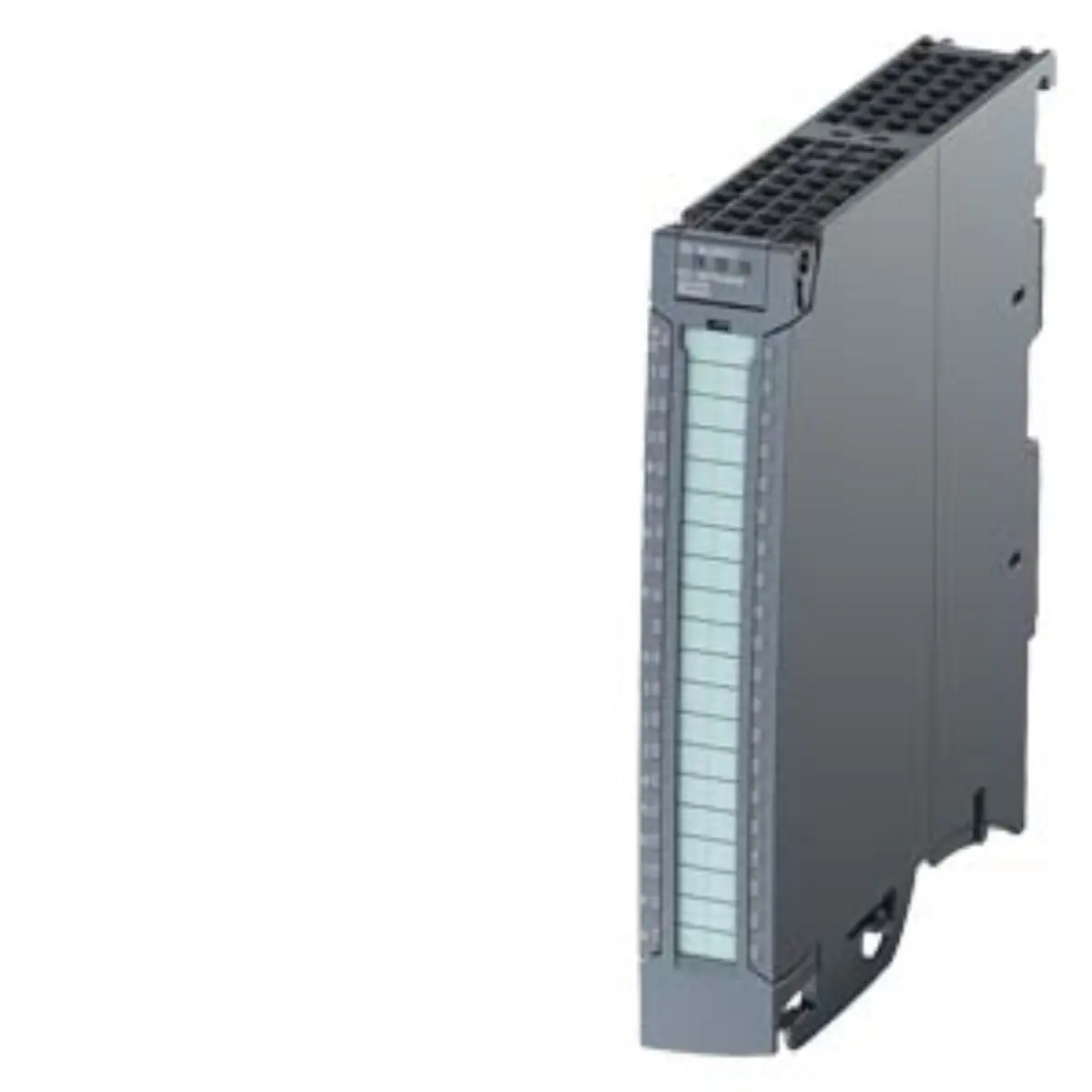

• Product images typically show the front panel with LED status indicators for outputs. Review Siemens 6ES7522-1BH01-0AB0 as SM 522 digital output modules with source category SM 522 digital output modules, recorded lifecycle Active Product, and submitted model identity.
• Terminal blocks are visible on the front for connecting load wires and power.
• Labeling includes the full part number for easy identification during installation procedures.
• Mounting clips and rail attachment points are shown for DIN rail installation.

• Review project documents to confirm voltage requirements and current load specifications.
• Verify front connector type needed, either screw terminals or push-in connections.
• Check safety integrity level requirements against SIL2 and PLd compliance standards.
• Prepare detailed technical questions regarding diagnostics and switching cycle counter features.

• Ensure all technical parameters match the specific requirements of the control system.
• Confirm that separate request of front connectors is accounted for in planning.
• Validate safety function requirements against relevant EN standards for your application.
• Submit inquiry with complete project details for accurate technical assessment and support.
