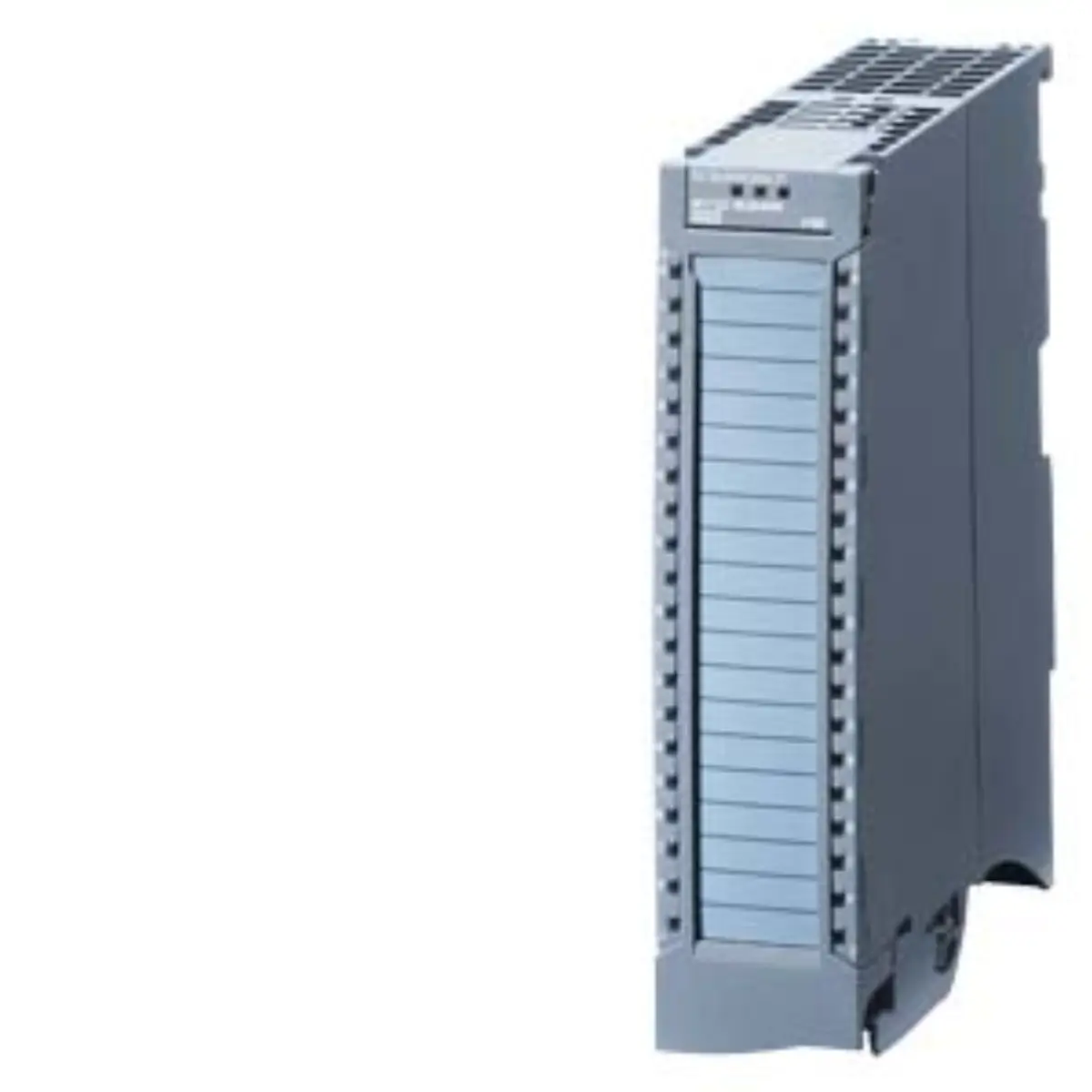

Siemens 6ES7522-1BF00-0AB0 Digital Output Module Inquiry

Part number

6ES7522-1BF00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 522 digital output modules

Lifecycle

Active Product

Dimensions

15.2 x 15.1 x 4.7 cm

Net weight

0.279 Kg

Source category

SM 522 digital output modules

• Eight output channels operate in a single group configuration for streamlined signal management. Keep dimensions 15.2 x 15.1 x 4.7 cm and net weight 0.279 Kg unchanged while comparing project documents and product image evidence.
• Each channel delivers 24 V DC at a maximum current of 2 A per output.
• The entire group shares an 8 A total current capacity for connected loads.
• Two channels can be repurposed for pulse width modulation applications when required.
• Integrated diagnostics allow for continuous monitoring of output status and potential faults.
• Safety functions comply with EN IEC 62061:2021 and EN ISO 13849-1:2015 standards.

• The part number 6ES7522-1BF00-0AB0 uniquely identifies this specific digital output hardware variant. Use the source path Automation technology / Digital modules / SM 522 digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Normalized numbering 6ES75221BF000AB0 ensures consistent reference across different documentation systems.
• This unit belongs to the SM 522 series of digital output modules within the portfolio.
• The lifecycle status is recorded as Active Product, indicating ongoing manufacturing support.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.2 cm in length, 15.1 cm in width, and 4.7 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7522-1BF00-0AB0 record before publication.
• The net weight of the module is listed as 0.279 kilograms for handling calculations.
• Front connectors utilizing screw terminals or push-in mechanisms must be request as separate items.
• Group current limits apply collectively rather than individually to each specific output channel.
• Pulse width modulation functionality requires specific channel allocation within the eight-channel structure.

• Visual inspection should confirm the presence of eight distinct output indicator lights. Review Siemens 6ES7522-1BF00-0AB0 as SM 522 digital output modules with source category SM 522 digital output modules, recorded lifecycle Active Product, and submitted model identity.
• Check the labeling area for clear printing of the full part number sequence.
• Verify the connector slots on the front panel for proper accessory attachment points.
• Ensure the housing shows no signs of physical damage or manufacturing defects.

• Prepare detailed project specifications including voltage requirements and load current expectations.
• Identify necessary front connector types to ensure proper physical installation on the rack.
• Document any specific safety integrity level requirements for your control system design.
• Include current consumption data for all connected loads to verify group capacity limits.

• Cross-reference the submitted model number with your existing system architecture documentation.
• Verify that the 24 V DC supply matches your plant power distribution network.
• Confirm that the front connector type aligns with your wiring harness specifications.
• Review the safety function parameters against your facility’s operational risk assessment protocols.
