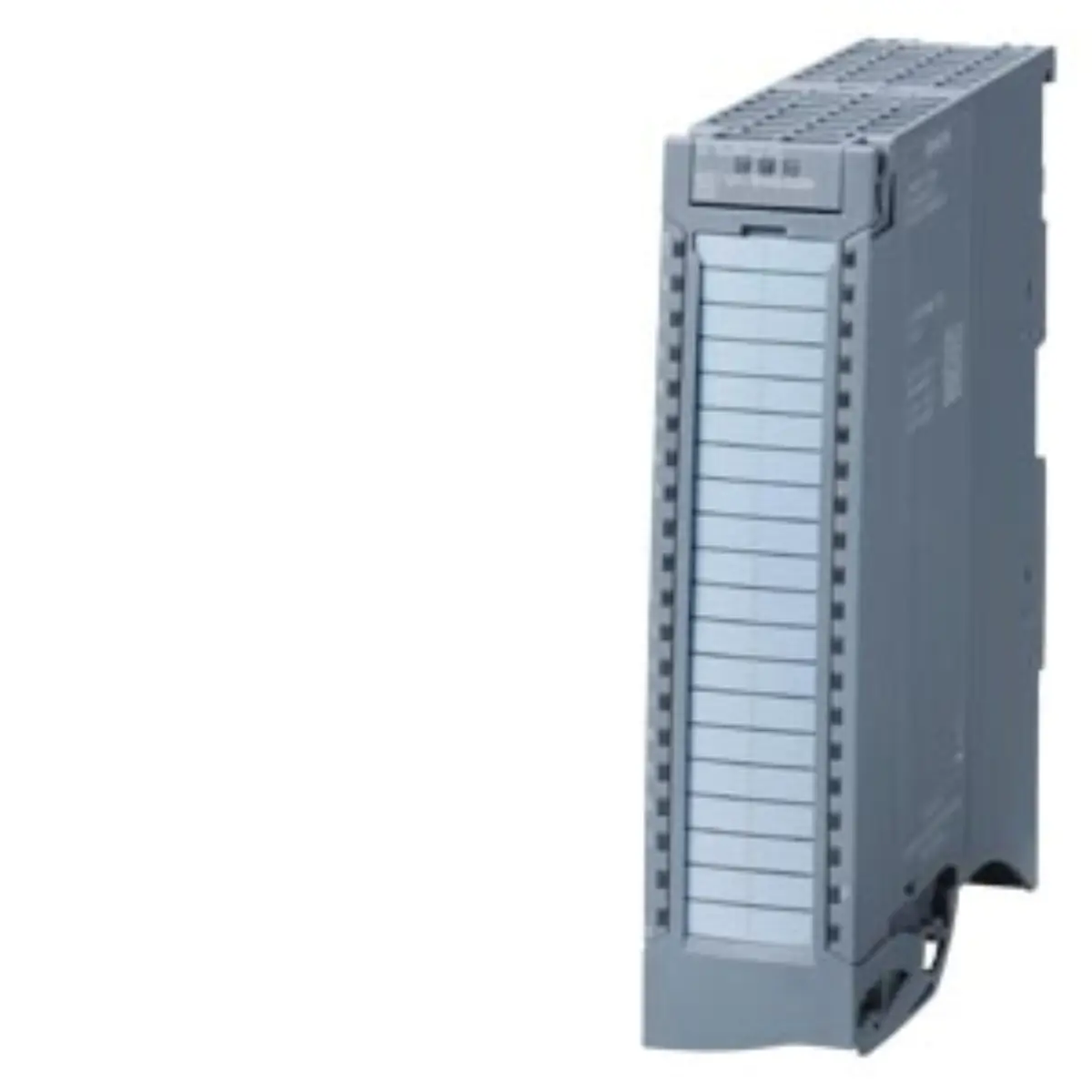

Siemens 6ES7521-7BH00-0AB0 Digital Input Module Inquiry

Part number

6ES7521-7BH00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 521 digital input modules

Lifecycle

Active Product

Dimensions

15.3 x 14.9 x 4.3 cm

Net weight

0.348 Kg

Source category

SM 521 digital input modules

• The module provides sixteen digital input channels operating at 24 V DC with group separation. Keep dimensions 15.3 x 14.9 x 4.3 cm and net weight 0.348 Kg unchanged while comparing project documents and product image evidence.
• Input delay settings can be parameterized within a range of 0.05 to 20 milliseconds.
• Isochronous mode operation is supported with timing precision up to 250 microseconds.
• An integrated counting function enables signal processing at frequencies up to 20 kHz.
• Pulse stretching and chatter monitoring features enhance signal integrity during high-speed operations.
• Hardware interrupts are accessible via front connectors using screw terminals or push-in mechanisms.

• The product is identified as an SM 521 digital input module within the Siemens portfolio. Use the source path Automation technology / Digital modules / SM 521 digital input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It belongs to the SIMATIC S7-1500 family of automation technology components.
• The specific part number 6ES7521-7BH00-0AB0 distinguishes it from other input variants.
• The lifecycle status is recorded as an Active Product for ongoing project planning.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.3 cm by 14.9 cm by 4.3 cm. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7521-7BH00-0AB0 record before publication.
• The net weight of the unit is listed as 0.348 kilograms for logistics review.
• Input type 2 compliance follows the IEC 61131 standard for signal classification.
• Signal inversion diagnostics are included to assist in troubleshooting input signal states.
• Shield sets may need to be request separately depending on the installation configuration.

• Visual inspection should confirm the presence of sixteen channel indicator LEDs. Review Siemens 6ES7521-7BH00-0AB0 as SM 521 digital input modules with source category SM 521 digital input modules, recorded lifecycle Active Product, and submitted model identity.
• Check the front connector type to verify screw terminal or push-in application context.
• Ensure the labeling matches the part number 6ES7521-7BH00-0AB0 for identification.
• Verify the physical condition of the housing for any signs of prior handling.

• Confirm the required input voltage level matches the 24 V DC specification.
• Determine if the integrated counting function meets your frequency requirements up to 20 kHz.
• Specify whether hardware interrupt functionality is needed for your control logic design.
• Review the front connector type preference to ensure proper wiring interface selection.

• Cross-reference the technical parameters with your current system architecture documentation.
• Verify that the dimension constraints fit within your existing rack or mounting space.
• Assess the need for separate shield sets based on your electromagnetic environment.
• Ensure the inquiry includes all necessary project details for accurate processing.
