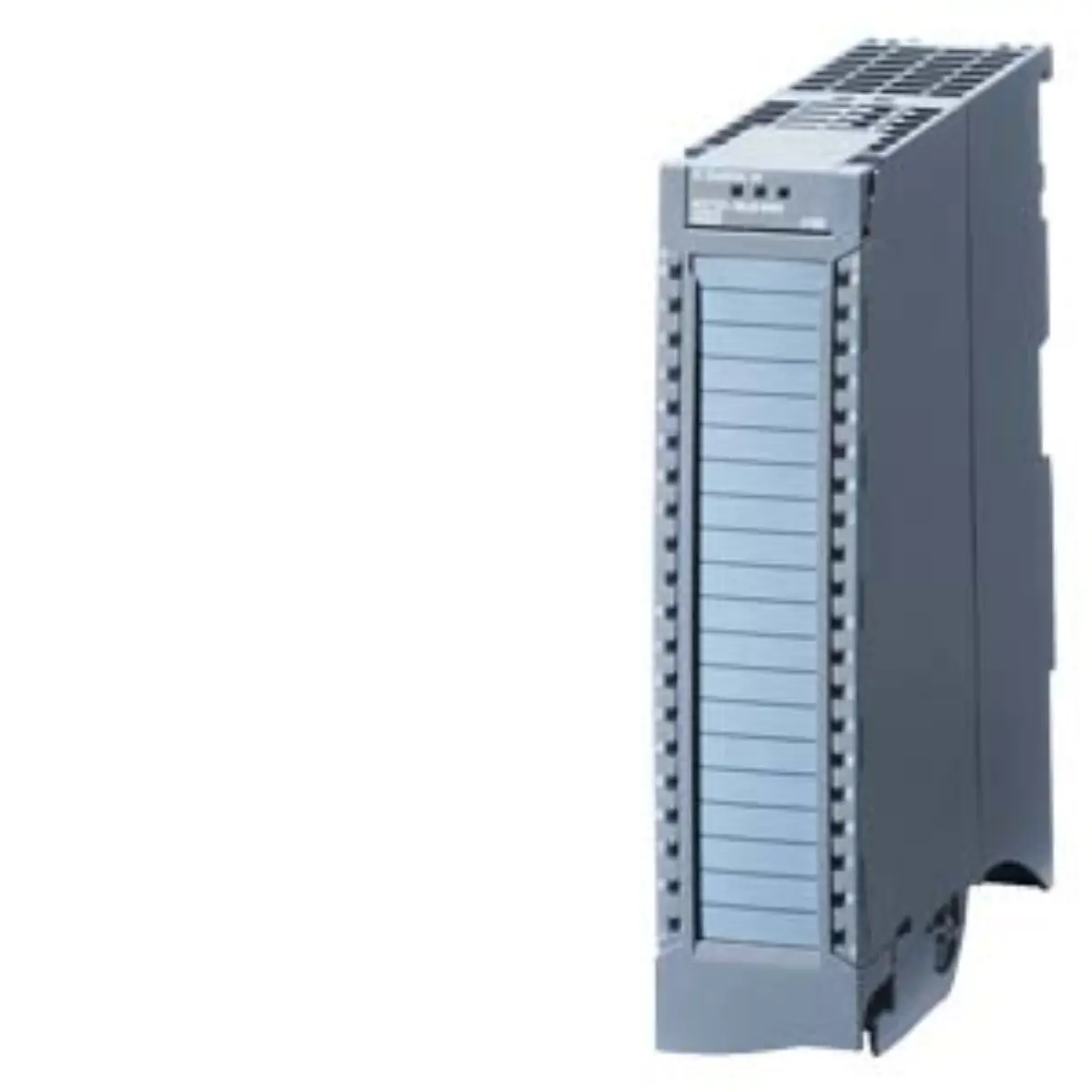

Siemens 6ES7521-1BL00-0AB0 SM 521 Digital Input Module

Part number

6ES7521-1BL00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 521 digital input modules

Lifecycle

Active Product

Dimensions

15.1 x 15.1 x 4.7 cm

Net weight

0.32 Kg

Source category

SM 521 digital input modules

• Input voltage specification is 24 V DC, ensuring standard industrial signal application context for most automated machinery environments.
• The module features hardware interrupt capabilities, requiring a separate front connector with screw terminals or push-in connections.
• Diagnostic functions are integrated to monitor input status and signal integrity, aiding in rapid troubleshooting procedures.
• Input type 3 adheres to IEC 61131 standards, defining the electrical characteristics for digital signal processing.
• Physical dimensions are recorded as 15.1 x 15.1 x 4.7 cm, fitting standard rack mounting configurations.
• Net weight is listed at 0.32 Kg, contributing to minimal load on the DIN rail mounting structure.

• Brand designation is clearly marked as Siemens, indicating the manufacturer of this industrial automation component.
• Product class is identified as A, representing a standard product type within the manufacturer's catalog structure.
• Lifecycle status is recorded as Active Product, confirming current production and support review details for this model.
• Category classification places this unit under IO Modules, specifically within the digital input groupings.

Parameters are factual source fields retained for model review.

• Channel count is fixed at thirty-two, organized in groups of sixteen for logical input segmentation.
• Counter functionality is limited to two specific inputs, allowing for high-speed pulse counting applications.
• Delay range spans from 0.05 ms to 20 ms, providing flexibility for various signal filtering requirements.
• Front connector hardware is not included and must be sourced separately for proper installation.
• Diagnostics capability allows for monitoring of channel status and potential signal errors during operation.

• Visual inspection should confirm the presence of thirty-two input terminals on the front panel face.
• Labeling must clearly display the full part number 6ES7521-1BL00-0AB0 for accurate inventory verification.
• Mounting clips and DIN rail attachment points should be intact and free from physical damage.
• Connector slots for the separate front wiring module must be unobstructed and properly aligned.

• Review project documentation to verify that 24 V DC input signals match the module specifications.
• Confirm whether hardware interrupts are required for the specific application logic and timing constraints.
• Ensure the separate front connector type matches the wiring method preferred for the installation site.
• Check physical space constraints against the module dimensions of 15.1 x 15.1 x 4.7 cm.

• Verify that the input delay settings align with the fastest expected signal transitions in the system.
• Confirm that the two counter inputs are sufficient for any high-speed counting requirements in the design.
• Ensure that the diagnostic features meet the maintenance and troubleshooting protocols established by the facility.
• Cross-reference the IEC 61131 input type 3 definition with existing PLC program input definitions.
