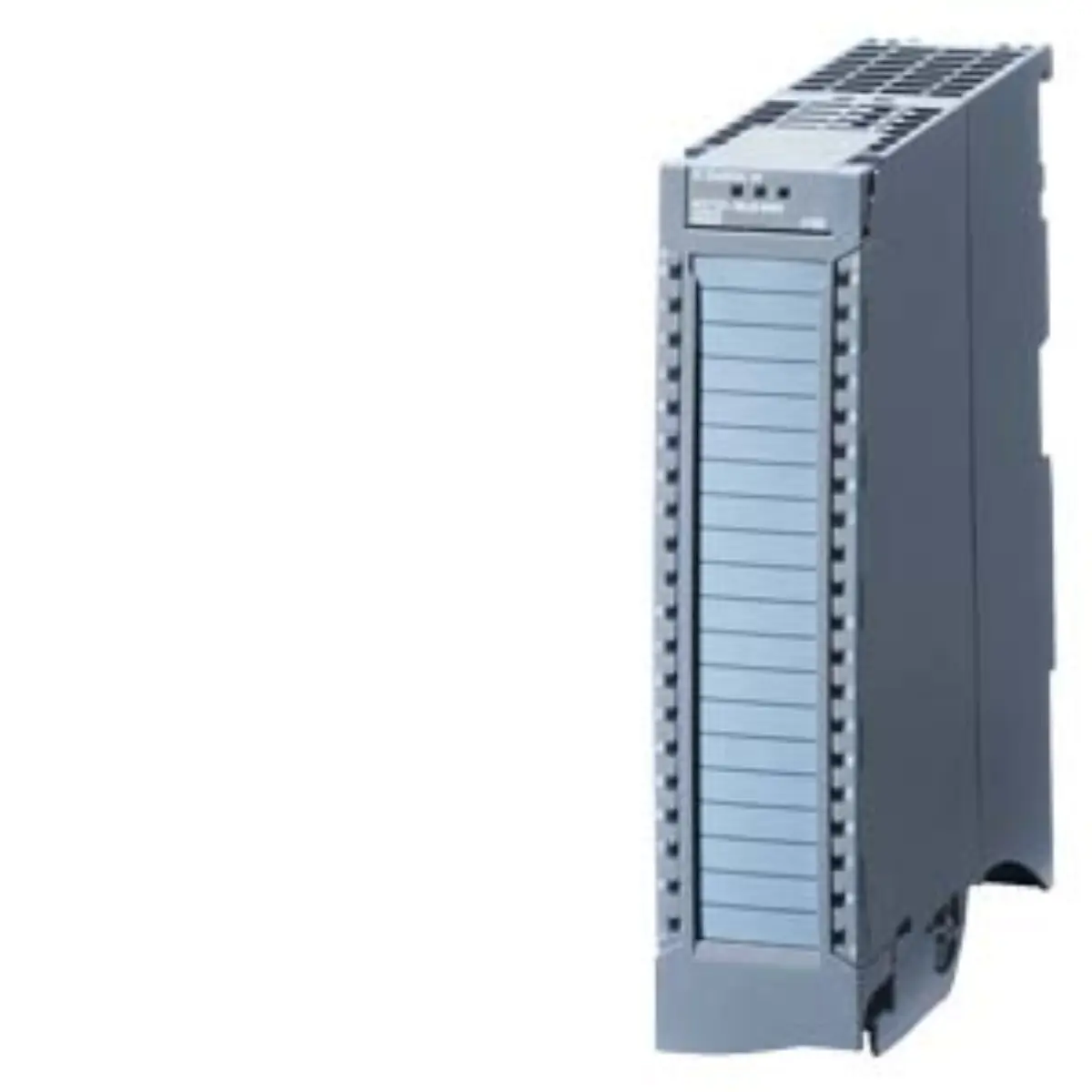

Siemens 6ES7521-1BH00-0AB0 SM 521 Digital Input Module

Part number

6ES7521-1BH00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SM 521 digital input modules

Lifecycle

Active Product

Dimensions

15.1 x 15.00 x 5.00 cm

Net weight

0.278 Kg

Source category

SM 521 digital input modules

• Input voltage specification is recorded at 24 V DC for standard digital signal recognition. Keep dimensions 15.1 x 15.00 x 5.00 cm and net weight 0.278 Kg unchanged while comparing project documents and product image evidence.
• The module offers sixteen distinct input channels organized in groups for efficient signal handling.
• Two specific inputs can be configured to function as counters for pulse tracking applications.
• Input delay ranges from 0.05 to 20 milliseconds allowing precise timing adjustments.
• Hardware interrupts are supported through front connectors requiring separate request of screw terminals.
• Diagnostics features are integrated to assist in monitoring module status and input signals.

• Brand designation is clearly marked as Siemens for the SIMATIC S7-1500 series. Use the source path Automation technology / Digital modules / SM 521 digital input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product class is listed as a standard product with specific review guideline parameters.
• Lifecycle status is currently active indicating ongoing production and support review details.
• Model identifier 6ES7521-1BH00-0AB0 corresponds to the SM 521 digital input variant.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.1 x 15.00 x 5.00 centimeters for mounting planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7521-1BH00-0AB0 record before publication.
• Net weight is specified at 0.278 kilograms for logistics and handling documentation purposes.
• Input type 3 aligns with IEC 61131 standards for digital signal classification.
• Front connector types such as screw terminals or push-in require separate inquiry preparation steps.
• Group configuration allows sixteen channels to be processed together for synchronized input reading.

• Visual inspection should confirm the presence of channel indicator lights on the module face. Review Siemens 6ES7521-1BH00-0AB0 as SM 521 digital input modules with source category SM 521 digital input modules, recorded lifecycle Active Product, and submitted model identity.
• Check the terminal block area to ensure proper alignment for front connector attachment.
• Verify labeling clarity on the module housing for accurate part number identification.
• Examine the DIN rail mounting clip for secure installation readiness in control panels.

• Review project documentation to confirm the need for sixteen-channel digital input capacity.
• Verify that the control system architecture supports SIMATIC S7-1500 module integration requirements.
• Identify whether hardware interrupts are necessary for specific high-speed signal processing tasks.
• Prepare specifications for the required front connector type to ensure proper signal connection.

• Confirm that the 24 V DC input range matches the field device signal levels.
• Ensure that the input delay settings meet the timing requirements of the application.
• Verify that the counter functionality is utilized correctly if high-frequency pulse counting is needed.
• Check that the separate front connector request is included in the overall project scope.
