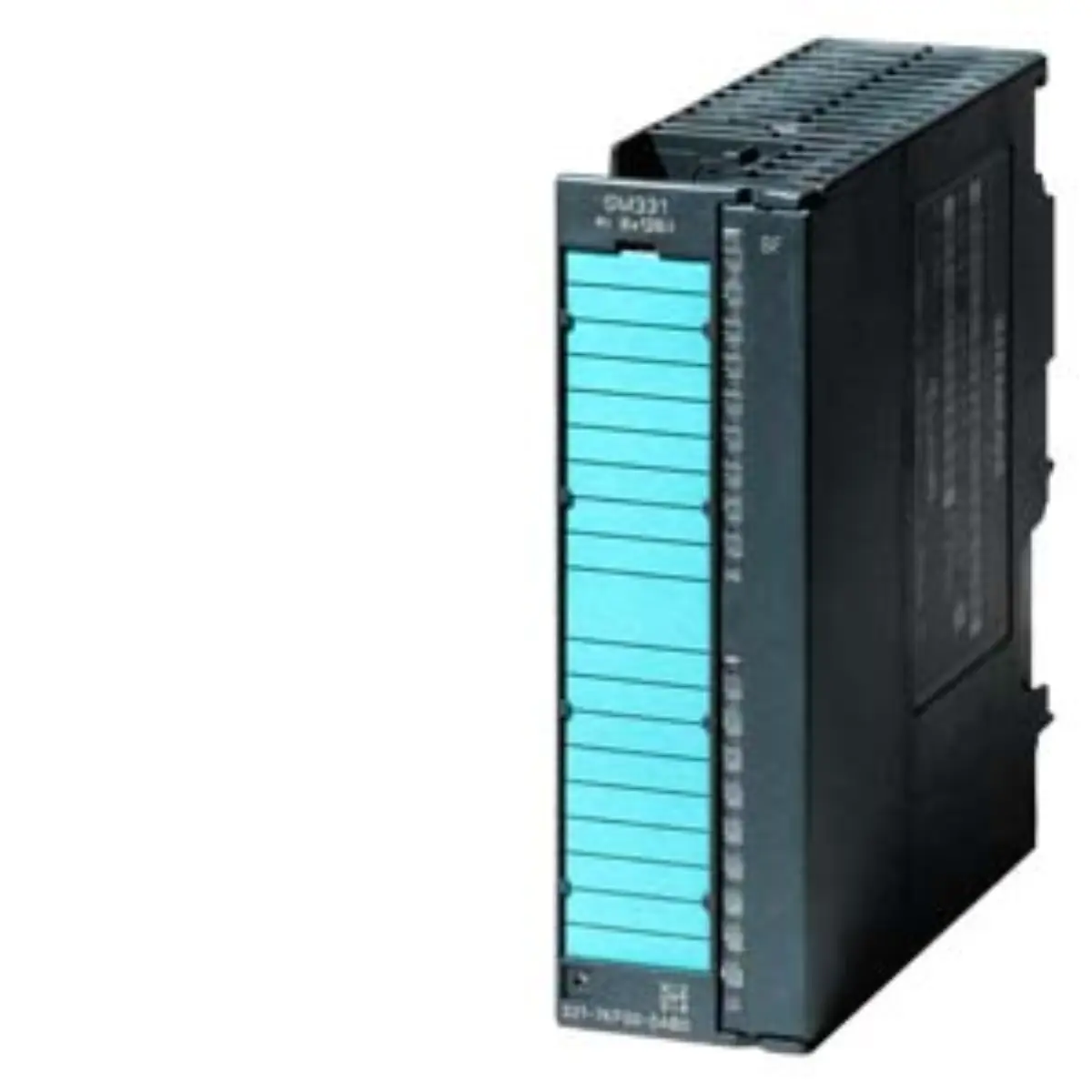

Siemens 6ES7331-7NF10-0AB0 Analog Input Module Inquiry

Part number

6ES7331-7NF10-0AB0

Brand

Siemens

Category

I/O Modules

Product type

SIMATIC S7-300, analog input SM 331, isolated, 8 AI

Lifecycle

Prod. Cancellation

Dimensions

15.2 x 12.8 x 5.2 cm

Net weight

0.326 Kg

• The module features eight analog input channels for comprehensive signal monitoring across different process variables. Keep dimensions 15.2 x 12.8 x 5.2 cm and net weight 0.326 Kg unchanged while comparing project documents and product image evidence.
• Input ranges include plus/minus five volts, plus/minus ten volts, and standard current loops for versatile integration.
• Resolution is recorded at sixteen bits, ensuring high accuracy for sensitive industrial measurement tasks and data logging.
• Single-point grounding is specified with a sixty-volt common limit to maintain signal integrity and safety standards.
• Four-channel operation records a cycle time of ten milliseconds, optimizing performance for faster control loops.
• Eight-channel operation lists a cycle time between twenty-three and ninety-five milliseconds depending on configuration settings.

• Identify the product by the full part number 6ES7331-7NF10-0AB0 within Siemens SIMATIC S7-300 documentation.
• The normalized identifier 6ES73317NF100AB0 appears in certain digital catalogs and internal reference systems.
• This specific model belongs to the analog input signal module class within the broader S7-300 family.
• The hardware designation indicates an isolated input type, distinguishing it from non-isolated variants in the lineup.

Parameters are factual source fields retained for model review.

• Review the physical dimensions listed as fifteen point two by twelve point eight by five point two centimeters.
• The net weight is recorded at zero point three two six kilograms for logistics and mounting calculations.
• Check the connector specification which indicates a forty-pole interface for secure module rack attachment.
• Verify the input types supported, including single-ended and differential modes for various sensor connections.
• Note the lifecycle status as production cancellation when planning long-term system maintenance and upgrade strategies.

• Examine the front panel labeling to confirm the part number matches the inquiry details accurately.
• Inspect the terminal block area for signs of wear or damage if evaluating used hardware components.
• Check the LED indicators on the module face to understand status display configurations for diagnostics.
• Review the mounting rail clip mechanism to ensure proper installation procedures for the S7-300 rack system.

• Gather project documentation specifying the required input signals and voltage ranges for your automation setup.
• Prepare system diagrams showing the intended connection points for sensors and other field devices.
• List any specific environmental conditions or grounding requirements relevant to your facility's electrical infrastructure.
• Include current inventory details if seeking to replace existing modules in an active control cabinet.

• Confirm that the technical specifications align with your specific application requirements before submitting an inquiry.
• Cross-reference the cycle times with your PLC program scan rates to ensure system responsiveness.
• Verify the grounding scheme matches your plant's electrical safety standards and noise immunity needs.
• Consider the production cancellation status when evaluating long-term supply chain stability for this component.
