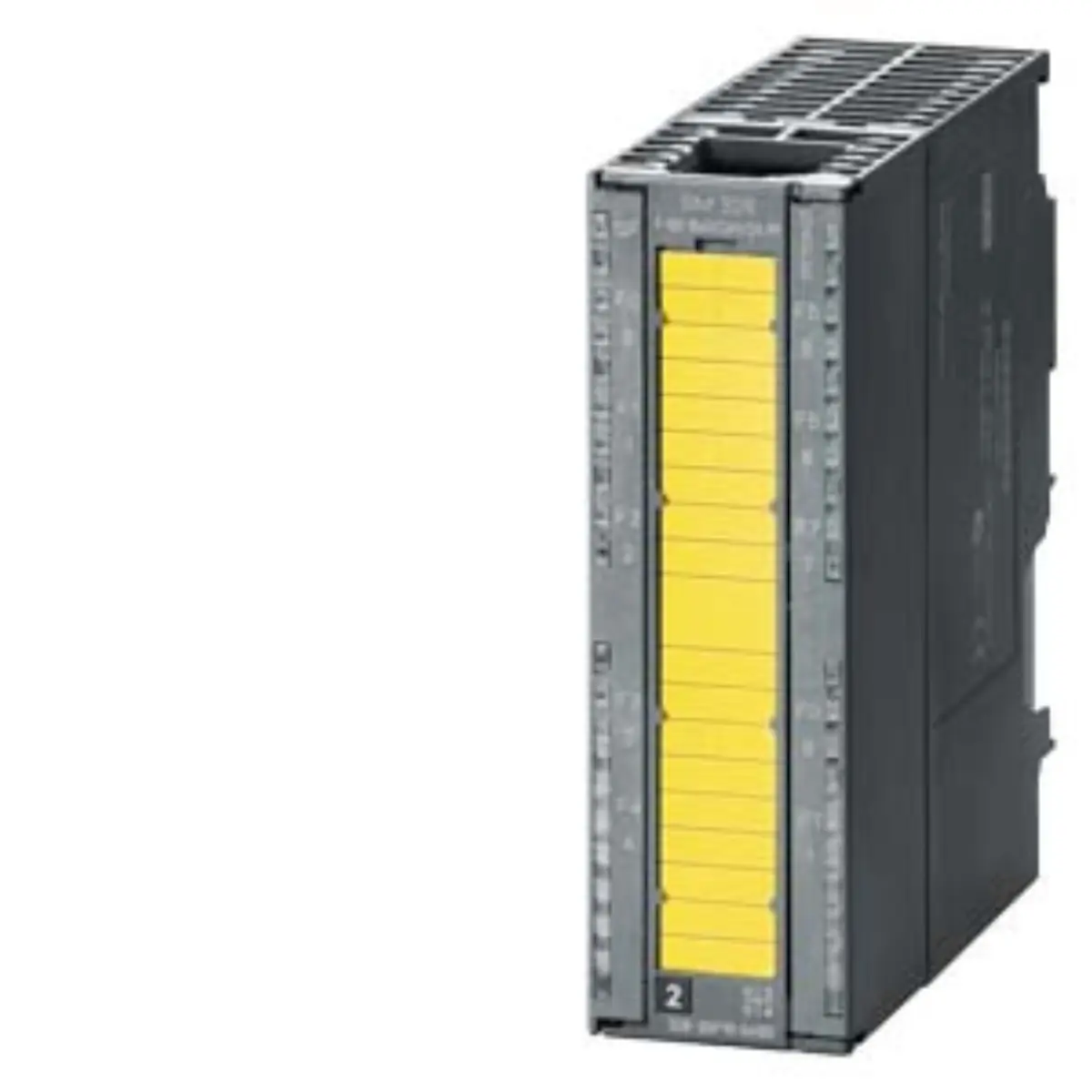

Siemens 6ES7326-2BF10-0AB0 Fail-Safe Digital Output Module

Part number

6ES7326-2BF10-0AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Prod. Cancellation

Dimensions

15.4 x 12.8 x 5.2 cm

Net weight

0.361 Kg

• Module type is recorded as a fail-safe digital output unit for SIMATIC S7F control systems. Keep dimensions 15.4 x 12.8 x 5.2 cm and net weight 0.361 Kg unchanged while comparing project documents and product image evidence.
• Channel configuration consists of ten individual outputs rated for 24 V DC supply voltage levels.
• Current rating per channel is specified as 2 Amperes with push-pull output technology for load switching.
• Safety classification includes support for EN 954-1 Category 4 and IEC 61508 SIL3 requirements.
• ISO 13849 compliance is noted with a Performance Level E designation for safety-related functions.
• Physical interface utilizes a single 40-pole connector for signal transmission and power distribution connections.

• Brand designation is confirmed as Siemens under the SIMATIC product family classification structure. Use the source path io-modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Part number 6ES7326-2BF10-0AB0 identifies the specific variant within the S7-300 module series lineup.
• Lifecycle status is listed as Production Cancellation, indicating end-of-life progression for this item.
• Product class field remains empty in the source data, requiring verification against internal records.

Parameters are factual source fields retained for model review.

• Dimensions are recorded as 15.4 cm in width, 12.8 cm in height, and 5.2 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7326-2BF10-0AB0 record before publication.
• Net weight is documented at 0.361 kilograms for shipping and handling calculation purposes.
• Input voltage specification aligns with standard 24 V DC industrial control system power supplies.
• Output current capacity is fixed at 2 A per channel for resistive or inductive loads.
• Connector type is standardized as a 40-pole interface for secure mechanical and electrical attachment.

• Visual inspection should confirm the presence of the 40-pole connector on the front panel.
• Labeling must display the full part number 6ES7326-2BF10-0AB0 for accurate inventory identification.
• Physical condition checks should verify no damage to the housing or connector pins.
• Diagnostic indicators should be visible on the module face for status monitoring during operation.

• Review project documents to confirm requirement for fail-safe digital output functionality in S7F systems.
• Verify that the 24 V DC voltage level matches existing control cabinet power distribution networks.
• Check that the 2 A per channel current rating satisfies the connected load specifications.
• Confirm that SIL3 and Category 4 safety integrity levels are necessary for the application.

• Source data indicates production cancellation status, which may impact long-term supply chain planning.
• Technical parameters are derived directly from the manufacturer's published specification sheet for this model.
• All dimensional and weight values are recorded as stated in the provided product fact set.
• Inquiry submission should reference the exact part number to ensure correct component identification.
