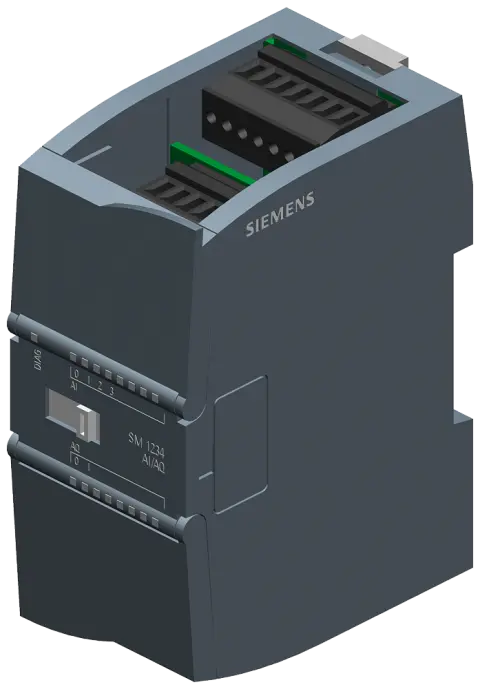

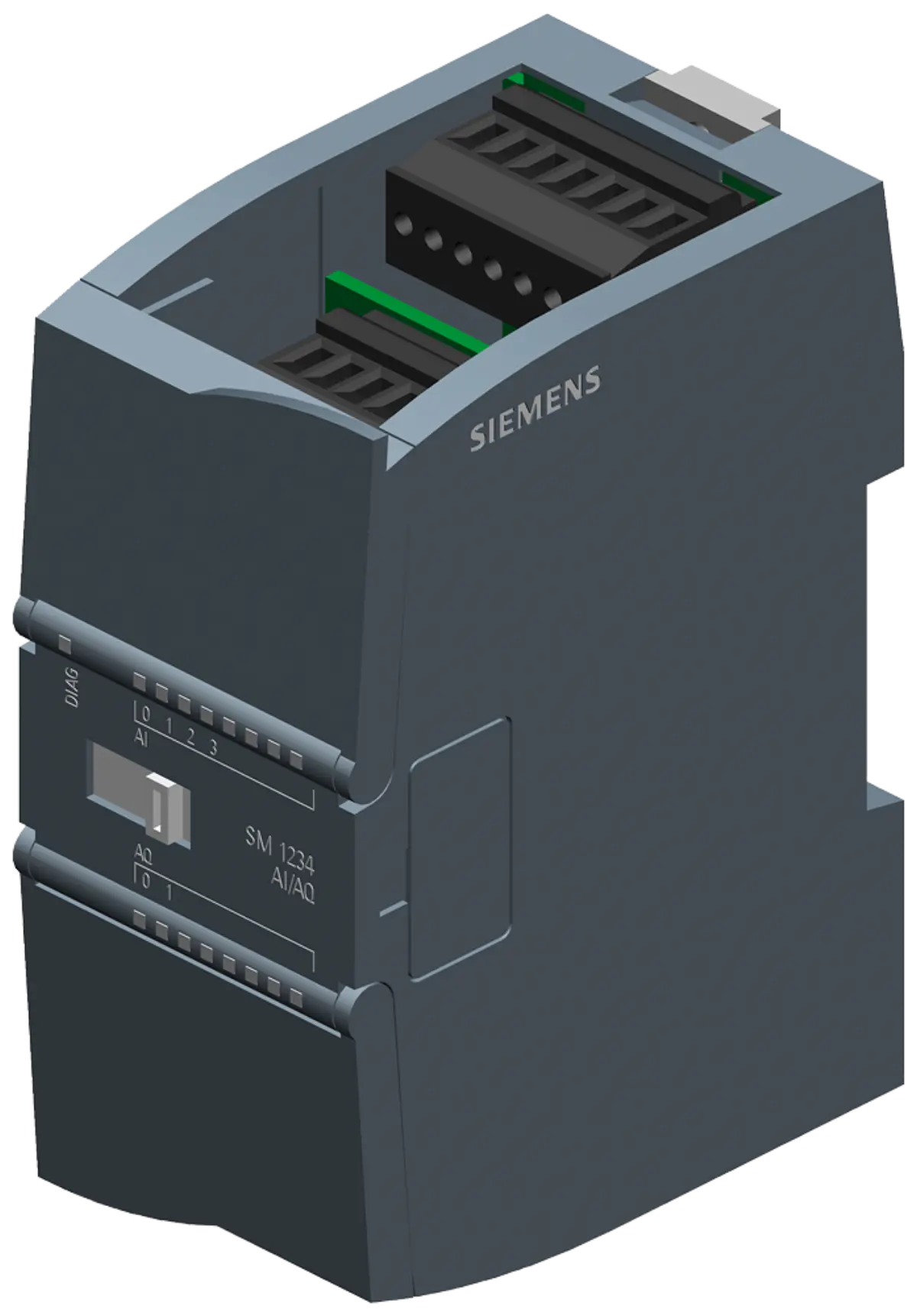

6ES7234-4HE32-0XB0 SIMATIC S7-1200 Analog Input/Output Module

Part number

6ES7234-4HE32-0XB0

Brand

Siemens

Category

I/O Modules

Product type

SM 1234 analog input/output modules

Lifecycle

Active Product

Dimensions

11.00 x 9.00 x 6.00 cm

Net weight

0.179 Kg

Source category

SM 1234 analog input/output modules

• The module provides four analog input channels for signal acquisition from various sensors. Keep dimensions 11.00 x 9.00 x 6.00 cm and net weight 0.179 Kg unchanged while comparing project documents and product image evidence.
• Two analog output channels allow for precise control of actuators and process variables.
• Input resolution reaches 14 bits when operating within the plus/minus ten volt range.
• Current inputs offer thirteen bit resolution for signals ranging from zero to twenty milliamps.
• Physical dimensions measure eleven by nine by six centimeters for standard rack mounting.
• Net weight is recorded at zero point one seven nine kilograms for handling calculations.

• Identify the part number 6ES7234-4HE32-0XB0 on the device label for verification. Use the source path Automation technology / Analog modules / SM 1234 analog input/output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The brand name Siemens indicates the manufacturer of this industrial automation component.
• Lifecycle status is listed as Active Product for ongoing project planning purposes.
• Category classification places this item under IO modules for analog signal processing.

Parameters are factual source fields retained for model review.

• Verify the required input type before submission, either voltage or current based application. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7234-4HE32-0XB0 record before publication.
• Check the resolution needs against the fourteen bit or thirteen bit specifications provided.
• Confirm physical space constraints match the eleven by nine by six centimeter footprint.
• Review power supply requirements to ensure application context with the S7-1200 system bus.
• Assess environmental conditions to ensure operation within the specified industrial temperature ranges.

• Examine the terminal block layout for correct wiring configuration during installation. Review Siemens 6ES7234-4HE32-0XB0 as SM 1234 analog input/output modules with source category SM 1234 analog input/output modules, recorded lifecycle Active Product, and submitted model identity.
• Note the LED indicators for status monitoring and diagnostic troubleshooting procedures.
• Inspect the housing design for DIN rail mounting application context and security.
• Review the labeling clarity for easy identification in complex control cabinet setups.

• Prepare your facility's technical drawings to show potential mounting locations clearly. Keep dimensions 11.00 x 9.00 x 6.00 cm and net weight 0.179 Kg unchanged while comparing project documents and product image evidence.
• List the specific sensor types connected to the analog input channels required.
• Define the actuator control signals needed for the two analog output channels.
• Include project timeline expectations to assist in scheduling the review process accurately.

• Ensure all technical questions are documented before initiating the formal inquiry process.
• Cross-reference the part number with existing system documentation for consistency checks.
• Validate the active product status to confirm long-term support review details for projects.
• Submit detailed requirements to receive the most accurate technical information and support.
