6ES7194-4AA00-0AA0 SIMATIC DP Interface Module

Part number

6ES7194-4AA00-0AA0

Brand

Siemens

Category

I/O Modules

Product type

IM 154-1 and IM 154-2

Lifecycle

Active Product

Dimensions

15.1 x 7.6 x 6.8 cm

Net weight

0.226 Kg

Source category

IM 154-1 and IM 154-2

• Physical dimensions are recorded at 15.1 x 7.6 x 6.8 cm, providing a compact footprint for installation in standard automation control cabinets.
• The net weight is listed as 0.226 Kg, allowing for straightforward handling during mounting procedures without requiring specialized lifting equipment or supports.

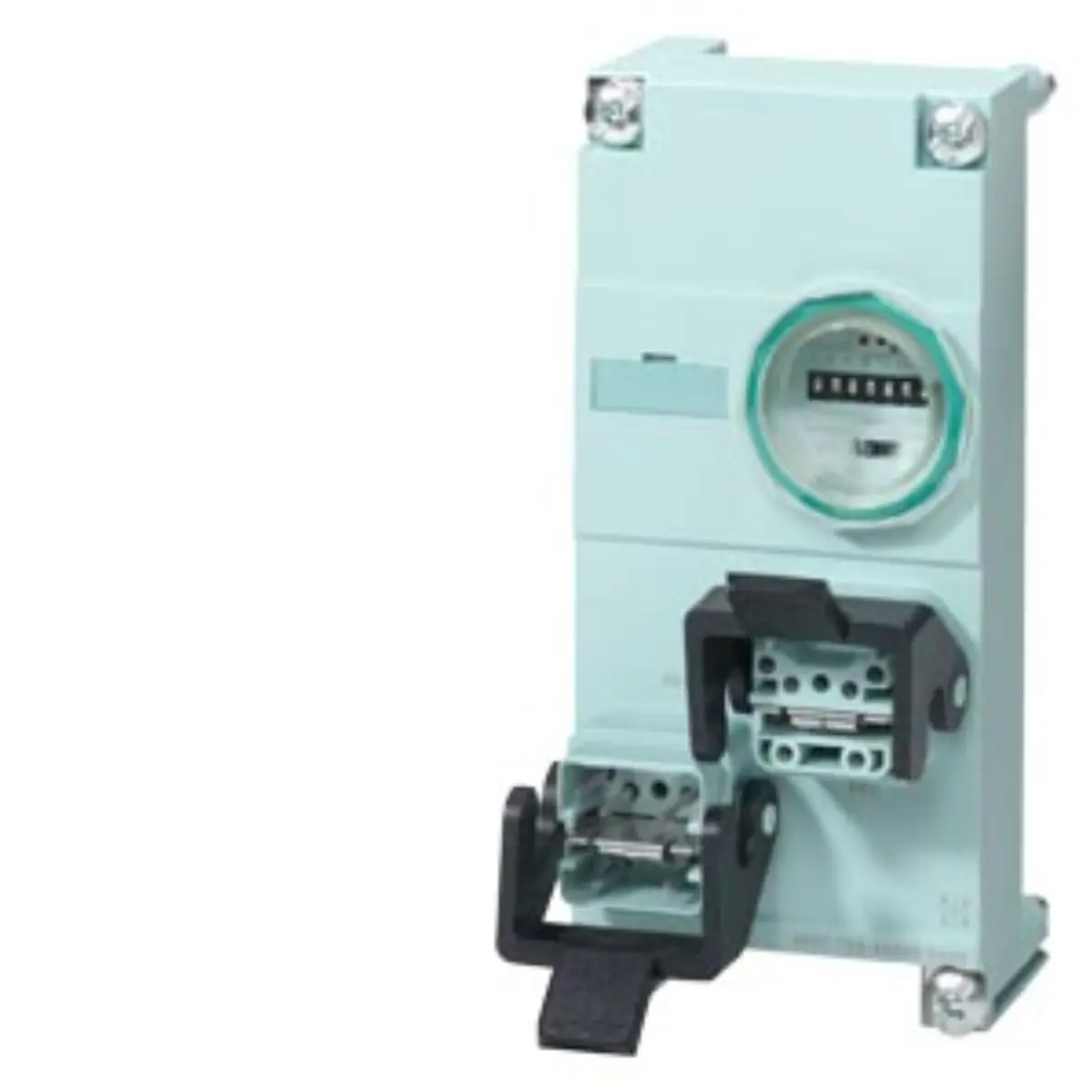

• Two ECOFAST CU ports enable direct RS-485 connectivity, supporting efficient network topology setup for distributed I/O applications in industrial environments.
• An integrated terminating resistor is included to maintain signal integrity on the PROFIBUS DP line, reducing the need for additional external components.
• The device functions as an interface module for the ET 200 Pro series, bridging communication between the central controller and peripheral devices.
• Product lifecycle status is currently active, though users should review the SIOS 109989704 document regarding planned product phase-out schedules.

• Identify the unit by the full part number 6ES7194-4AA00-0AA0 to ensure accurate matching with existing system documentation and technical drawings.
• The normalized identifier 6ES71944AA000AA0 may appear in digital databases or inventory management systems for streamlined search and retrieval processes.
• Classification under the brand Siemens confirms adherence to established industrial standards for programmable logic controllers and distributed I/O architectures.
• Categorization as an IM 154-1 and IM 154-2 component indicates its role within the specific product line of interface modules.
