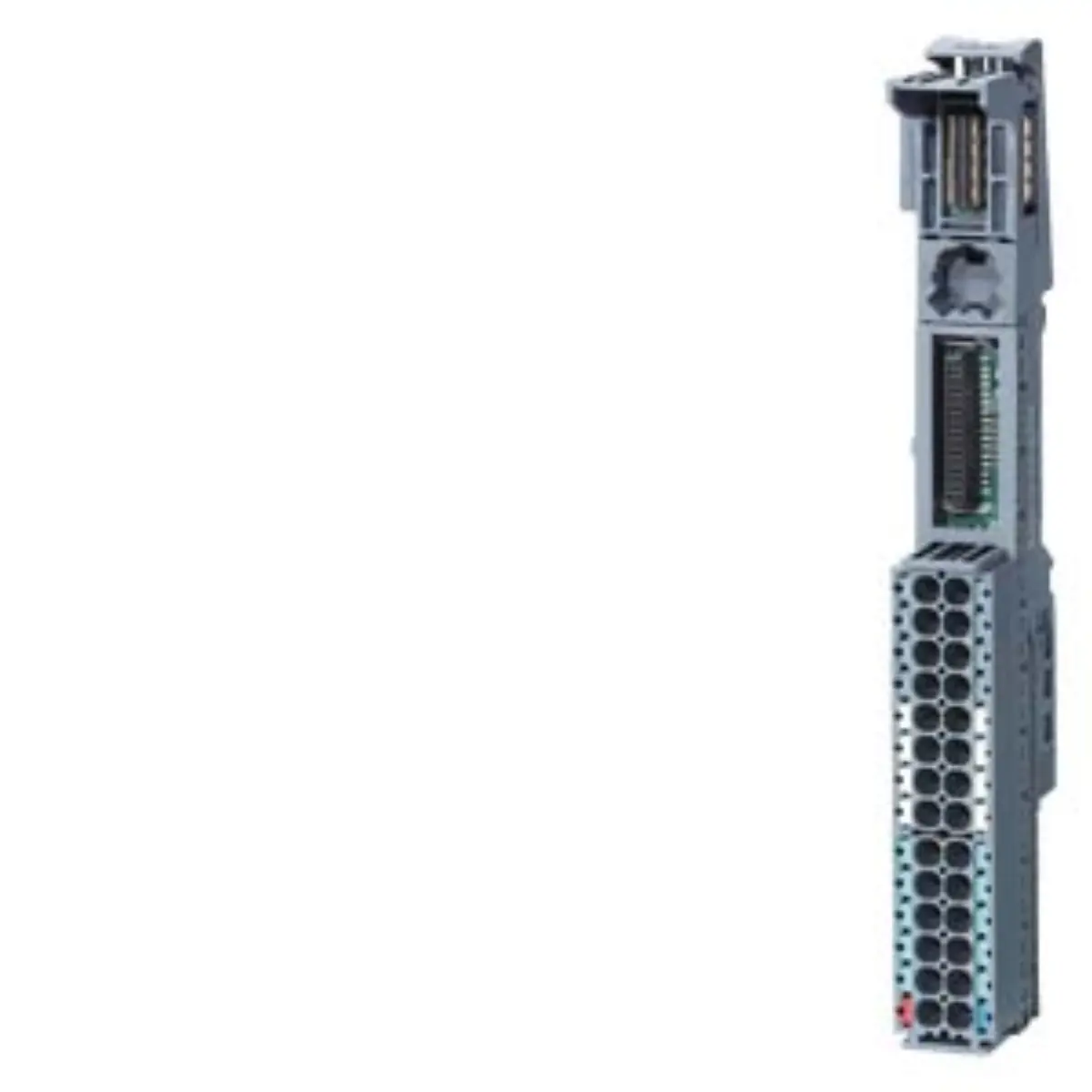

6ES7193-6BP40-0BA1 BaseUnit BU15-P16+A0+12B/T

Part number

6ES7193-6BP40-0BA1

Brand

Siemens

Category

I/O Modules

Product type

BaseUnits

Lifecycle

Active Product

Dimensions

14.8 x 4.2 x 2.9 cm

Net weight

0.059 Kg

Source category

BaseUnits

• Physical dimensions are recorded as 14.8 cm width, 4.2 cm height, and 2.9 cm depth for spatial planning. Keep dimensions 14.8 x 4.2 x 2.9 cm and net weight 0.059 Kg unchanged while comparing project documents and product image evidence.
• The net weight is listed at 0.059 kg, indicating a lightweight construction listed for dense rack installations.
• Terminal type utilizes push-in connections, facilitating rapid and tool-assisted wiring operations during assembly phases.
• Configuration includes two additional 5-pin add-on terminals, expanding the recorded connection points for signals.
• Bridging is implemented on the left side, ensuring proper electrical continuity between adjacent units in the series.
• Temperature acquisition functionality is integrated directly into the base unit design for environmental monitoring tasks.

• Brand designation is clearly marked as Siemens, identifying the manufacturer of this industrial automation component. Use the source path Automation technology / SIMATIC ET 200SP / BaseUnits to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification falls under the BaseUnits category within the broader SIMATIC ET 200SP product family structure.
• Lifecycle status is documented as Active Product, confirming current manufacturing and support review details for inquiry preparation.
• Source categorization places this item specifically under Automation technology and IO Modules for precise indexing.

Parameters are factual source fields retained for model review.

• Width measurement is specified as 15 mm for the BU type A1 configuration in standard rack layouts.
• Height dimension is noted as 141 mm, providing vertical space requirements for mounting and clearance checks.
• Terminal arrangement includes bridged connections to the left, which must be verified against system design schematics.
• Add-on terminal count is fixed at two units with five pins each, defining the expansion capacity.
• Temperature sensor integration allows for direct thermal data collection without requiring separate external sensing hardware.

• Visual inspection should confirm the presence of push-in terminals on the front face of the unit.
• Check for left-side bridging connectors to ensure correct orientation and electrical path continuity in assembly.
• Verify the labeling matches the part number 6ES7193-6BP40-0BA1 for accurate inventory and identification purposes.
• Examine the overall form factor to ensure it aligns with the stated 15 mm width specification.

• Review project documentation to confirm the need for temperature acquisition features in the specific application zone.
• Verify rack layout constraints to ensure the 141 mm height fits within the designated mounting space.
• Check wiring diagrams to confirm the push-in terminal type meets the cable gauge requirements of the site.
• Confirm the active lifecycle status aligns with long-term maintenance and support expectations for the installation.

• Ensure all physical dimensions match the facility's rack specifications before proceeding with detailed engineering reviews.
• Cross-reference the push-in terminal specifications with the installed cable types to verify mechanical connection integrity.
• Validate the temperature acquisition feature requirements against the process control needs of the specific production line.
• Confirm the left-side bridging configuration matches the electrical design to prevent signal interference or loss.
