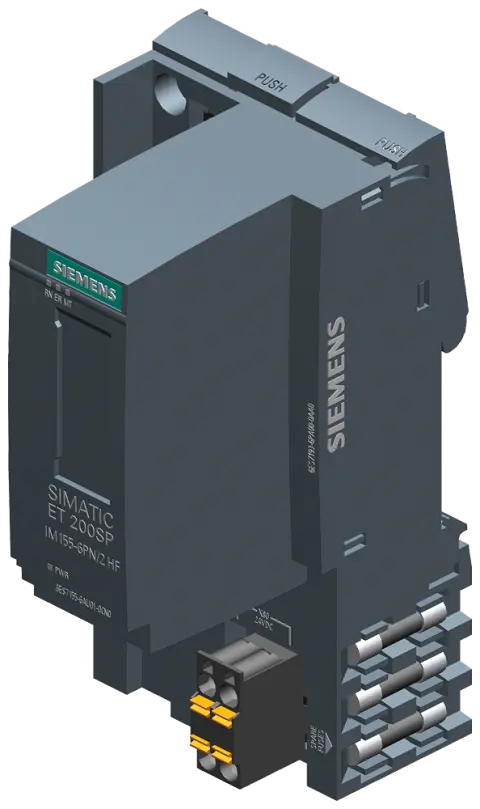

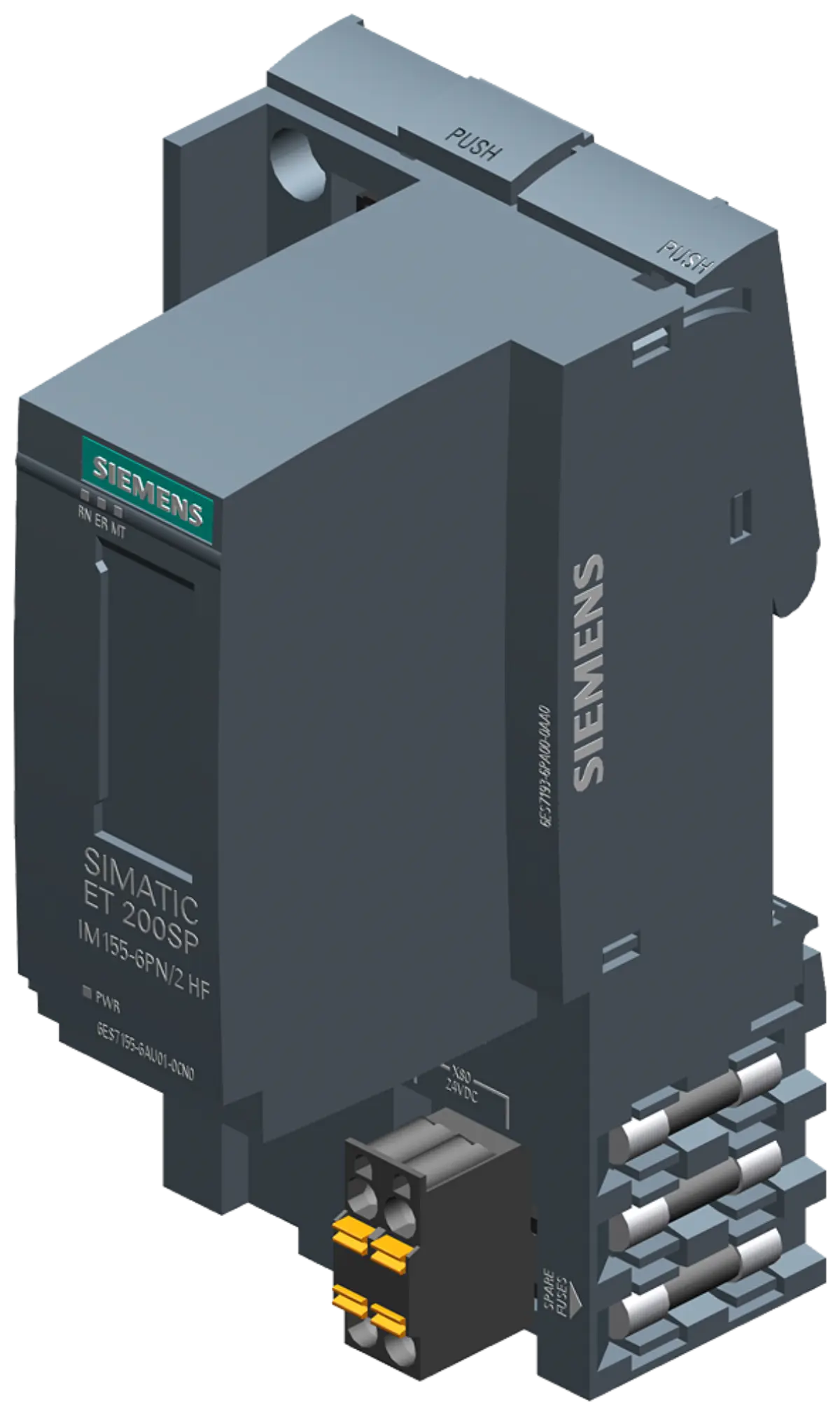

6ES7155-6AU01-0CN0 SIMATIC ET 200SP Interface Module

Part number

6ES7155-6AU01-0CN0

Brand

Siemens

Category

I/O Modules

Product type

IM 155-6

Lifecycle

Active Product

Dimensions

12.8 x 10.6 x 6.8 cm

Net weight

0.171 Kg

Source category

IM 155-6

• This module operates as a two-port PROFINET interface, enabling daisy-chain network topologies for efficient device connectivity.
• It accommodates up to 64 I/O modules and 16 ET 200AL modules within a single slot configuration for expanded capacity.
• The hardware supports S2 redundancy features, ensuring continuous operation and minimizing downtime during critical process phases.
• Multi-hotswap capability allows for module spare part record without powering down the entire system, enhancing maintenance flexibility.
• Isochronous mode support ensures precise synchronization of data transmission, which is essential for motion control applications.
• A processing cycle time of 0.25 milliseconds is recorded, indicating rapid data handling for real-time control tasks.

• The part number 6ES7155-6AU01-0CN0 identifies the specific variant of the IM 155-6PN/2 High Feature interface module.
• Brand designation Siemens confirms the manufacturer origin for the SIMATIC ET 200SP product line components.
• Lifecycle status is listed as Active Product, indicating ongoing manufacturing and support for this specific model identifier.
• The normalized part number 6ES71556AU010CN0 serves as a standardized reference for database indexing and search queries.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 12.8 x 10.6 x 6.8 centimeters, defining the spatial footprint for rack mounting.
• Net weight is specified at 0.171 kilograms, contributing to load calculations for DIN rail or panel installations.
• Optional PN strain relief features may be included to protect cable connections against mechanical stress in industrial settings.
• The package includes a server module, which is integral for managing communication tasks within the PROFINET network structure.

• Visual inspection should confirm the presence of two distinct PROFINET ports on the front face of the unit.
• Labeling must clearly display the full part number 6ES7155-6AU01-0CN0 for accurate identification during physical verification.
• Check for any visible signs of physical damage or wear that might indicate prior handling or installation issues.
• Ensure that the LED indicators are intact and properly aligned with the housing for status monitoring purposes.

• Review project documentation to verify that the PROFINET interface requirements align with the module's two-port specification.
• Confirm that the network topology supports the multi-hotswap functionality required for your specific maintenance procedures.
• Assess whether the S2 redundancy feature is necessary for your application to ensure system reliability standards.
• Prepare technical questions regarding the isochronous mode performance if your application demands precise timing synchronization.

• Verify that the submitted model matches the exact part number 6ES7155-6AU01-0CN0 before proceeding with any inquiry.
• Cross-reference the technical summary points with your system architecture to ensure functional alignment with project needs.
• Document any specific environmental constraints that might affect the physical dimensions or weight considerations of the installation.
• Ensure all inquiry details are complete to facilitate a thorough review of the product parameters by specialists.
