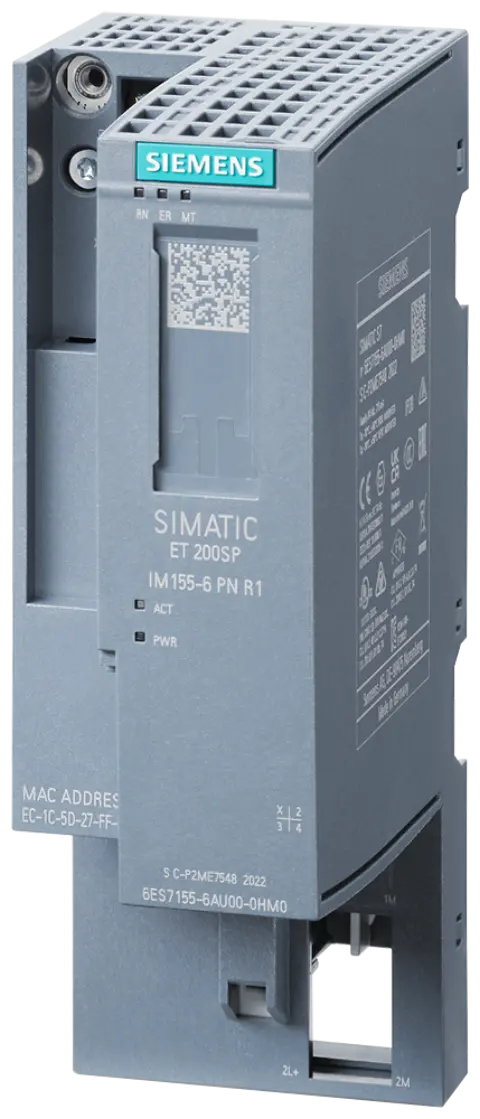

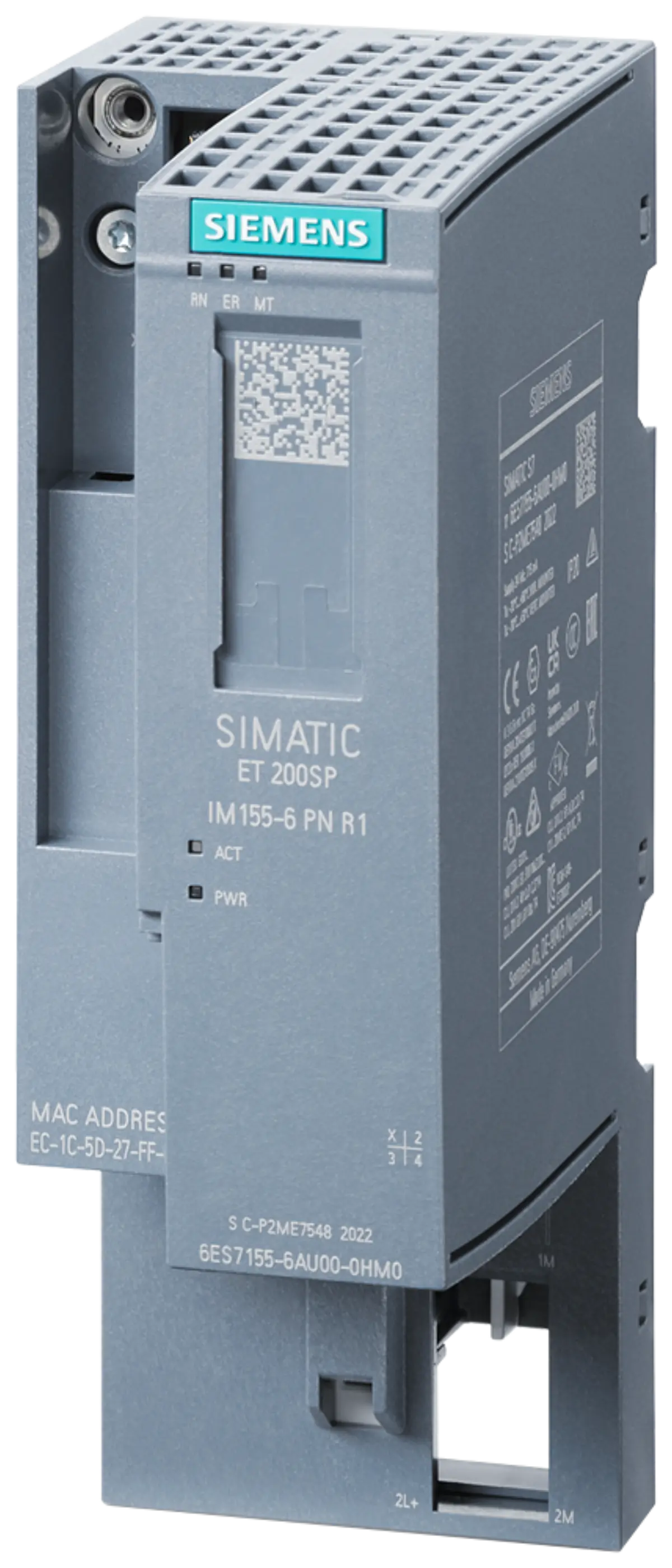

6ES7155-6AU00-0HM0 SIMATIC ET 200SP Interface Module Details

Part number

6ES7155-6AU00-0HM0

Brand

Siemens

Category

I/O Modules

Product type

IM 155-6

Lifecycle

Active Product

Dimensions

12.2 x 8.3 x 6.3 cm

Net weight

0.225 Kg

Source category

IM 155-6

• This interface module operates as a PROFINET device supporting two-port communication architecture for robust network integration.
• The hardware accommodates up to 64 I/O modules within a single slot configuration for scalable expansion.
• R1 redundancy capability ensures high review details by maintaining system function during specific component failures or switches.
• Multi-hot swap technology allows module spare part record while the system remains powered and operational without interruption.
• A cycle time of approximately 1 millisecond enables fast data processing for real-time control applications.
• PN security class 1 designation indicates compliance with foundational industrial network security standards for protection.

• The part number 6ES7155-6AU00-0HM0 uniquely identifies this specific IM 155-6 PN R1 variant within the Siemens portfolio.
• Brand attribution is clearly listed as Siemens, confirming the manufacturer origin for all technical documentation reviews.
• Lifecycle status is recorded as Active Product, indicating ongoing production and standard technical support review details.
• The normalized part number 6ES71556AU000HM0 serves as a standardized reference for database indexing and search queries.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 12.2 x 8.3 x 6.3 cm, providing spatial constraints for panel mounting.
• Net weight is specified at 0.225 Kg, assisting in logistical planning and rack load calculations.
• Category classification places this item under IO Modules, specifically within the Interface modules sub-segment.
• Source path indicates hierarchy from Automation technology down to SIMATIC ET 200SP and IM 155-6.
• Redundancy type is defined as R1, which dictates specific wiring and configuration requirements for the network.

• Visual documentation typically displays the front panel with port indicators and slot configuration labels.
• Side views often highlight the DIN rail mounting clip mechanism and overall compact form factor.
• Rear connections show the PROFINET ports and terminal blocks for power and signal interfaces.
• Labeling on the unit body confirms the full part number and Siemens branding for verification.

• Review project documentation to confirm PROFINET network topology requirements and bandwidth needs for the application.
• Verify physical space constraints against the recorded dimensions to ensure proper fit within the control cabinet.
• Check existing I/O module inventory to determine if additional slots are needed for expansion plans.
• Confirm redundancy strategy alignment with R1 requirements to ensure system design matches module capabilities.

• All technical parameters are sourced directly from the manufacturer's published product specifications and datasheets.
• Users should cross-reference these details with their specific engineering drawings before finalizing system designs.
• Inquiries are encouraged for complex integration scenarios requiring detailed pinout diagrams or configuration guides.
• Regular updates to product documentation may occur; always verify the latest version for critical projects.
