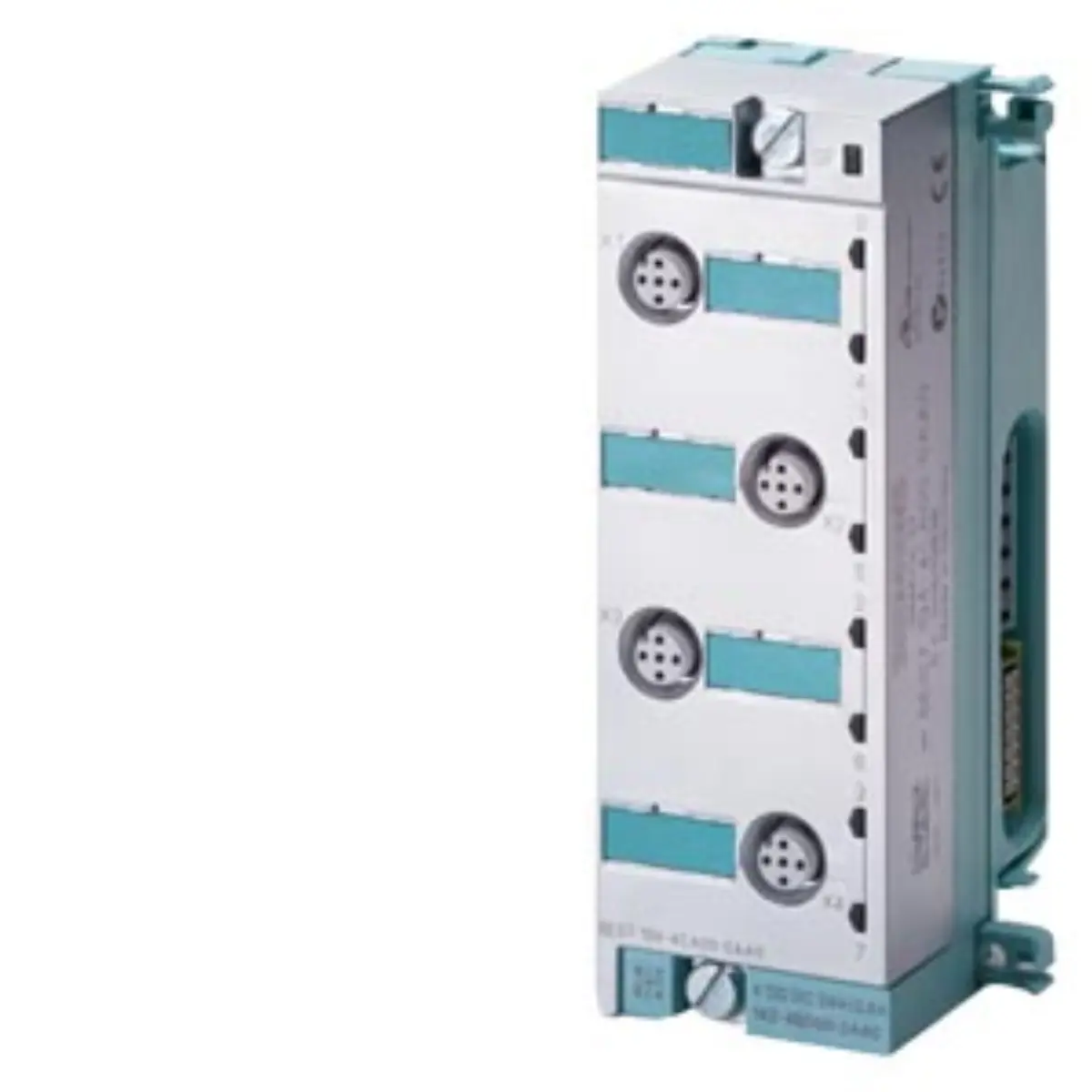

6ES7145-4FF00-0AB0 SIMATIC DP Analog Expansion Module

Part number

6ES7145-4FF00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

Analog expansion modules

Lifecycle

Active Product

Dimensions

13.7 x 7.4 x 6.6 cm

Net weight

0.181 Kg

Source category

Analog expansion modules

• The device functions as an analog expansion module for the ET 200 PRO system architecture. Keep dimensions 13.7 x 7.4 x 6.6 cm and net weight 0.181 Kg unchanged while comparing project documents and product image evidence.
• It delivers four analog output channels configured for high-performance voltage signal transmission.
• Supported output voltage ranges include plus-minus ten volts, zero to ten volts, and one to five volts.
• Integrated channel diagnostics allow for continuous monitoring of individual output signal states.
• The module requires a separate connection module, specifically the IO 6ES7194-4..00-0AA0, for proper installation.
• Physical dimensions are recorded at thirteen point seven by seven point four by six point six centimeters.

• Identify the product by the full part number 6ES7145-4FF00-0AB0 in all documentation. Use the source path Automation technology / I/O modules / Analog expansion modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Recognize the normalized identifier 6ES71454FF000AB0 for database matching and cross-referencing purposes.
• Note that this item belongs to the broader category of analog expansion modules.
• Confirm the brand attribution to Siemens for accurate sourcing and technical reference checks.
