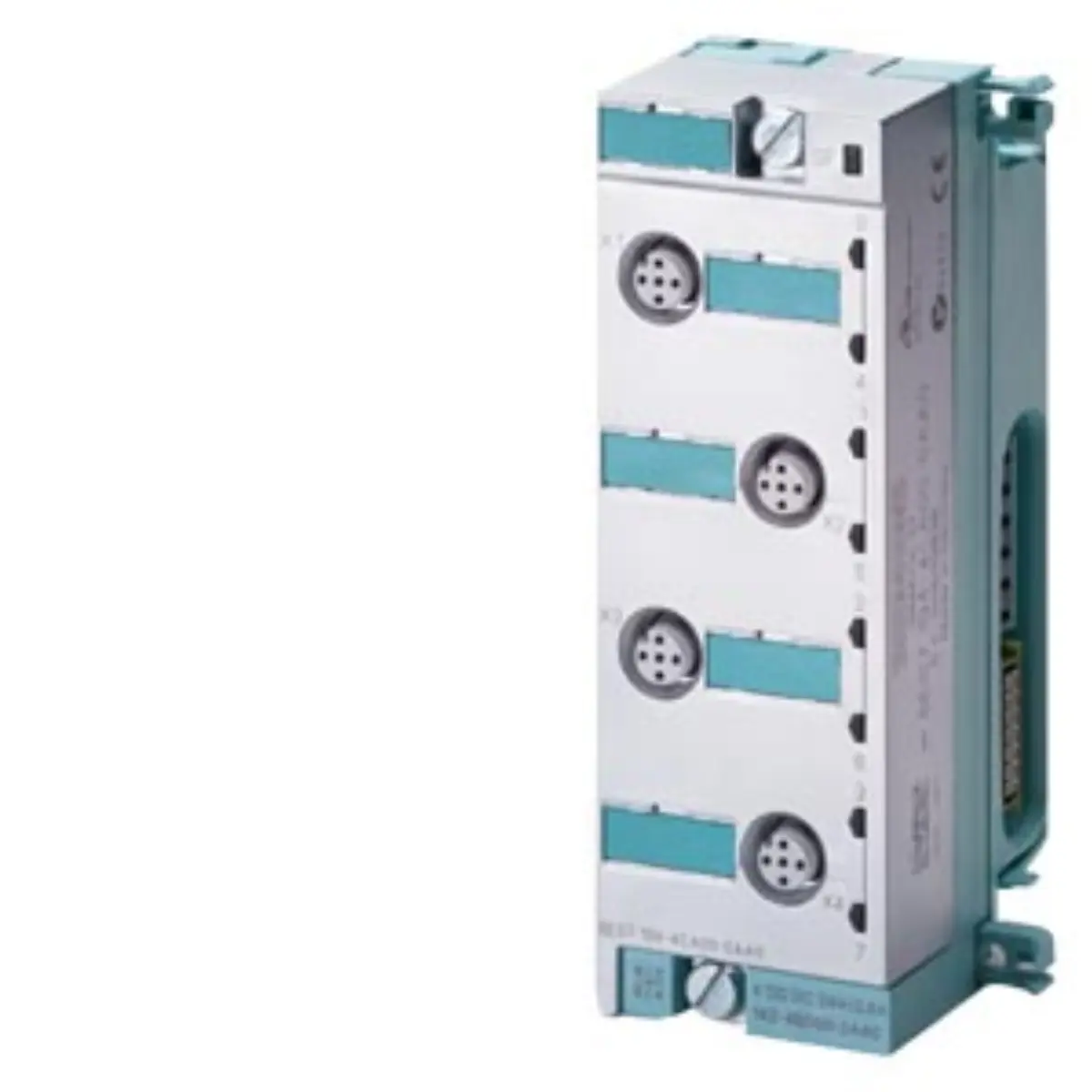

6ES7144-4PF00-0AB0 SIMATIC DP Electronics Module

Part number

6ES7144-4PF00-0AB0

Brand

Siemens

Category

I/O Modules

Product type

Analog expansion modules

Lifecycle

Active Product

Dimensions

14.7 x 7.3 x 6.8 cm

Net weight

0.177 Kg

Source category

Analog expansion modules

• Four analog input channels support thermocouple types B, E, J, K, L, N, R, S, and T for versatile temperature measurement applications.
• Voltage input range is specified at plus or minus eighty millivolts, allowing for precise low-level signal acquisition in sensitive instrumentation setups.
• Channel diagnostics are included to monitor signal integrity and detect faults, ensuring reliable operation and simplified troubleshooting during system maintenance.
• The module requires a separate connection module, identified as IO 6ES7194-4..00-0AA0, which must be request independently for proper physical installation.
• Bus module integration is included within the package, facilitating communication with the central controller through standard industrial fieldbus protocols.
• Physical dimensions measure fourteen point seven by seven point three by six point eight centimeters, providing a compact footprint for control cabinet layouts.

• The part number 6ES7144-4PF00-0AB0 uniquely identifies this specific analog expansion module variant within the Siemens SIMATIC product portfolio.
• Normalized part number 6ES71444PF000AB0 removes hyphens for database indexing and automated inquiry preparation system matching purposes.
• Brand designation Siemens confirms the manufacturer origin, aligning with global standards for industrial automation hardware reliability and support.
• Lifecycle status listed as Active Product indicates ongoing manufacturing and support review details for new project implementations and system expansions.
