Siemens 6ES7143-6BH00-0BB0 Digital Input Module Inquiry

Part number

6ES7143-6BH00-0BB0

Brand

Siemens

Category

I/O Modules

Product type

SIMATIC ET 200eco PN, DIQ 16x 24 V DC/0

Lifecycle

Active Product

Dimensions

22.6 x 5.7 x 5.5 cm

Net weight

0.818 Kg

• The module provides sixteen digital inputs operating at 24 V DC with a current capacity of 0.5 A per channel.
• It utilizes M12-L connectors for both power and signal transmission, featuring eight M12 ports for double assignment flexibility.
• Input delay settings range from 0.05 to 20 milliseconds, allowing precise timing adjustments for different sensor types and applications.
• The device supports source output functionality with PNP switching to positive potential, ensuring application context with standard industrial control systems.
• Channel diagnostics include wire break detection, encoder power supply short-circuit identification, and output short-circuit monitoring for enhanced safety.
• The housing offers a high degree of protection rated IP67 and IP69K, making it listed for harsh industrial environments.

• Identify this unit as a SIMATIC ET 200eco PN digital input module within the broader automation portfolio.
• The part number 6ES7143-6BH00-0BB0 corresponds specifically to the DIQ 16x 24 V DC/0.5 A/2 A configuration.
• This model is classified under input type 3 according to IEC 61131 standards for digital input modules.
• The product lifecycle status is recorded as Active Product, indicating ongoing support and documentation review details.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 22.6 x 5.7 x 5.5 cm, fitting standard DIN rail mounting configurations.
• The net weight of the module is listed as 0.818 Kg, which is relevant for structural load calculations.
• Network protocols supported include PN IO, Ethernet/IP, and Modbus TCP for flexible communication integration.
• Features such as MSI, MSO, MRP, and S2 redundancy are recorded for high-review details network topologies.

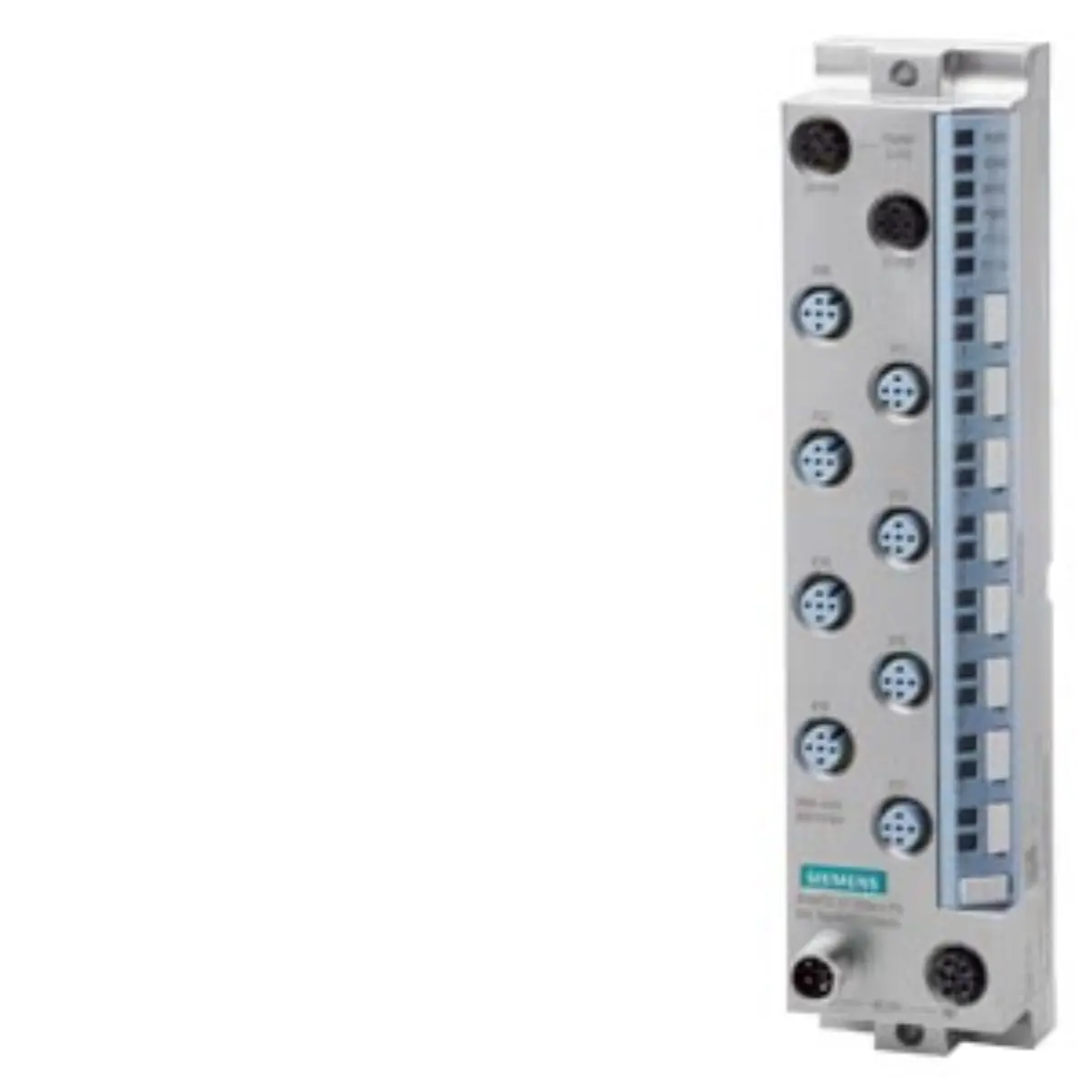

• Visual inspection should confirm the presence of eight M12 connector interfaces on the front panel of the unit.
• Check that the labeling clearly displays the full part number 6ES7143-6BH00-0BB0 for accurate identification purposes.
• Verify the condition of the housing to ensure no physical damage affects the IP67/IP69K sealing integrity.
• Confirm that the LED indicators for channel status and diagnostic functions are visible and undamaged.

• Review your project documents to determine the required number of digital input channels for your specific application.
• Verify that your control system supports the necessary network protocols such as PN IO or Modbus TCP.
• Check environmental conditions to ensure the IP67/IP69K rating meets the protection needs of your installation site.
• Prepare detailed technical specifications including voltage levels and sensor types to facilitate an accurate sourcing response.

• Ensure all technical parameters align with your existing infrastructure before submitting the inquiry form.
• Cross-reference the input delay settings with your sensor specifications to optimize response times effectively.
• Consider the redundancy features like MRP and S2 if your application demands high network reliability.
• Document any specific diagnostic requirements to help inquiry team provide the most relevant technical support details.
