6ES7143-5AF00-0BA0 Digital I/O Module Specifications

Part number

6ES7143-5AF00-0BA0

Brand

Siemens

Category

I/O Modules

Product type

Digital I/O modules

Lifecycle

Active Product

Dimensions

18.00 x 4.5 x 4.00 cm

Net weight

0.167 Kg

Source category

Digital I/O modules

• The device operates as a digital I/O module within the SIMATIC ET 200AL family structure. Keep dimensions 18.00 x 4.5 x 4.00 cm and net weight 0.167 Kg unchanged while comparing project documents and product image evidence.
• It features four digital inputs and four digital outputs for comprehensive signal management capabilities.
• The module supports 24 V DC voltage levels for both input and output signal processing.
• Each output channel provides a current capacity of 0.5 A for connected load devices.
• Physical connectivity is achieved through four M12 connectors ensuring secure and reliable connections.
• The housing offers a degree of protection rated at IP67 for dust and water resistance.

• Identify the unit by the full part number 6ES7143-5AF00-0BA0 printed on the label. Use the source path Automation technology / SIMATIC ET 200AL / I/O modules / Digital I/O modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Verify the brand designation as Siemens to confirm manufacturer origin and quality standards.
• Check the lifecycle status listed as Active Product for ongoing support and documentation.
• Confirm the product class falls under Digital I/O modules for correct categorization.

Parameters are factual source fields retained for model review.

• Record the physical dimensions as 18.00 cm in length, 4.5 cm in width, and 4.00 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7143-5AF00-0BA0 record before publication.
• Note the net weight of the module is approximately 0.167 Kg for logistics planning.
• Review the electrical specification requiring 24 V DC supply for proper module operation.
• Examine the output current limit of 0.5 A per channel for load calculations.
• Inspect the connector type specified as M12 for wiring interface application context checks.

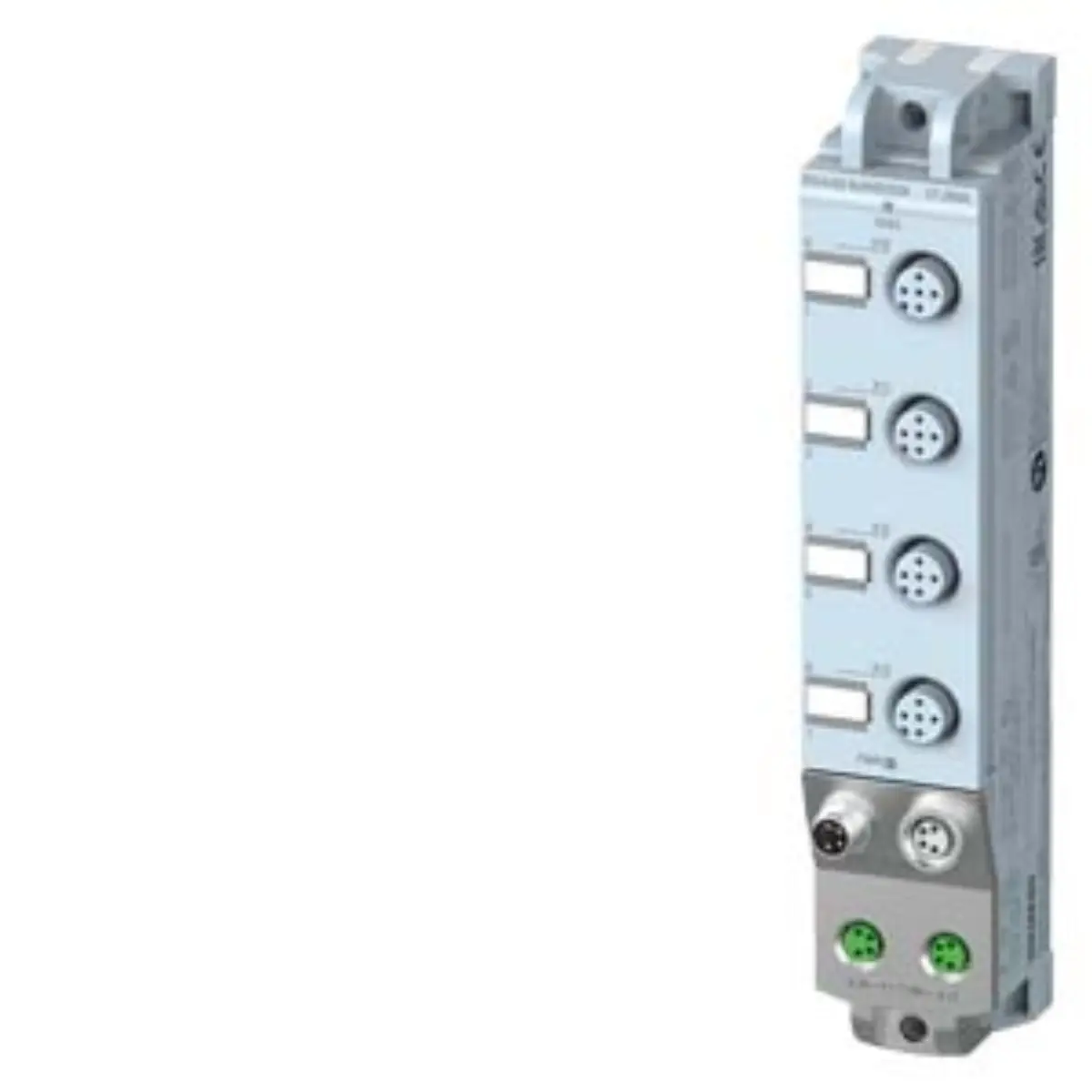

• Ensure images clearly display the front panel with visible terminal blocks and labels.
• Verify that the M12 connector ports are distinct and identifiable in close-up shots.
• Check that the part number label is legible and correctly positioned on the housing.
• Confirm that the overall form factor matches the stated dimensions of 18x4.5x4 cm.

• Prepare the exact part number 6ES7143-5AF00-0BA0 for submission in the inquiry form.
• Document the required quantity needed for your specific automation project scope.
• Specify any additional accessories or mounting hardware required for installation procedures.
• Include project timeline details to assist in reviewing technical support review details.

• Cross-reference the technical data sheet for detailed electrical characteristics and timing diagrams.
• Validate the IP67 rating against environmental conditions present in your installation area.
• Confirm the M12 connector configuration matches your existing cabling infrastructure requirements.
• Review the active product status to ensure continued review details of documentation and support.
