6ES7142-6BG00-0BB0 SIMATIC ET 200eco PN Digital Output Module

Part number

6ES7142-6BG00-0BB0

Brand

Siemens

Category

I/O Modules

Product type

Digital I/O devices

Lifecycle

Active Product

Dimensions

22.3 x 5.5 x 5.5 cm

Net weight

0.809 Kg

Source category

Digital I/O devices

• Eight digital output channels operate at 24 V DC with a maximum current of 0.5 A per channel.
• Connectivity utilizes eight M12 connectors supporting both single and double assignment wiring configurations for flexible installation.
• The module delivers source output functionality with switching to positive potential, ensuring reliable signal transmission to actuators.
• Integrated channel diagnostics detect wire break conditions and short circuits at the output, enhancing system safety and maintenance.
• Physical dimensions measure 22.3 x 5.5 x 5.5 cm with a net weight of 0.809 Kg for standard rack mounting.
• The housing provides a high degree of protection rated IP67 and IP69K against dust and water ingress.

• Brand designation is recorded as Siemens within the broader automation technology portfolio and product classification.
• Product family is identified as SIMATIC ET 200eco PN, indicating its role in distributed I/O architectures.
• Device class is listed under Digital I/O devices, specifically functioning as a digital output module for control systems.
• Lifecycle status is documented as Active Product, confirming ongoing manufacturing and support within the current product line.

Parameters are factual source fields retained for model review.

• Isochronous mode operation is supported with a cycle time of 0.25 ms for synchronized process control tasks.
• The module allows shared device configuration with two controllers, enabling redundant or parallel control strategies in complex setups.
• Prioritized startup functionality ensures reliable initialization sequences, while MSO and MRP protocols support advanced network management.
• S2 redundancy capabilities are included to maintain operational continuity, alongside I&M0 through I&M3 identification functions.
• Multi-fieldbus support includes PN IO, Ethernet/IP, and Modbus TCP, facilitating integration into diverse communication networks.

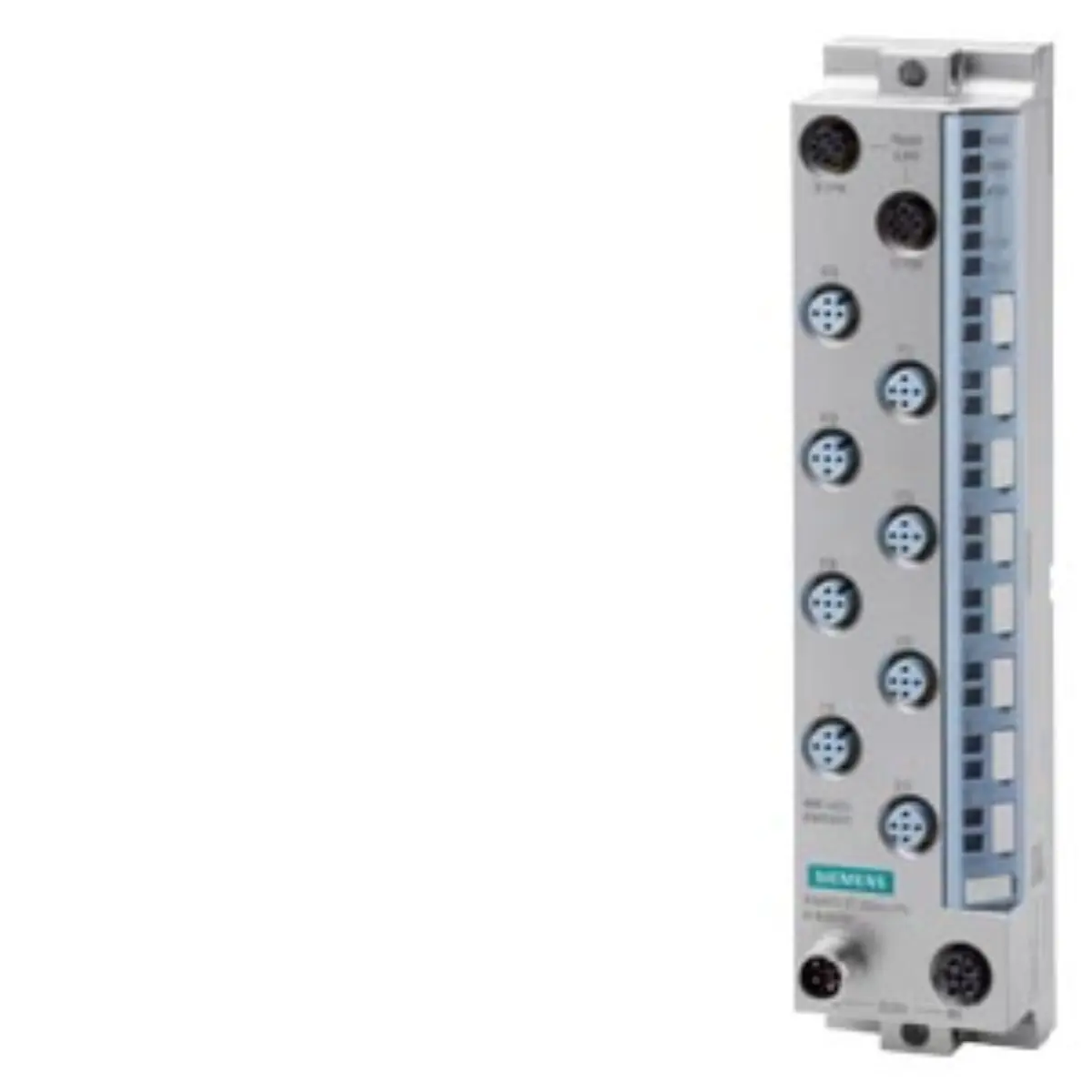

• Visual inspection should confirm the presence of eight M12 connector ports on the front face of the unit.
• Labeling must clearly display the full part number 6ES7142-6BG00-0BB0 along with Siemens branding and certification marks.
• Housing integrity checks should verify the rugged plastic enclosure designed for IP67 and IP69K environmental protection ratings.
• Terminal block orientation and LED indicator positions should match standard SIMATIC ET 200eco PN module layouts.

• Verify that the required voltage level matches the 24 V DC specification for the digital output channels.
• Confirm M12 connector type requirements to ensure proper cabling and wiring harness application context with existing infrastructure.
• Assess network protocol needs to determine if PN IO, Ethernet/IP, or Modbus TCP is required for integration.
• Review physical space constraints to ensure the 22.3 cm length fits within the designated controller rack or rail.

• Ensure all technical parameters align with the specific requirements of the target industrial automation project scope.
• Cross-reference the multi-fieldbus support options to validate communication application context with existing PLC and network infrastructure.
• Document the IP67/IP69K protection rating to confirm suitability for harsh industrial environments requiring high ingress protection.
• Validate the active product lifecycle status to ensure long-term review details and continued manufacturer support for the component.
