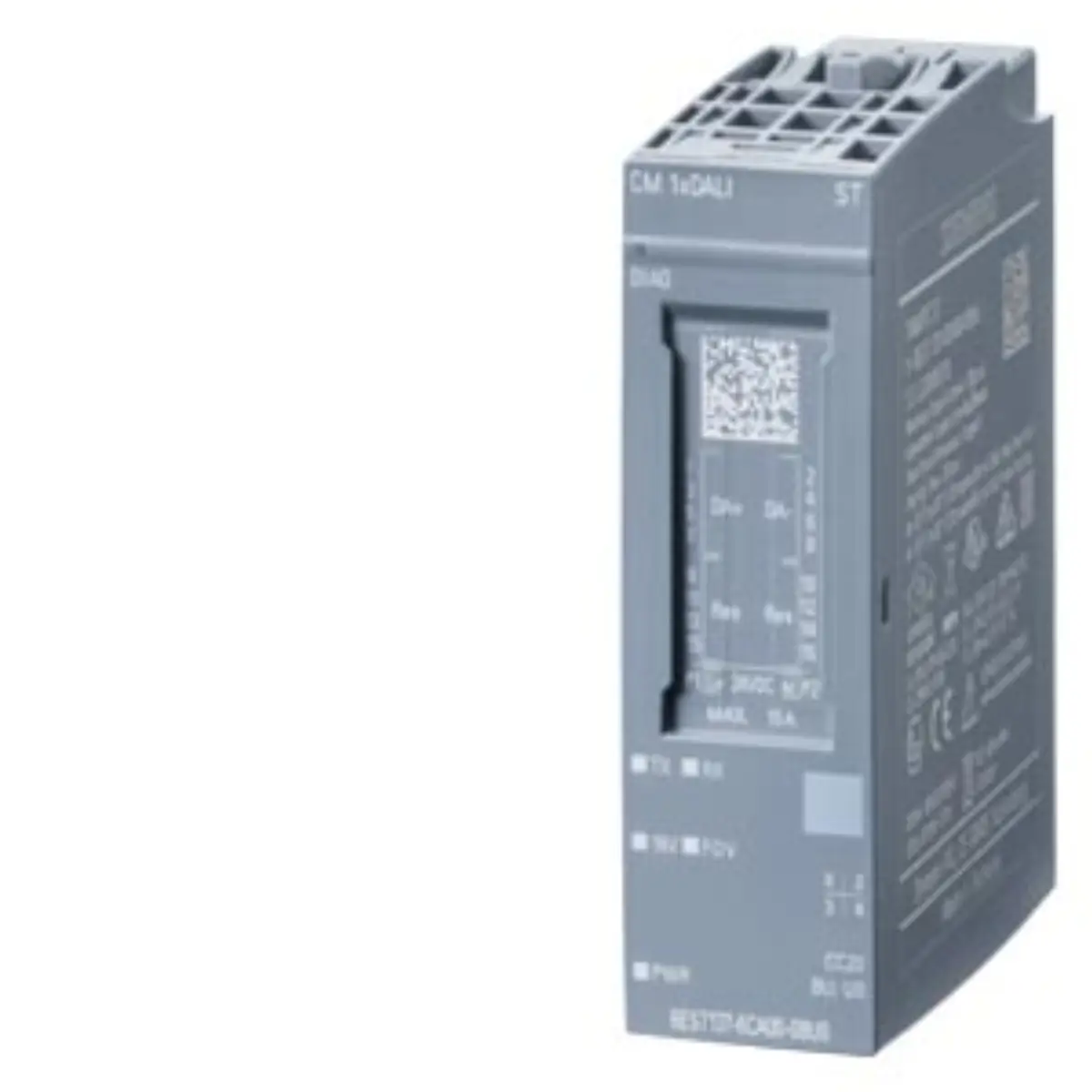

6ES7137-6CA00-0BU0 SIMATIC ET 200SP CM 1xDALI Master Module

Part number

6ES7137-6CA00-0BU0

Brand

Siemens

Category

I/O Modules

Product type

CM 1xDALI

Lifecycle

Active Product

Dimensions

7.5 x 6.7 x 2.9 cm

Net weight

0.057 Kg

Source category

CM 1xDALI

• The device operates as a CM 1xDALI unit, providing a single channel for DALI communication protocols within the automation architecture.
• Integrated bus power supply delivers a constant current of 160 mA to ensure stable operation of connected DALI control gears.
• Maximum capacity allows for the management of up to 64 DALI control gears on a single bus segment without external amplifiers.
• The system supports addressing and controlling up to 63 distinct control devices, enabling precise individual or group lighting management.
• Physical dimensions are recorded at 7.5 cm in width, 6.7 cm in height, and 2.9 cm in depth for compact mounting.
• Net weight is listed as 0.057 Kg, contributing to lightweight design considerations for DIN rail installation in control cabinets.

• Brand designation is recorded as Siemens, indicating the manufacturer of this industrial automation component.
• Product type is identified as CM 1xDALI, specifying its role as a Communication Module for DALI interfaces.
• Lifecycle status is listed as Active Product, confirming current production status for new project implementations.
• Color code CC20 is associated with this specific model variant for visual identification during inventory and installation.
