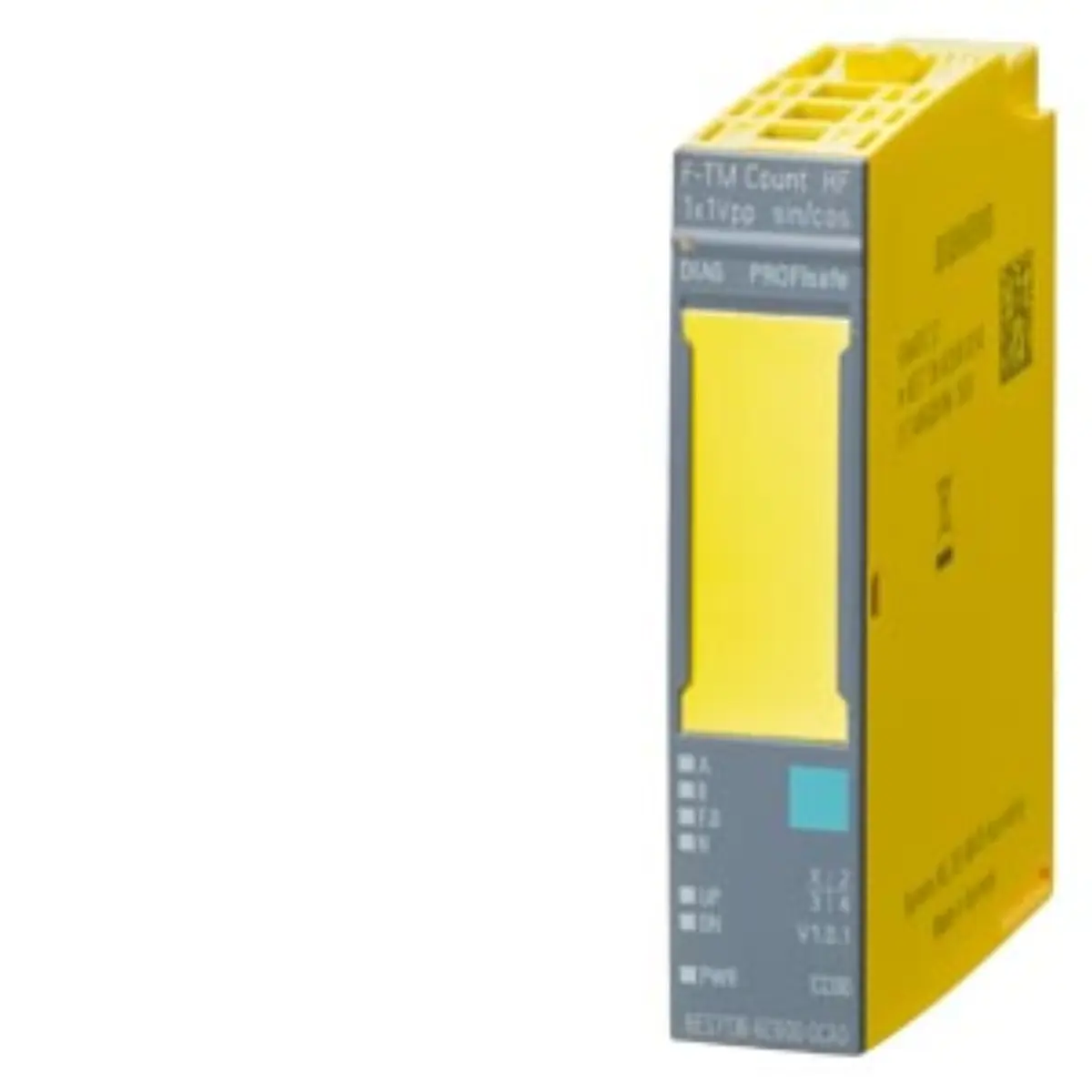

6ES7136-6CB00-0CA0 SIMATIC ET 200SP Fail-Safe Technology Module

Part number

6ES7136-6CB00-0CA0

Brand

Siemens

Category

I/O Modules

Product type

Fail-safe technology modules

Lifecycle

Active Product

Dimensions

7.7 x 6.8 x 2.7 cm

Net weight

0.055 Kg

Source category

Fail-safe technology modules

• Module type is classified as a fail-safe technology module within the broader SIMATIC ET 200SP product family structure.
• Signal processing capability includes support for incremental rotary encoders utilizing sin/cos 1 Vpp signal formats for precise position feedback.
• Communication protocol integration features PROFIsafe functionality, enabling safe data transmission alongside standard process data over the network.
• Channel configuration consists of a single input channel dedicated to receiving and processing the specified high-frequency encoder signals.
• Physical dimensions are recorded at 7.7 cm in width, 6.8 cm in depth, and 2.7 cm in height for mounting considerations.
• Net weight is listed as 0.055 kg, indicating a lightweight design listed for dense rack or rail installations in control cabinets.

• Brand designation is clearly marked as Siemens, identifying the manufacturer of this industrial automation component.
• Product lifecycle status is currently active, meaning the item remains in production and supported by the manufacturer.
• Category classification places this unit under fail-safe I/O modules, specifically within the fail-safe technology modules segment.
• Packaging quantity is defined as one unit per package, requiring separate inquiries for multiple channel requirements.

Parameters are factual source fields retained for model review.

• Input signal type is specified as 1x1Vpp sin/cos, which dictates the necessary encoder interface and cabling specifications.
• Encoder application context is limited to incremental types, requiring review of existing sensor hardware for signal matching.
• Safety protocol adherence relies on PROFIsafe, necessitating verification of safety PLC configuration and parameterization settings.
• Dimensional constraints require checking rack space review details, as the module occupies specific slots in the ET 200SP system.
• Weight distribution is minimal at 0.055 kg, allowing for flexible mounting options without significant structural reinforcement needs.

• Visual inspection should confirm the presence of the full part number label on the module housing front face.
• Connector orientation must be verified against the specific rack slot configuration planned for the installation environment.
• LED indicators should be checked for proper illumination patterns during power-up sequences to confirm basic functionality.
• Mounting clip integrity is essential for secure attachment to the DIN rail or backplane connector interface.

• Verify that the target application requires a single-channel fail-safe input for high-frequency encoder signals.
• Confirm that the existing safety PLC supports PROFIsafe communication protocols for this specific module type.
• Check mechanical space constraints within the control cabinet to ensure the 7.7 cm width fits the designated slot.
• Prepare documentation detailing the specific encoder model to ensure signal voltage and type match the 1x1Vpp requirement.

• Ensure all technical parameters align with the specific safety requirements of the intended machinery application.
• Cross-reference the PROFIsafe configuration with the safety PLC software to documented seamless communication setup.
• Validate that the incremental encoder provides the correct 1x1Vpp sin/cos signals for proper module operation.
• Document any special mounting or environmental conditions that might affect the module's performance in the field.
