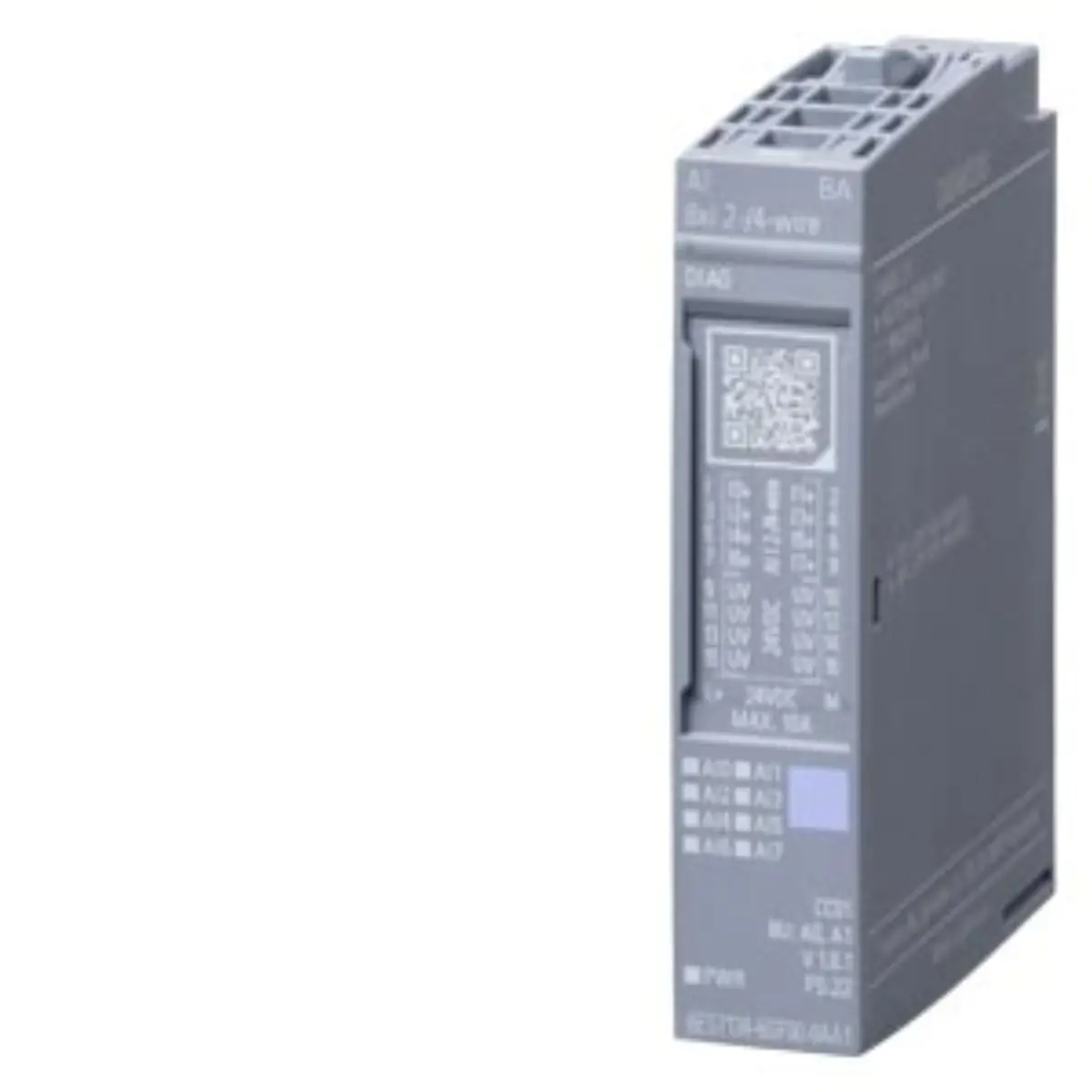

Inquiry for Siemens 6ES7134-6GF00-0AA1 Analog Input Module

Part number

6ES7134-6GF00-0AA1

Brand

Siemens

Category

I/O Modules

Product type

Analog input modules

Lifecycle

Active Product

Dimensions

7.7 x 6.8 x 2.7 cm

Net weight

0.036 Kg

Source category

Analog input modules

• Channel count is configured for eight simultaneous analog input signals within the module architecture. Keep dimensions 7.7 x 6.8 x 2.7 cm and net weight 0.036 Kg unchanged while comparing project documents and product image evidence.
• Resolution is specified at 16 bits, ensuring detailed data capture for precision measurement tasks.
• Connection types support both two-wire and four-wire setups for versatile sensor integration.
• Diagnostics features are embedded to monitor module status and identify potential operational faults.
• Color coding is designated as CC01, aiding in visual identification during installation procedures.
• Module classification falls under the basic AI category for standard analog signal processing needs.

• Brand designation is recorded as Siemens, indicating the manufacturer of this automation component. Use the source path Automation technology / SIMATIC ET 200SP / I/O modules / Analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product line is identified as SIMATIC ET 200SP, part of the distributed I/O system.
• Item type is listed as an analog input module for process signal acquisition tasks.
• Specific variant is noted as AI 8XI 2-/4-wire Basic with A1 interface configuration.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.7 cm in width, 6.8 cm in depth, and 2.7 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7134-6GF00-0AA1 record before publication.
• Net weight is documented at 0.036 kg, reflecting the compact and lightweight construction design.
• Lifecycle status is active, meaning the product remains in current production and support phases.
• Bit depth is fixed at 16 bits, providing the resolution standard for this input module.
• Wiring configuration allows flexibility between two-wire and four-wire sensor connections for various applications.

• Visual inspection should confirm the presence of the CC01 color code marking on the housing.
• Check that the module label clearly displays the full part number 6ES7134-6GF00-0AA1.
• Verify the physical condition of the connector pins for any signs of damage or corrosion.
• Ensure diagnostic LEDs or indicators are visible and intact for status monitoring purposes.

• Review project documentation to confirm the required channel count matches the eight-channel specification.
• Verify sensor wiring types to ensure application context with the two-wire or four-wire support.
• Check control system architecture to confirm integration with the SIMATIC ET 200SP rack.
• Confirm power supply requirements align with the module's electrical specifications for proper operation.

• Cross-reference the part number with documented Siemens documentation for complete technical specifications.
• Validate the active lifecycle status to ensure long-term support and review details for projects.
• Compare physical dimensions against panel space constraints to ensure proper mechanical fitment.
• Consult engineering standards to verify that 16-bit resolution meets the precision requirements.
