6ES7132-6MD00-0BB1 Digital Output Module Details

Part number

6ES7132-6MD00-0BB1

Brand

Siemens

Category

I/O Modules

Product type

Digital output modules

Lifecycle

Active Product

Dimensions

7.5 x 6.6 x 2.9 cm

Net weight

0.054 Kg

Source category

Digital output modules

• Module type is classified as a digital output unit for process automation tasks. Keep dimensions 7.5 x 6.6 x 2.9 cm and net weight 0.054 Kg unchanged while comparing project documents and product image evidence.
• Output configuration utilizes relay technology for electrically isolated switching operations.
• Contact arrangement specifies normally open state for standard signal transmission paths.
• Electrical rating includes 4 channels capable of handling up to 5 amperes.
• Voltage specifications support both 120V DC and 230V AC load connections.
• Diagnostic functionality provides module-level status information for system monitoring purposes.

• Brand designation is recorded as Siemens under the industrial automation portfolio. Use the source path Automation technology / I/O modules / Digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product line identifier corresponds to the SIMATIC ET 200SP hardware family.
• Specific model code is listed as 6ES7132-6MD00-0BB1 for precise identification.
• Lifecycle status is documented as an active product in current catalogs.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.5 cm width by 6.6 cm depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7132-6MD00-0BB1 record before publication.
• Height measurement is specified at 2.9 cm for rack mounting considerations.
• Net weight is listed as 0.054 kg for logistics and handling estimates.
• Packing unit quantity is defined as one module per standard packaging unit.
• Manual operation feature allows direct control override for maintenance procedures.

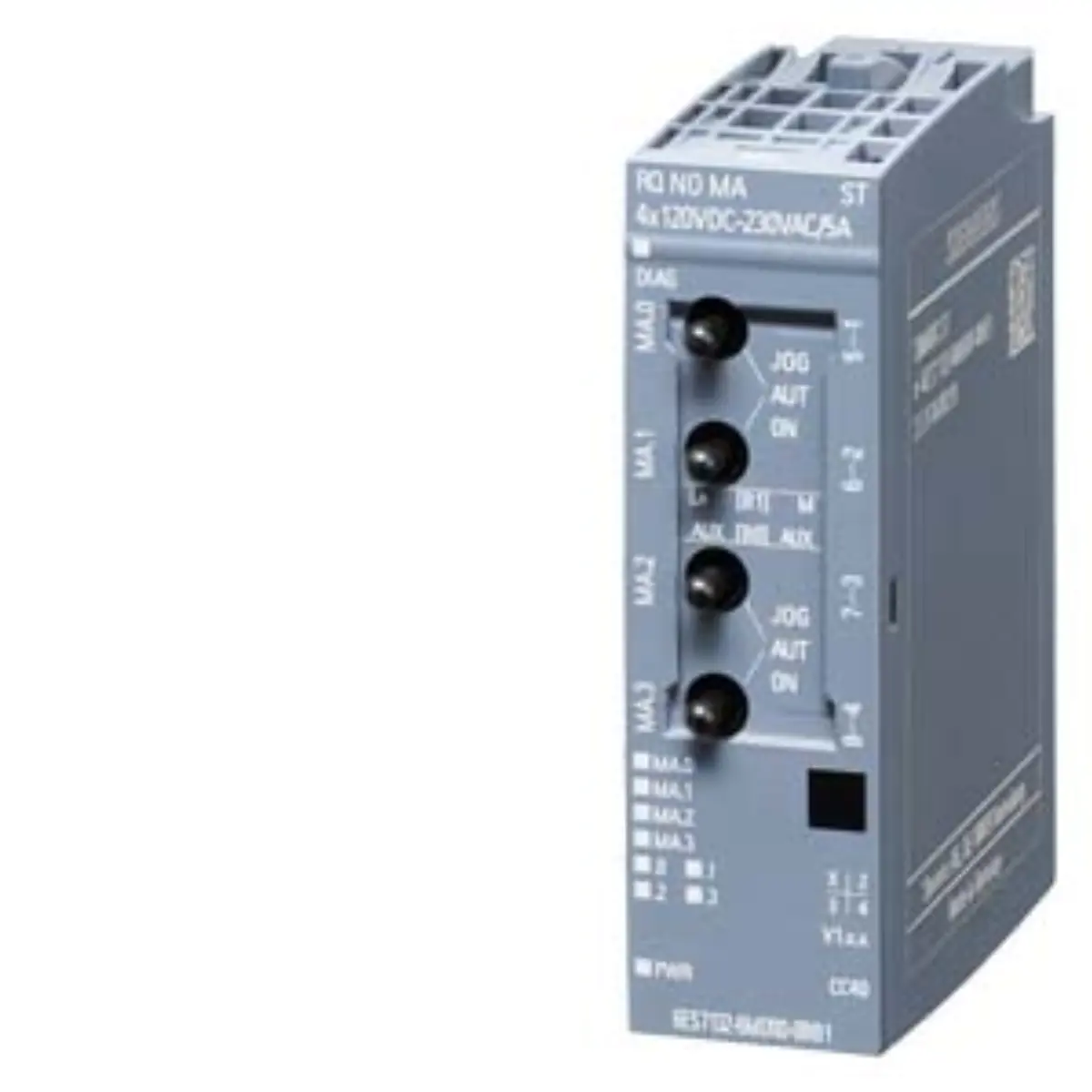

• Primary image should display the front label with full part number clarity. Review Siemens 6ES7132-6MD00-0BB1 as Digital output modules with source category Digital output modules, recorded lifecycle Active Product, and submitted model identity.
• Side views must show the connection terminals for wiring reference purposes.
• Top perspective helps identify the manual operation button location on housing.
• Rear details illustrate the bus connector interface for ET 200SP backplane.

• Verify required channel count matches the four-channel specification of this module. Keep dimensions 7.5 x 6.6 x 2.9 cm and net weight 0.054 Kg unchanged while comparing project documents and product image evidence.
• Confirm voltage ratings align with existing load circuits in the design.
• Check physical space constraints against the stated dimensional parameters for installation.
• Review diagnostic requirements to ensure module features meet system monitoring needs.

• Source parameter review confirms the relay module nature of this unit.
• Project document review should verify electrical ratings against load specifications.
• Technical summary highlights the importance of manual operation for testing.
• Inquiry submission requires accurate part number usage for correct routing.
