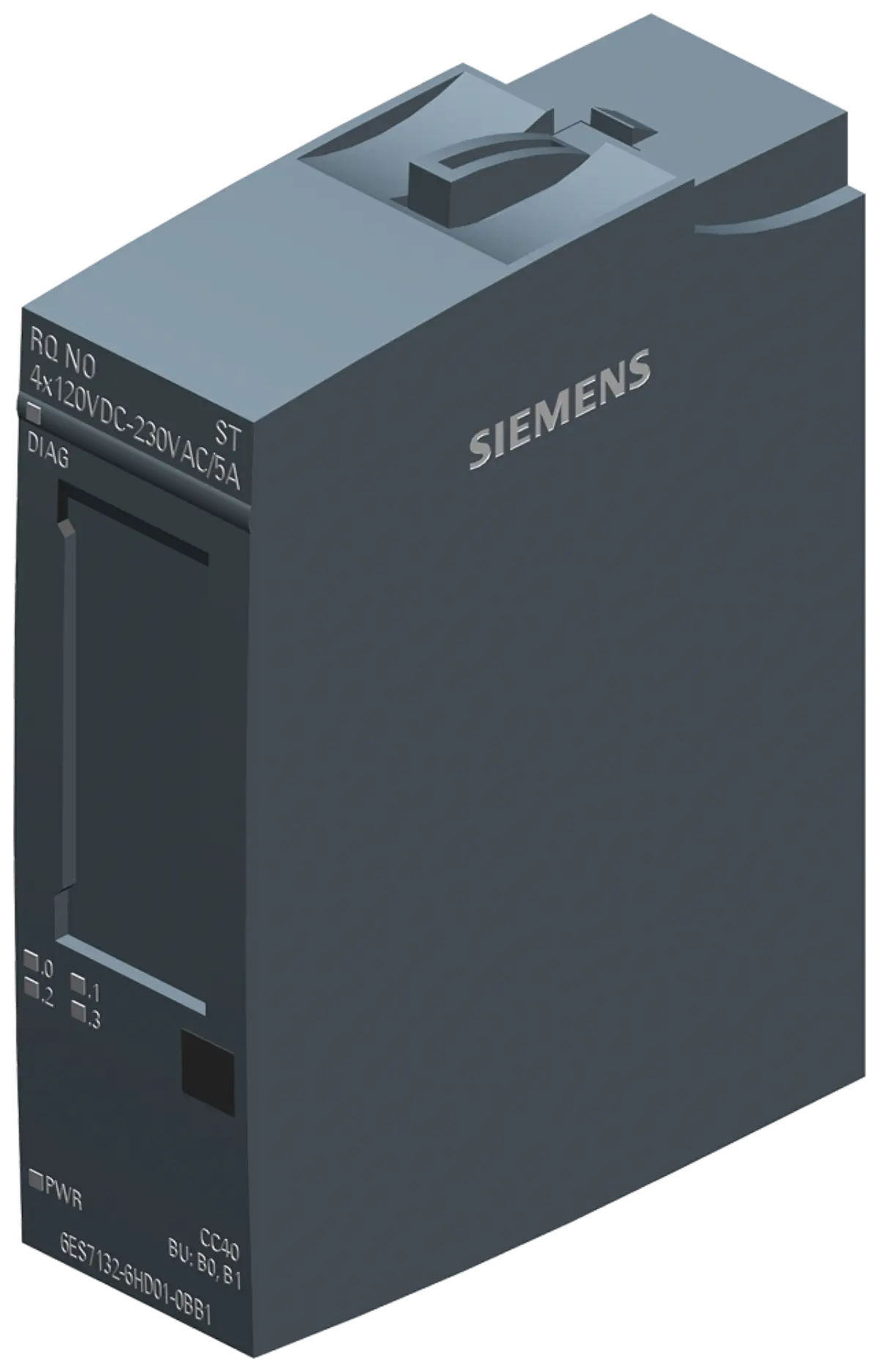

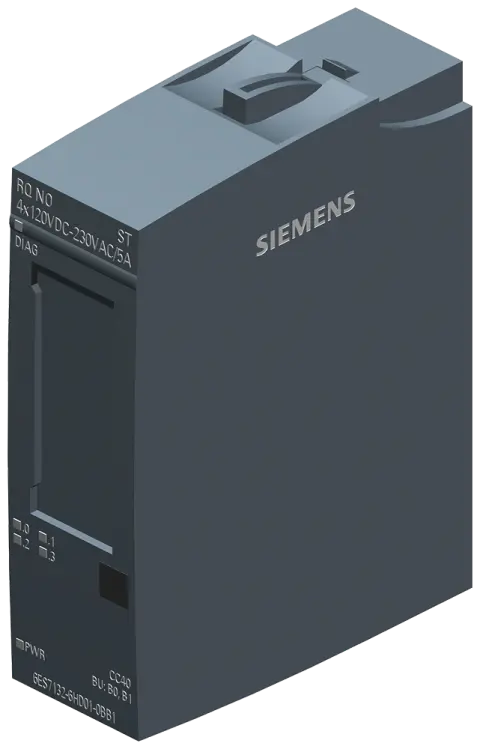

6ES7132-6HD01-0BB1 SIMATIC ET 200SP Digital Output Module

Part number

6ES7132-6HD01-0BB1

Brand

Siemens

Category

I/O Modules

Product type

Digital output modules

Lifecycle

Active Product

Dimensions

7.8 x 6.7 x 3.2 cm

Net weight

0.052 Kg

Source category

Digital output modules

• Module type is classified as a digital output device within the SIMATIC ET 200SP family of automation components.
• Output configuration consists of four relay contacts, specifically rated for normally open operation with isolated circuits.
• Contact rating supports loads up to 5 Amperes at voltages ranging from 120 Volts DC to 230 Volts AC.
• Physical dimensions are recorded as 7.8 centimeters in width, 6.7 centimeters in depth, and 3.2 centimeters in height.
• Net weight of the unit is listed at 0.052 kilograms, indicating a compact form factor for DIN rail mounting.
• Packing unit quantity is defined as one piece per standard packaging configuration for individual module installation.

• Brand designation is clearly marked as Siemens, identifying the manufacturer of this industrial automation hardware component.
• Product line belongs to the SIMATIC ET 200SP series, known for modular scalability and high performance.
• Color code identifier is noted as CC40, which assists in visual identification during rack assembly and maintenance.
• Lifecycle status is recorded as Active Product, indicating current production and support review details for this model.

Parameters are factual source fields retained for model review.

• Mounting application context includes BU-type B0 and B1 base units, ensuring secure attachment to the backplane bus.
• Diagnostics capability covers supply voltage monitoring, providing feedback on power status for the connected module.
• Substitute value output feature allows for predefined signal states in case of specific fault conditions or errors.
• Isolation type confirms that each of the four contacts operates independently with galvanic separation from other channels.
• Voltage range specification encompasses both direct current and alternating current loads for versatile application scenarios.

• Visual inspection should confirm the presence of terminal blocks for connecting load wires to the relay outputs.
• Check the front label for the exact part number 6ES7132-6HD01-0BB1 to verify model identity against documentation.
• Examine the color coding strip to ensure it matches the specified CC40 identifier for correct rack sorting.
• Verify the physical condition of the housing for any signs of damage that might affect mounting stability.

• Gather project documentation specifying the required voltage levels and current ratings for the controlled loads.
• Confirm the base unit type in use to ensure mechanical application context with BU-type B0 or B1 systems.
• Review existing PLC program logic to determine if substitute value output settings need adjustment for faults.
• Prepare technical questions regarding supply voltage diagnostics integration with the broader SCADA or HMI monitoring system.

• Ensure all technical parameters align with the specific operational requirements of the target industrial machine or process.
• Cross-reference the isolation specifications with safety standards applicable to the environment where the module will operate.
• Validate the supply voltage monitoring features against the diagnostic protocols used in the central control unit.
• Confirm that the packing unit quantity meets the immediate installation needs without requiring additional bulk request.
