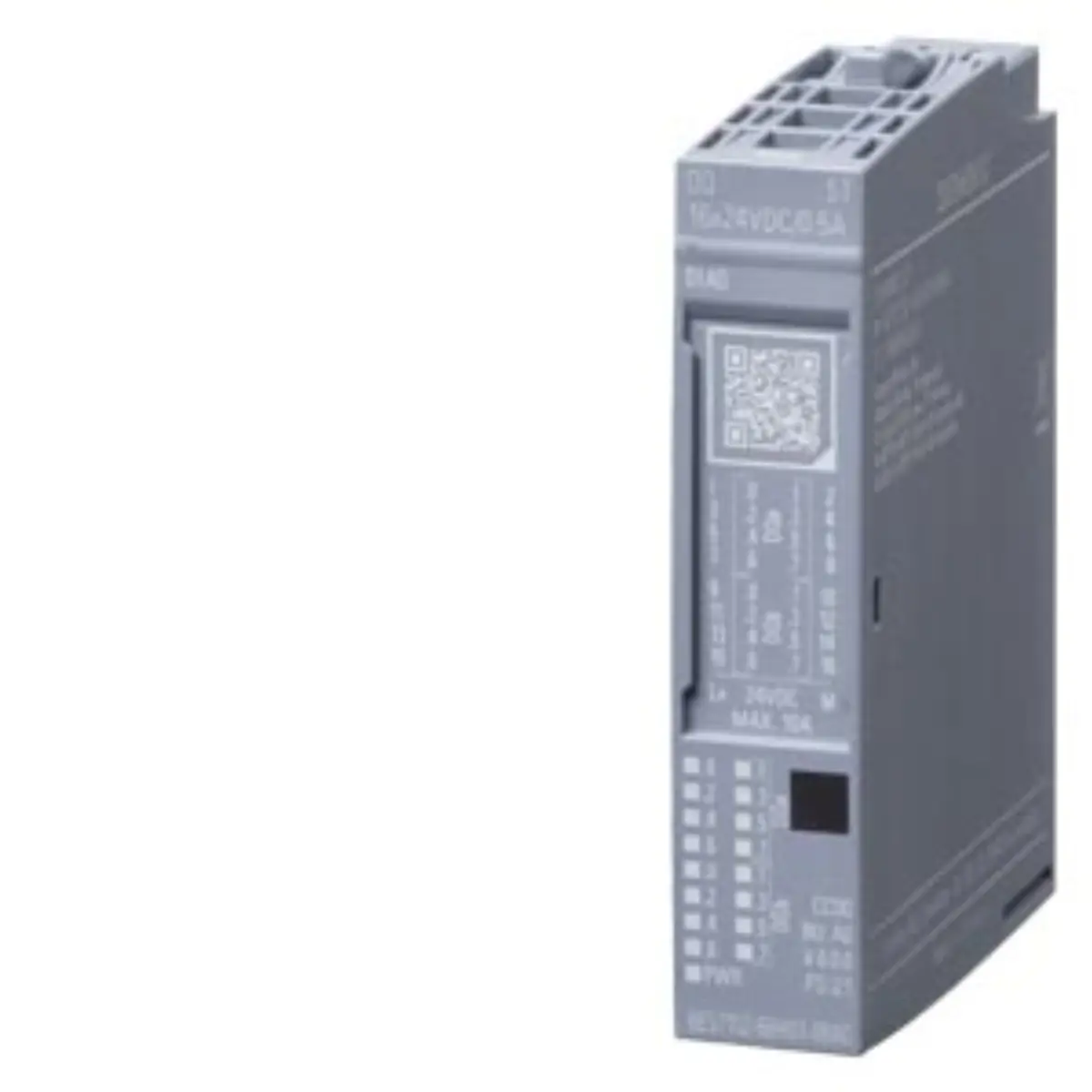

6ES7132-6BH01-0BA0 SIMATIC ET 200SP Digital Output Module

Part number

6ES7132-6BH01-0BA0

Brand

Siemens

Category

I/O Modules

Product type

Digital output modules

Lifecycle

Active Product

Dimensions

7.5 x 6.7 x 2.4 cm

Net weight

0.035 Kg

Source category

Digital output modules

• The module offers sixteen digital output channels operating at a nominal voltage of 24V DC. Keep dimensions 7.5 x 6.7 x 2.4 cm and net weight 0.035 Kg unchanged while comparing project documents and product image evidence.
• Each channel supports a maximum current of 0.5A for standard switching applications in industrial environments.
• The output configuration is defined as source type, utilizing PNP switching principles for signal transmission.
• Integrated diagnostics monitor for short circuits to L+ and ground, along with wire break detection.
• Supply voltage monitoring is included to ensure stable operation and alert to power fluctuations.
• The physical dimensions are recorded as 7.5 cm width by 6.7 cm height by 2.4 cm depth.

• Identified as part of the SIMATIC ET 200SP family of distributed I/O systems. Use the source path Automation technology / I/O modules / Digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The product class is categorized specifically under digital output modules for discrete control tasks.
• Current lifecycle status is listed as Active Product, indicating ongoing manufacturing support.
• The brand designation is clearly marked as Siemens within the automation technology sector.

Parameters are factual source fields retained for model review.

• Net weight is recorded at 0.035 Kg, contributing to lightweight rack assembly designs. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7132-6BH01-0BA0 record before publication.
• Color code CC00 is assigned to this specific module variant for visual identification purposes.
• It fits the BU-type A0 backplane bus connector interface for secure mechanical mounting.
• Substitute value output functionality allows for predefined states during diagnostic error conditions.
• Module diagnostics provide detailed feedback on output status and potential hardware faults.

• Visual inspection should confirm the presence of the Siemens branding on the module housing.
• Check that the terminal blocks are intact and free from physical damage or corrosion.
• Verify the labeling matches the part number 6ES7132-6BH01-0BA0 printed on the front face.
• Ensure the backplane bus connector pins are aligned correctly for proper electrical contact.

• Review project documentation to confirm the need for sixteen 24V DC source outputs.
• Verify that the control system utilizes the SIMATIC ET 200SP backplane bus infrastructure.
• Check existing wiring diagrams to ensure application context with PNP switching logic requirements.
• Confirm space constraints allow for the module dimensions of 7.5 x 6.7 x 2.4 cm.

• Source parameter review indicates active product status for long-term project planning.
• Technical specifications align with standard industrial digital output requirements for 24V systems.
• Diagnostics features support maintenance efficiency through short-circuit and wire break detection.
• Physical attributes suggest compact design listed for dense control cabinet installations.
