6ES7132-6BH00-0AA0 Digital Output Module Details

Part number

6ES7132-6BH00-0AA0

Brand

Siemens

Category

I/O Modules

Product type

Digital output modules

Lifecycle

Active Product

Dimensions

7.5 x 6.7 x 2.4 cm

Net weight

0.039 Kg

Source category

Digital output modules

• Output type: Digital Q (DQ) with sixteen channels for discrete control signals. Keep dimensions 7.5 x 6.7 x 2.4 cm and net weight 0.039 Kg unchanged while comparing project documents and product image evidence.
• Voltage rating: 24VDC supply voltage for each individual output channel.
• Current capacity: 0.5A maximum load current per channel for switching operations.
• Series family: SIMATIC ET 200SP distributed I/O system component.
• Diagnostics: Built-in module diagnostics for status monitoring and error detection.
• Pack quantity: One unit per packaging configuration for standard distribution.

• Brand designation: Siemens industrial automation components for process control systems. Use the source path Automation technology / I/O modules / Digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product line: SIMATIC ET 200SP scalable distributed I/O platform.
• Function class: Digital output module for switching loads on/off.
• Variant code: DQ 16x 24VDC/0.5A Basic indicates channel count and specs.

Parameters are factual source fields retained for model review.

• Physical dimensions: 7.5 cm width by 6.7 cm depth by 2.4 cm height. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7132-6BH00-0AA0 record before publication.
• Net weight: 0.039 kilograms recorded for shipping and mounting calculations.
• Color code: CC00 assigned for quick visual reference during installation phases.
• Lifecycle status: Active Product status confirms current manufacturing and support.
• Channel count: Sixteen independent digital outputs for simultaneous control tasks.

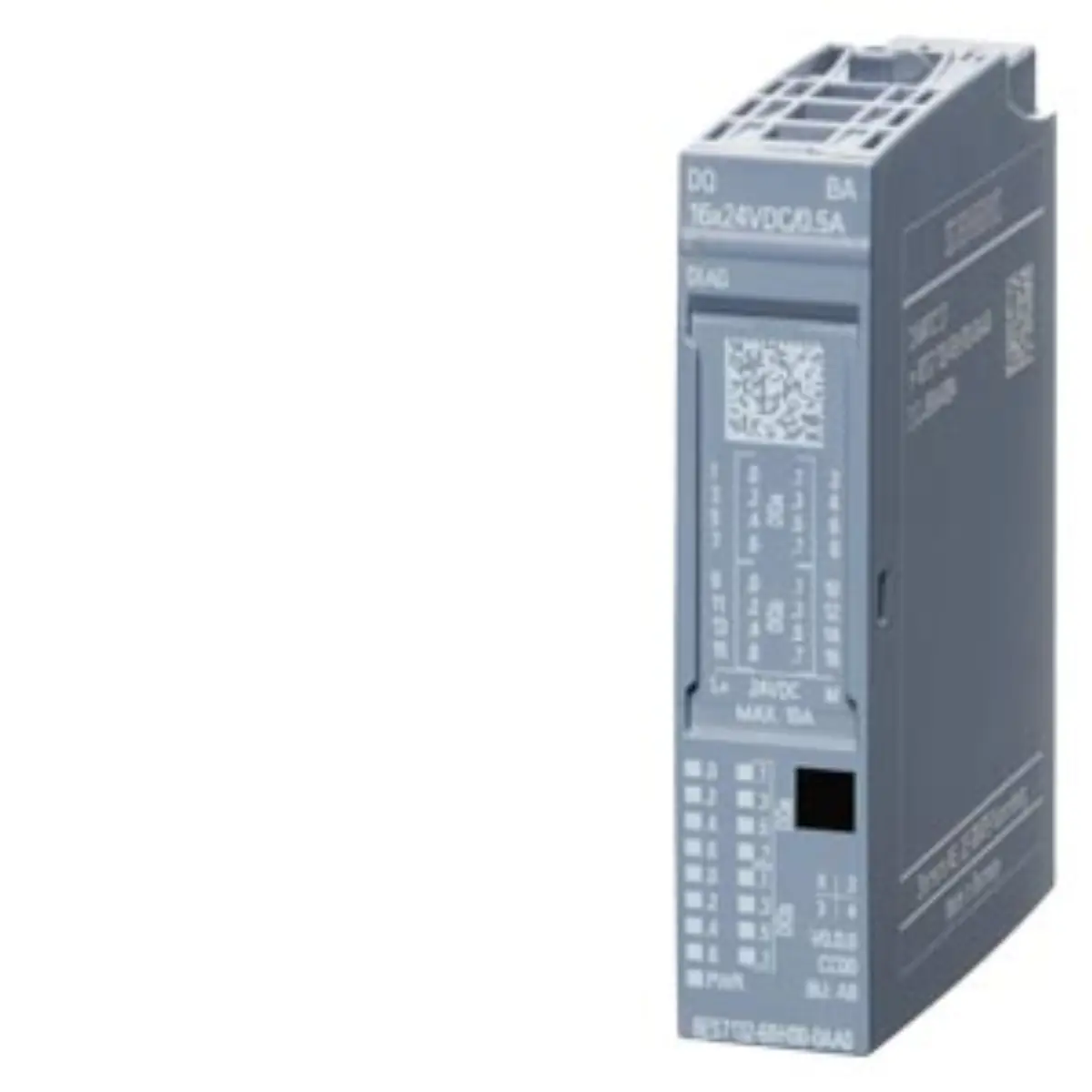

• Label placement: Part number and technical data printed clearly on front face. Review Siemens 6ES7132-6BH00-0AA0 as Digital output modules with source category Digital output modules, recorded lifecycle Active Product, and submitted model identity.
• Connector type: Spring-cage or screw terminals for secure wire connections.
• Status LEDs: Diagnostic lights visible for channel and module state indication.
• Mounting rail: Standard DIN rail attachment mechanism for panel integration.

• Verify voltage requirements match existing 24VDC power supply infrastructure. Keep dimensions 7.5 x 6.7 x 2.4 cm and net weight 0.039 Kg unchanged while comparing project documents and product image evidence.
• Check current load calculations against the 0.5A per channel limit.
• Confirm space constraints fit within the 7.5x6.7x2.4 cm footprint area.
• Review system architecture for ET 200SP bus connector application context needs.

• Ensure all technical parameters align with specific project design documents.
• Cross-reference the part number for accuracy in inquiry preparation requests.
• Consider environmental conditions when selecting housing and mounting options.
• Document any special wiring requirements for high-current load scenarios.
