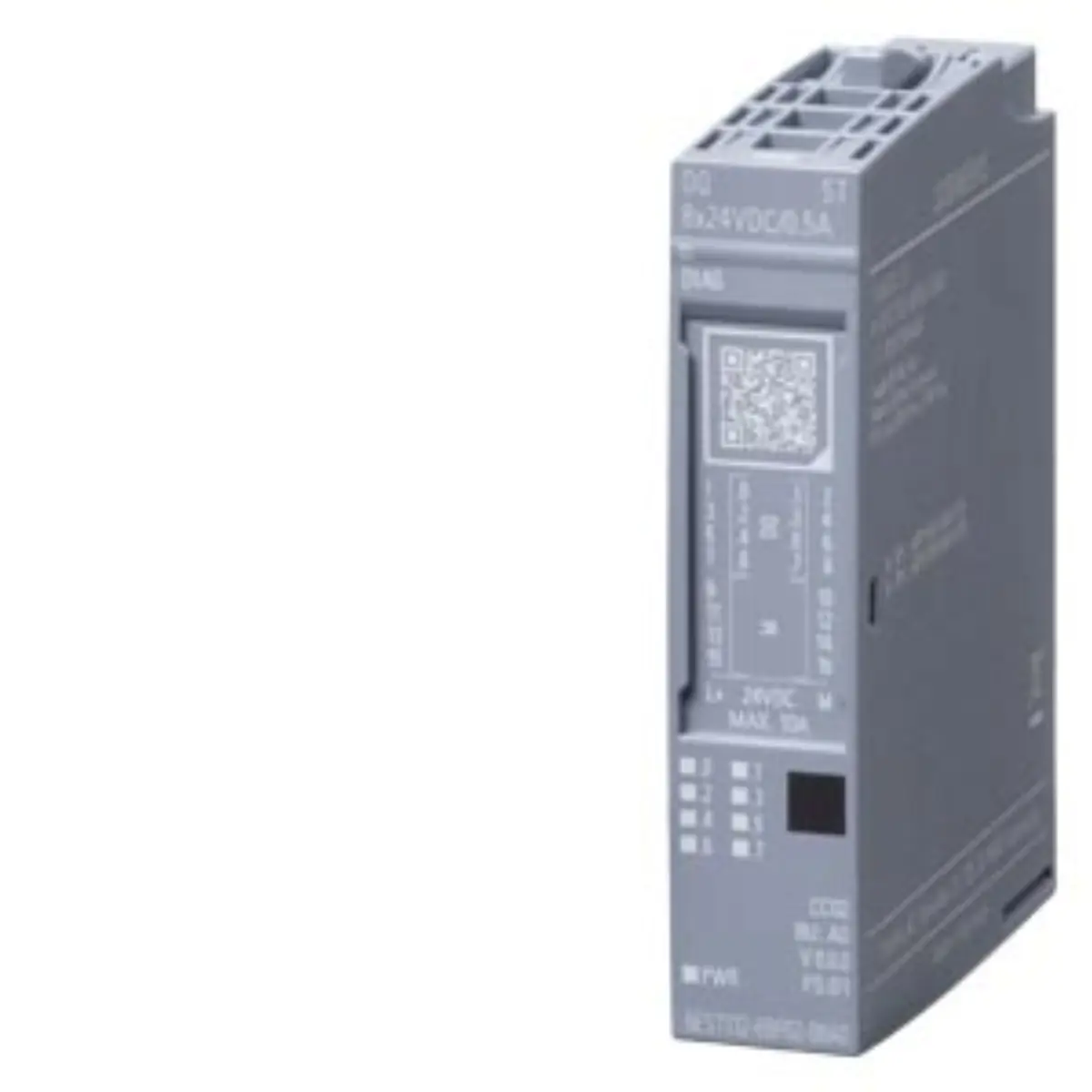

Siemens 6ES7132-6BF01-0BA0 Digital Output Module Inquiry

Part number

6ES7132-6BF01-0BA0

Brand

Siemens

Category

I/O Modules

Product type

Digital output modules

Lifecycle

Active Product

Dimensions

7.8 x 6.8 x 2.4 cm

Net weight

0.034 Kg

Source category

Digital output modules

• Module type is a digital output unit within the ET 200SP series architecture. Keep dimensions 7.8 x 6.8 x 2.4 cm and net weight 0.034 Kg unchanged while comparing project documents and product image evidence.
• Output configuration provides eight discrete channels for standard switching applications.
• Rated voltage for outputs is 24V DC with a maximum current of 0.5A.
• Switching logic utilizes source output configuration supporting PNP and P-switching modes.
• Diagnostic functions monitor short-circuit conditions to L+ and ground connections.
• Additional diagnostics detect wire break events and supply voltage anomalies.

• Brand designation recorded as Siemens for this specific industrial automation component. Use the source path Automation technology / I/O modules / Digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product family identified as SIMATIC ET 200SP distributed I/O system.
• Specific model number listed as 6ES7132-6BF01-0BA0 for precise identification.
• Normalized part number format appears as 6ES71326BF010BA0 in some records.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.8 cm width by 6.8 cm height. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7132-6BF01-0BA0 record before publication.
• Depth measurement is noted at 2.4 cm for rack mounting considerations.
• Net weight is specified as 0.034 Kg for logistics and handling data.
• Packing unit quantity is defined as one piece per standard package.
• Bus Unit type application context includes BU-type A0 for system integration.

• Visual inspection should confirm the presence of eight output channel indicators. Review Siemens 6ES7132-6BF01-0BA0 as Digital output modules with source category Digital output modules, recorded lifecycle Active Product, and submitted model identity.
• Check for color code CC02 marking on the module housing surface.
• Ensure diagnostic LEDs are visible for status monitoring during operation.
• Verify physical connectors match the ET 200SP system interface standards.

• Review project documentation to confirm voltage requirements match 24V DC sources. Keep dimensions 7.8 x 6.8 x 2.4 cm and net weight 0.034 Kg unchanged while comparing project documents and product image evidence.
• Check current load calculations to ensure they stay within 0.5A limits.
• Verify system architecture supports SIMATIC ET 200SP bus unit connections.
• Confirm diagnostic needs align with short-circuit and wire break monitoring features.

• Lifecycle status is currently active according to manufacturer product records.
• Source category path indicates placement within I/O modules technical group.
• Substitute value output feature allows for flexible configuration in control logic.
• Module diagnostics provide essential feedback for maintaining system reliability and uptime.
