6ES7132-6BF01-0AA0 SIMATIC ET 200SP Digital Output Module

Part number

6ES7132-6BF01-0AA0

Brand

Siemens

Category

I/O Modules

Product type

Digital output modules

Lifecycle

Active Product

Dimensions

7.9 x 6.8 x 2.4 cm

Net weight

0.038 Kg

Source category

Digital output modules

• The device features eight digital output points operating at 24V DC voltage levels. Keep dimensions 7.9 x 6.8 x 2.4 cm and net weight 0.038 Kg unchanged while comparing project documents and product image evidence.
• Each output channel is rated for a maximum current of 0.5 Amperes continuous load.
• The module utilizes source output logic, indicating PNP switching behavior for connected devices.
• Built-in module diagnostics monitor the supply voltage status for operational awareness.
• Substitute value output functionality allows for defined states during diagnostic events.
• The physical housing corresponds to BU-type A0 base unit specifications for mounting.

• The part number 6ES7132-6BF01-0AA0 uniquely identifies this specific digital output variant. Use the source path Automation technology / I/O modules / Digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Color Code CC02 is assigned to this module for visual identification on racks.
• The product class falls under digital output modules within the broader I/O category.
• The packing unit is listed as one piece per standard shipping configuration.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.9 cm in width by 6.8 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7132-6BF01-0AA0 record before publication.
• The module height measures 2.4 cm, allowing for compact rack integration designs.
• Net weight is specified at 0.038 Kg for logistics and handling calculations.
• Operating voltage parameters align with standard 24V DC industrial control systems.
• Current capacity per channel remains constant at 0.5A for resistive loads.

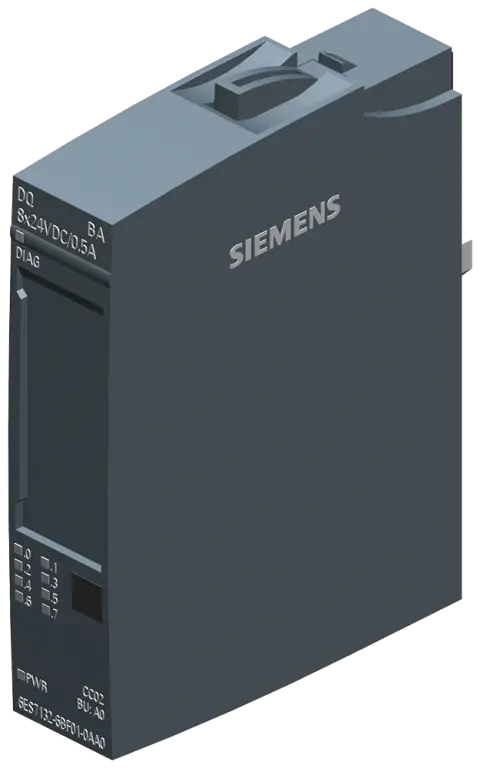

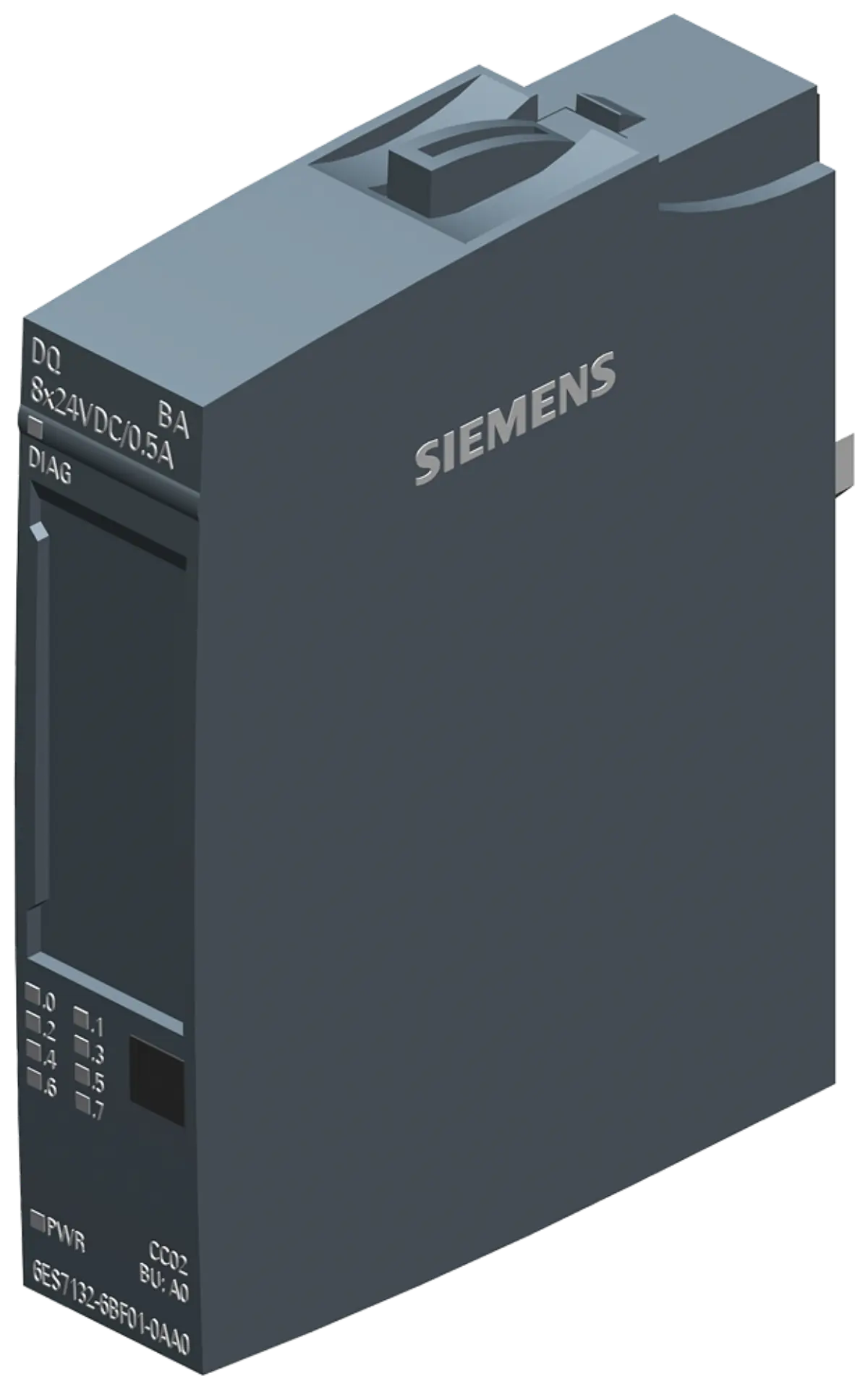

• Product imagery typically displays the front label with the full type designation. Review Siemens 6ES7132-6BF01-0AA0 as Digital output modules with source category Digital output modules, recorded lifecycle Active Product, and submitted model identity.
• Side views may show the connection interface for the base unit attachment.
• Top perspectives highlight the terminal block area for wiring connections.
• Diagrammatic images often illustrate the electrical circuit for source output configuration.

• Verify the required number of channels matches the eight-point specification of this model. Keep dimensions 7.9 x 6.8 x 2.4 cm and net weight 0.038 Kg unchanged while comparing project documents and product image evidence.
• Confirm that the control system uses PNP logic for signal sourcing application context.
• Check if substitute value output settings meet the safety requirements of the application.
• Ensure the rack space accommodates the 7.9 cm width and 2.4 cm height.

• Cross-reference the part number against project bills of materials for accuracy.
• Review the technical data sheet for detailed electrical characteristics and limits.
• Consult installation guidelines for proper mounting on the BU-type A0 base.
• Validate the active lifecycle status ensures long-term support for the equipment.
