Siemens 6ES7131-6BF00-0DA0 Digital Input Module Inquiry

Part number

6ES7131-6BF00-0DA0

Brand

Siemens

Category

I/O Modules

Product type

Digital input modules

Lifecycle

Active Product

Dimensions

7.9 x 6.8 x 2.4 cm

Net weight

0.036 Kg

Source category

Digital input modules

• This unit operates as a DI 8x 24 V DC High Speed module, providing eight discrete input channels for signal processing.
• The device supports three distinct alternative operating modes to accommodate diverse application requirements and signal processing needs.
• Standard digital input functionality allows for the monitoring of binary signals from field devices connected to the module.
• Oversampling mode enhances signal reliability by capturing multiple samples per cycle to filter out noise or glitches effectively.
• The 4x counters capability enables the module to process high-frequency pulse signals for precise counting applications in machinery.
• Color code CC01 is recorded for visual identification purposes, aiding in quick recognition during installation and maintenance tasks.

• The part number 6ES7131-6BF00-0DA0 uniquely identifies this specific digital input variant within the broader Siemens automation portfolio.
• Normalized representation 6ES71316BF000DA0 removes hyphens for database indexing while maintaining the exact alphanumeric sequence of the original identifier.
• Brand attribution is clearly established as Siemens, indicating the manufacturer responsible for the engineering and production of this hardware.
• Category classification places this item firmly within the digital input modules segment of industrial automation hardware components.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.9 cm in width, 6.8 cm in depth, and 2.4 cm in height for spatial planning.
• Net weight specification stands at 0.036 Kg, which is relevant for load calculations in rack or rail mounting systems.
• Pack quantity is listed as 1 unit per package, ensuring that inquiries reflect the correct volume of hardware being reviewed.
• Operating voltage level is specified as 24 V DC, aligning with standard industrial control system power distribution networks.
• Input channel count is fixed at eight digital inputs, providing a balanced interface density for typical control logic applications.

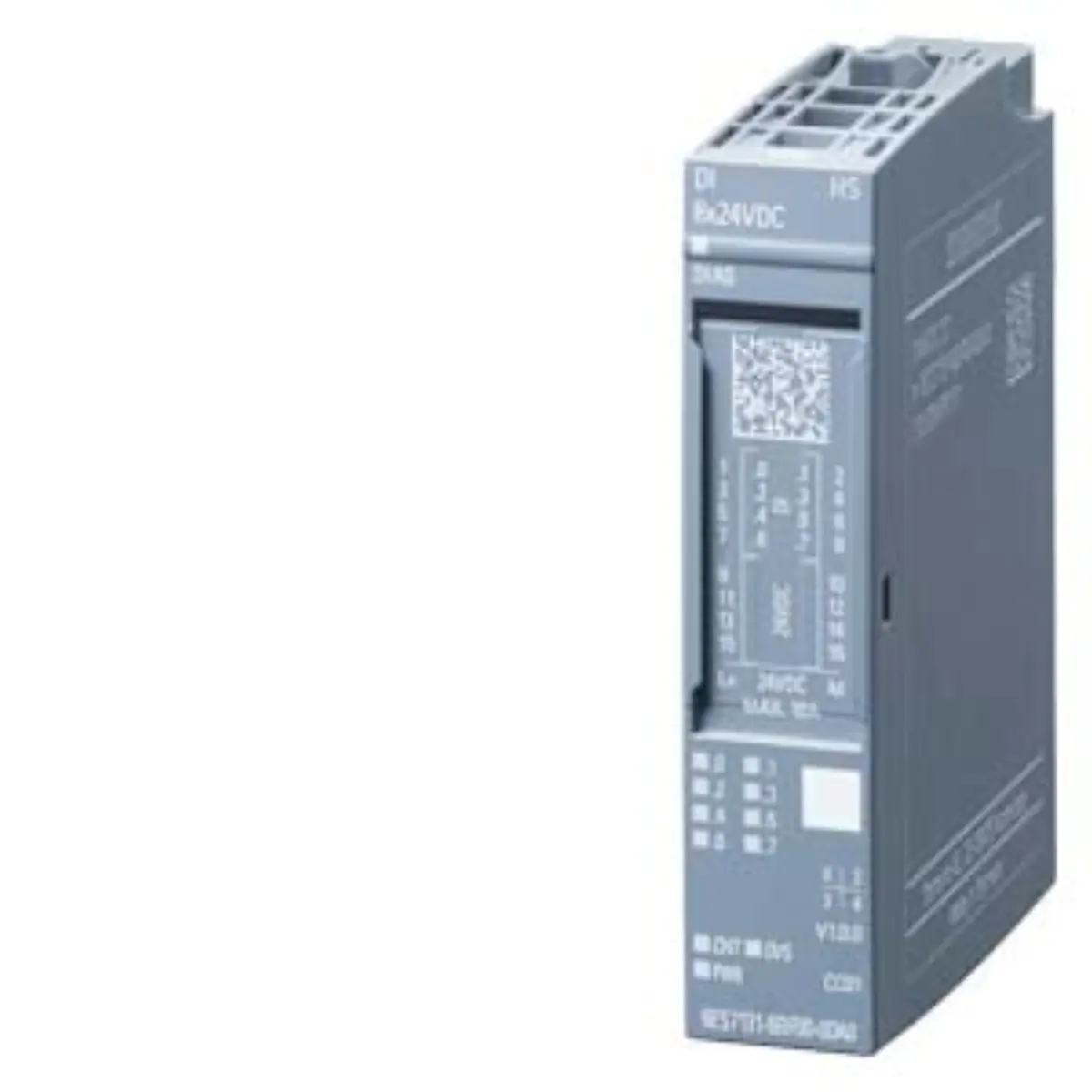

• Visual documentation should display the front face of the module showing the terminal blocks and status indicator LEDs.
• Label clarity is essential, ensuring the part number 6ES7131-6BF00-0DA0 is legible for verification against project specifications.
• Side profiles may illustrate the compact form factor, confirming the small footprint relative to other I/O module types.
• Connector details should highlight the plug-in mechanism characteristic of the ET 200SP series for ease of spare part record.

• Review project documents to confirm that eight digital inputs meet the specific signal monitoring requirements of the application.
• Verify that the 24 V DC supply network is application context with the voltage ratings recorded for this input module.
• Assess whether high-speed processing capabilities are necessary for the intended signal frequencies in the control system design.
• Check physical space constraints to ensure the 7.9 x 6.8 x 2.4 cm dimensions fit within the allocated rack area.

• Confirm the active product status ensures ongoing engineering support and documentation review details for long-term project planning.
• Cross-reference the color code CC01 with existing system standards to maintain consistency in visual identification protocols.
• Evaluate the need for oversampling or counter modes based on the specific noise environment or pulse frequency present.
• Ensure all technical parameters align with the electrical characteristics defined in the system design documentation before submission.
