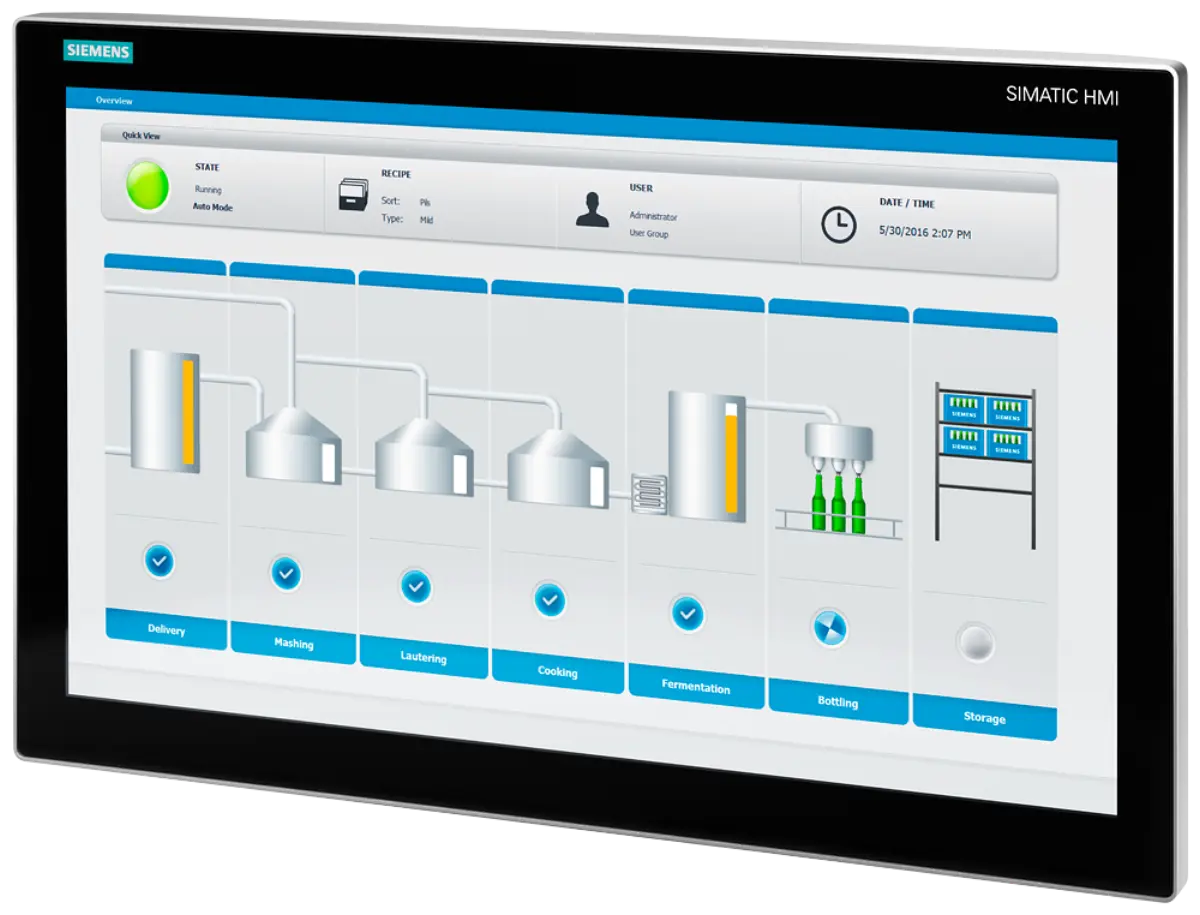

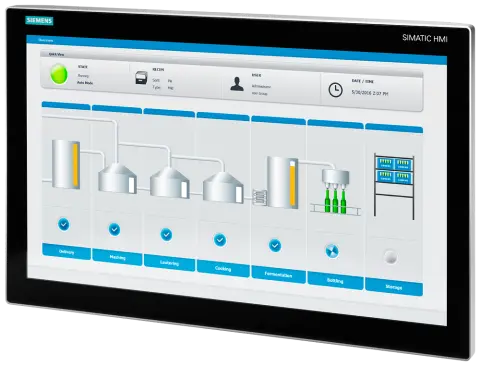

Siemens 6AV7863-5MA10-2NA0 HMI Panel Details

Part number

6AV7863-5MA10-2NA0

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

63.00 x 51.00 x 24.00 cm

Net weight

4.42 Kg

Source category

SIMATIC Industrial Flat Panel for SINUMERIK

• Display resolution is recorded at 1920x1080 pixels providing clear graphical representation for complex machine interfaces. Keep dimensions 63.00 x 51.00 x 24.00 cm and net weight 4.42 Kg unchanged while comparing project documents and product image evidence.
• The unit supports HDBaseT technology enabling placement up to 100 meters away from the host system.
• Physical dimensions are listed as 63.00 x 51.00 x 24.00 cm for spatial planning in control rooms.
• Net weight is documented at 4.42 Kg ensuring manageable handling during installation and maintenance procedures.
• Interface connections include USB ports located on the rear side for peripheral device attachment and configuration.
• Power supply requirements specify 24 V DC operation consistent with standard industrial automation power distributions.

• Part number 6AV7863-5MA10-2NA0 identifies the specific variant within the Siemens SIMATIC product family structure.
• The normalized identifier 6AV78635MA102NA0 serves as the primary reference for database indexing and search queries.
• Lifecycle status is recorded as Active Product indicating ongoing manufacturing support and technical documentation review details.
• Category classification places this item under HMI Panels specifically for SINUMERIK industrial flat panel applications.

Parameters are factual source fields retained for model review.

• Screen size is specified as 15 inches offering a balanced field of view for operator monitoring tasks.
• Touch capability is multi-touch allowing simultaneous input gestures for intuitive human-machine interaction workflows.
• Aspect ratio is fixed at 16:9 optimizing display area for widescreen graphics and video content playback.
• Interface type includes DisplayPort and DVI supporting digital signal transmission for high-quality visual output clarity.
• Mounting configuration suggests a built-in unit design intended for secure installation within industrial control enclosures.

• Visual inspection should confirm the neutral design aesthetic typical of Siemens industrial automation hardware components.
• Check rear panel connections to verify presence of USB ports and DisplayPort/DVI interface sockets.
• Assess physical condition noting dimensions of 63.00 x 51.00 x 24.00 cm for fit verification.
• Review label details to ensure part number 6AV7863-5MA10-2NA0 matches the submitted inquiry documentation exactly.

• Verify project requirements against the 1920x1080 pixel resolution to ensure adequate display clarity for operators.
• Confirm cable lengths do not exceed 100 meters when utilizing HDBaseT for remote display placement.
• Check power supply units to ensure stable 24 V DC output for reliable panel operation.
• Review spatial constraints to accommodate the 63.00 x 51.00 x 24.00 cm physical footprint securely.

• Source parameter review indicates active lifecycle status supporting long-term project planning and documentation needs.
• Technical summary confirms multi-touch functionality enhancing user interaction capabilities for complex industrial control scenarios.
• Model identification notes highlight the specific IFP1500 V2 variant tailored for SINUMERIK applications.
• Inquiry preparation steps emphasize verifying physical dimensions and power requirements before finalizing technical specifications.
