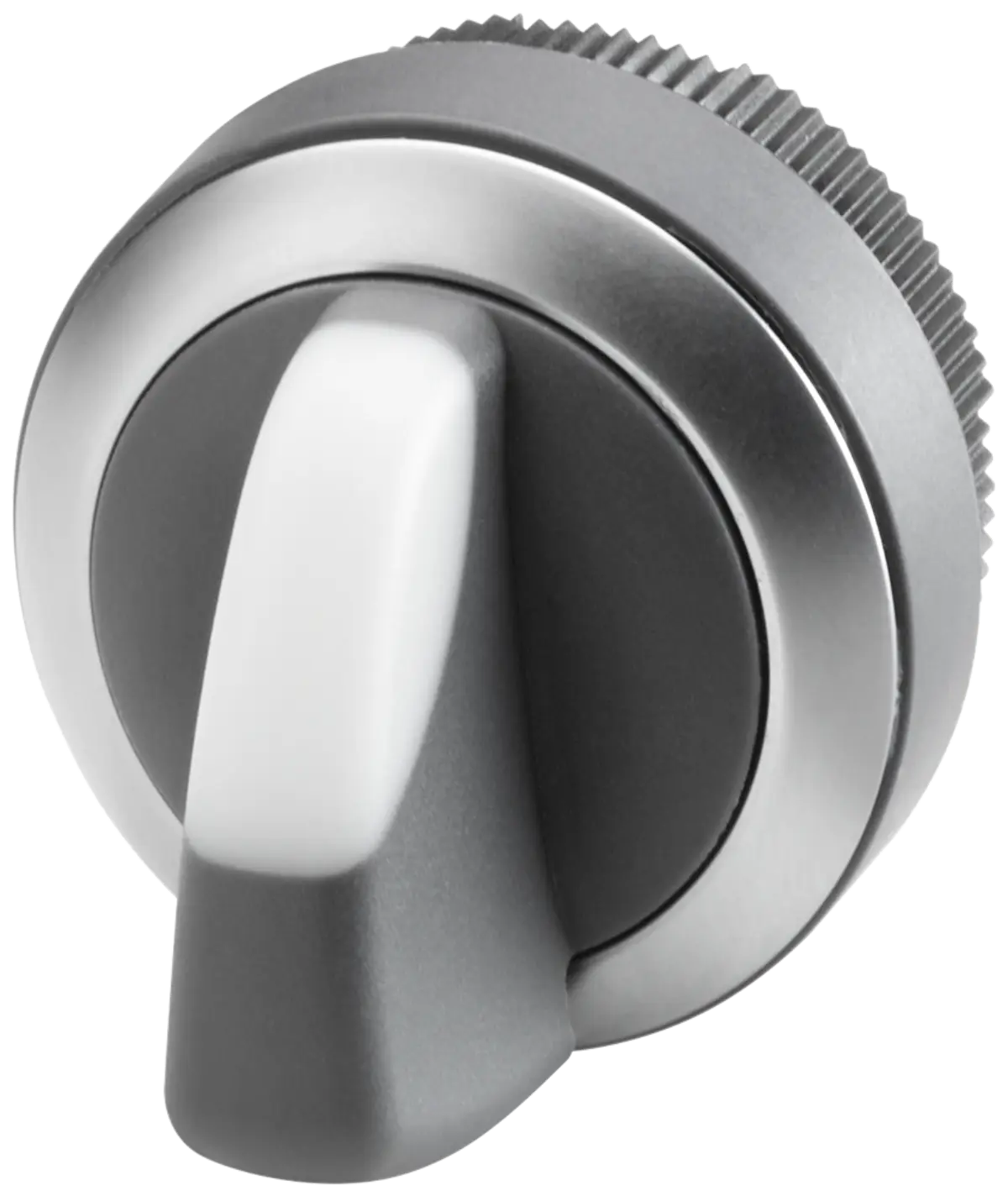

Siemens 6AV7674-1MD00-0AA0 Extension Unit Selector Switch

Part number

6AV7674-1MD00-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Extension Units and operator controls

Lifecycle

Active Product

Dimensions

15.7 x 13.1 x 2.9 cm

Net weight

0.027 Kg

Source category

Extension Units and operator controls

• Physical dimensions are listed as 15.7 centimeters in length, 13.1 centimeters in width, and 2.9 centimeters in height for spatial planning.
• The net weight of the component is recorded at 0.027 kilograms, indicating a lightweight construction listed for various mounting configurations.
• The switch mechanism operates with a latching function, maintaining position without continuous manual pressure during standard industrial operations.
• Electrical configuration includes two normally open contacts, facilitating specific signal transmission requirements within the connected control circuitry.
• An integrated white LED provides visual indication, enhancing visibility of the current switch position in diverse lighting conditions.
• The actuator is constructed from plastic material, offering durability and resistance to common environmental factors found in industrial settings.

• The part number 6AV7674-1MD00-0AA0 uniquely identifies this specific selector switch variant within the Siemens product portfolio.
• This model is classified under the broader category of extension units and operator controls for system integration purposes.
• The lifecycle status is documented as an active product, confirming its current recognition in manufacturer catalogs and databases.
• Source categorization places this item under protected devices and system components, highlighting its role in controlled environments.
