Siemens 6AV7674-1MA00-0AA0 Emergency Stop Mushroom Pushbutton

Part number

6AV7674-1MA00-0AA0

Brand

Siemens

Category

HMI Panels

Product type

Extension Units and operator controls

Lifecycle

Active Product

Dimensions

17.00 x 16.00 x 2.9 cm

Net weight

0.034 Kg

Source category

Extension Units and operator controls

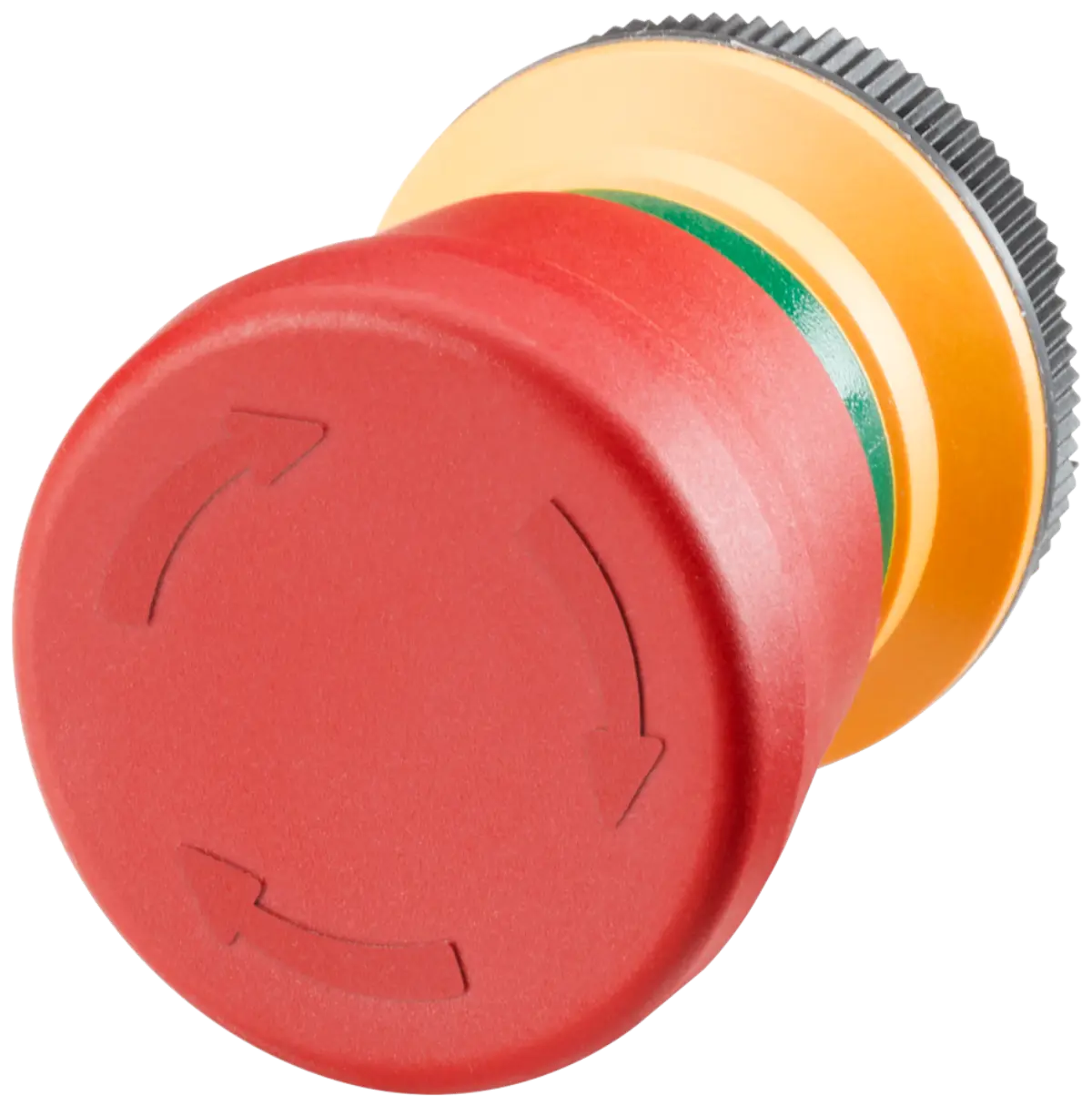

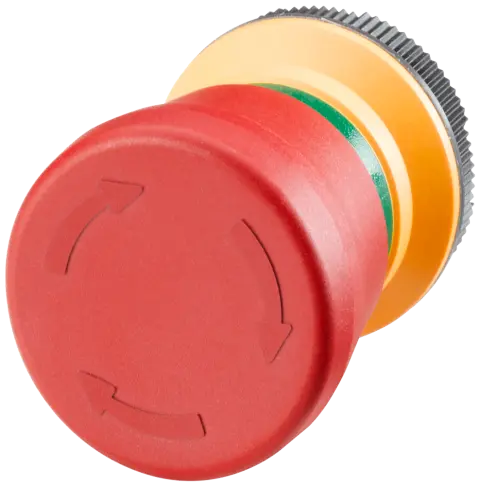

• The actuator is a round, red plastic mushroom pushbutton with a 22 mm diameter for clear visibility. Keep dimensions 17.00 x 16.00 x 2.9 cm and net weight 0.034 Kg unchanged while comparing project documents and product image evidence.
• It utilizes a latching mechanism that requires rotation to unlatch, ensuring intentional reset procedures are followed.
• Electrical configuration includes two normally closed (NC) contacts for standard safety circuit interruption protocols.
• The scope of supply encompasses one emergency stop button assembly along with necessary mounting hardware.
• A printed circuit board with a contact module is included to facilitate electrical connectivity and signal transmission.
• Physical dimensions are listed as 17.00 x 16.00 x 2.9 cm with a net weight of 0.034 Kg.

• The part number 6AV7674-1MA00-0AA0 identifies this specific variant within the Siemens HMI panel ecosystem.
• Lifecycle status is recorded as Active Product, indicating current production or support status in catalogs.
• Brand attribution is clearly assigned to Siemens, a recognized entity in industrial automation and control systems.
• Product classification aligns with extension units and operator controls, distinguishing it from primary control panels.
